Diagnosis Circuit

This circuit sends signals to the ECU requesting output of diagnostic trouble codes.

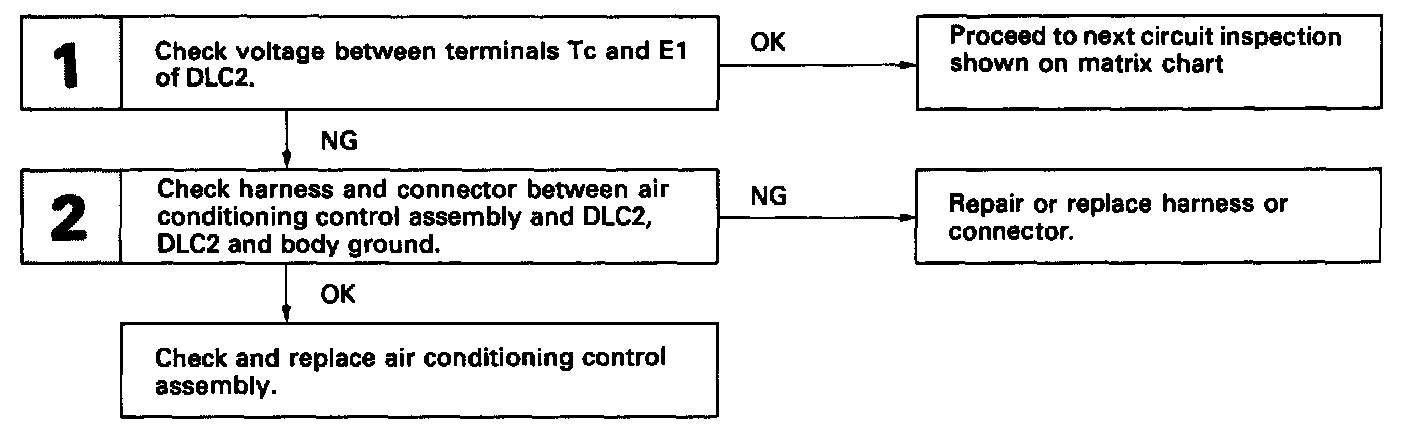

Diagnostic Chart:

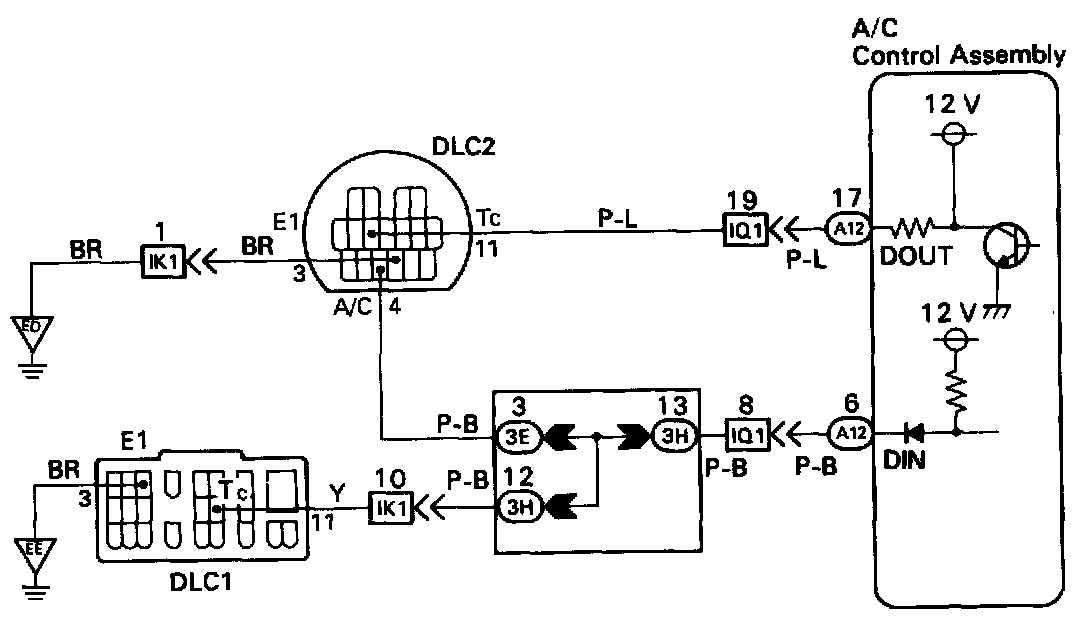

Wiring Diagram:






Inspection Procedure - Step 1:

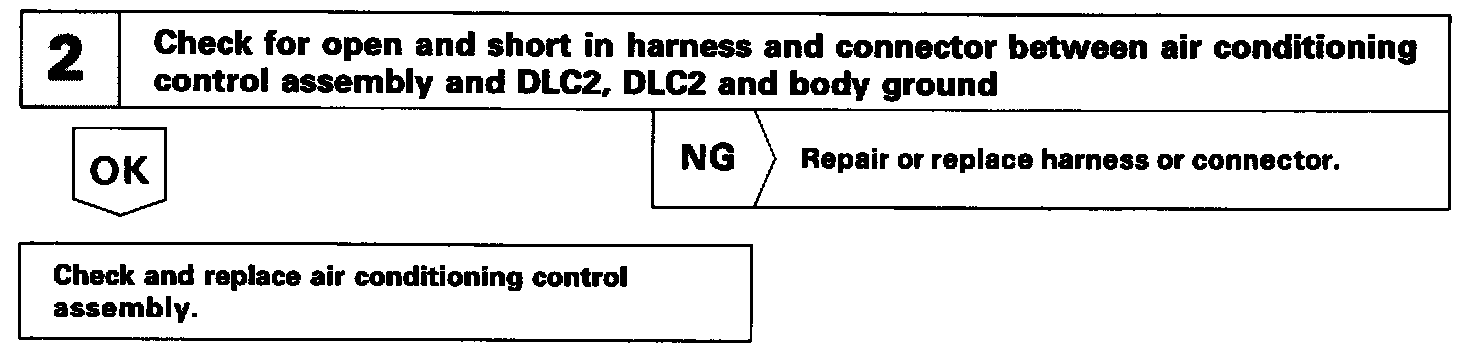

Step 2:
