Home >> Lexus >> 1994 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Connector Locations

Connector Locations

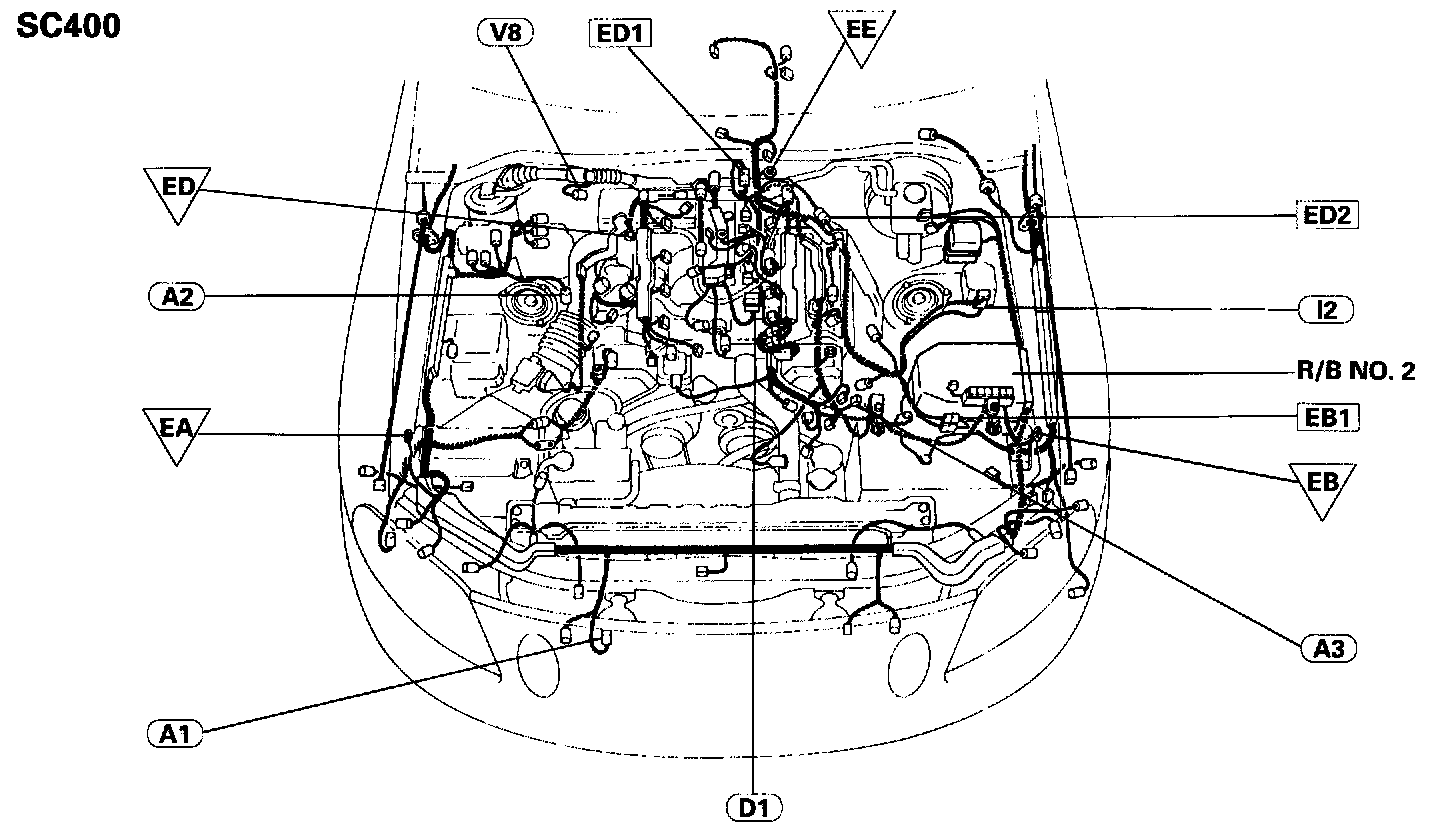

Engine Compartment

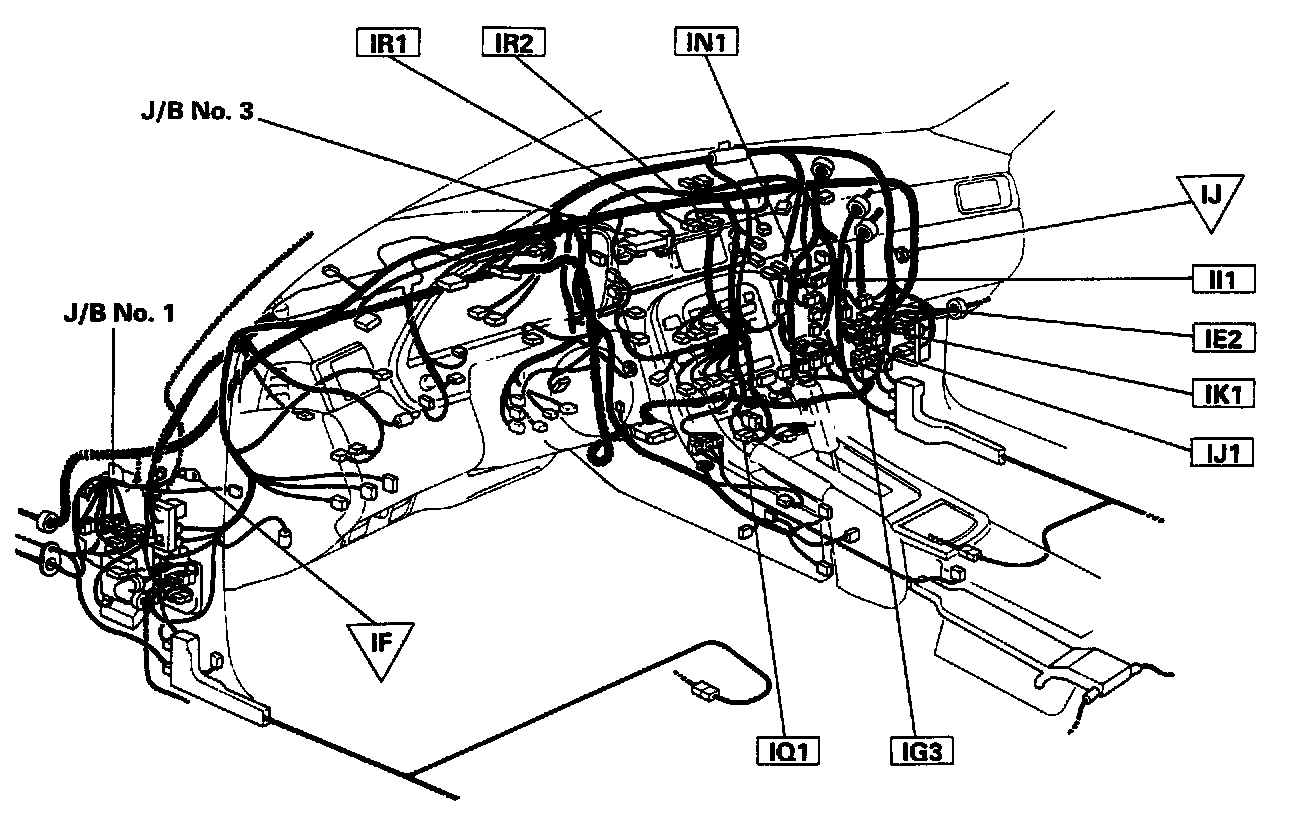

Passenger Compartment





Junction Box No.1





Junction Box No. 3
