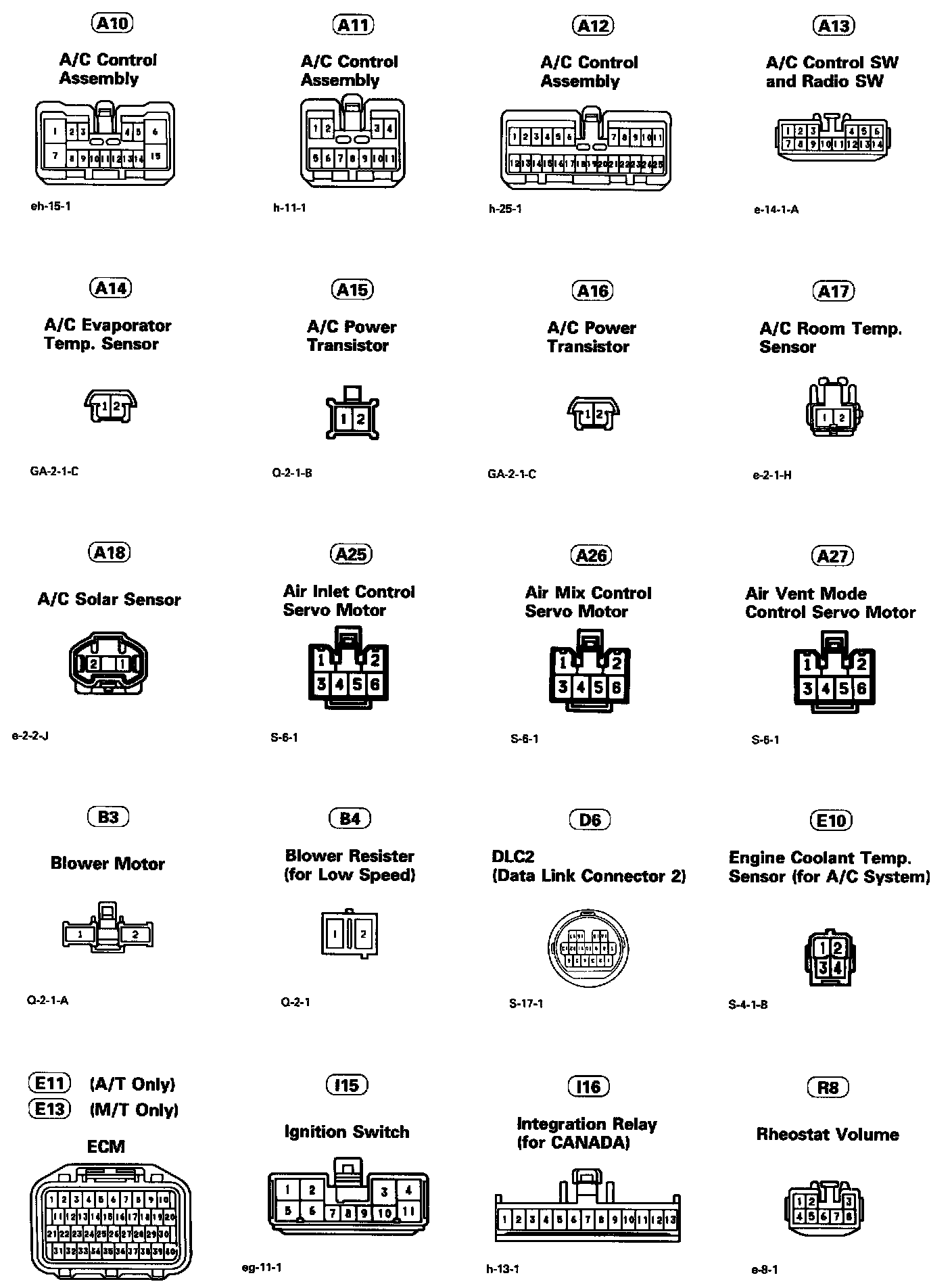

Automatic Air Conditioning

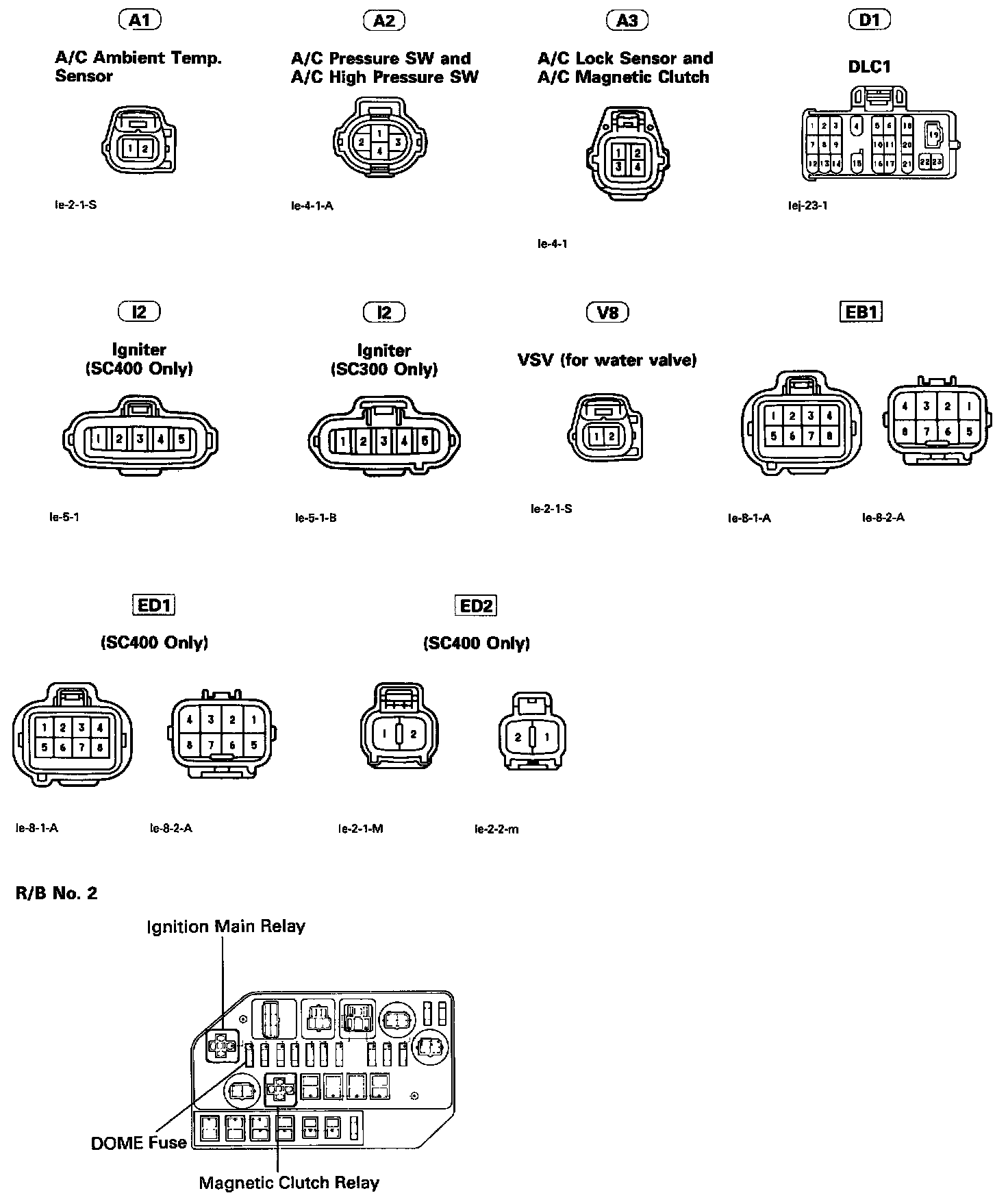

Engine Compartment

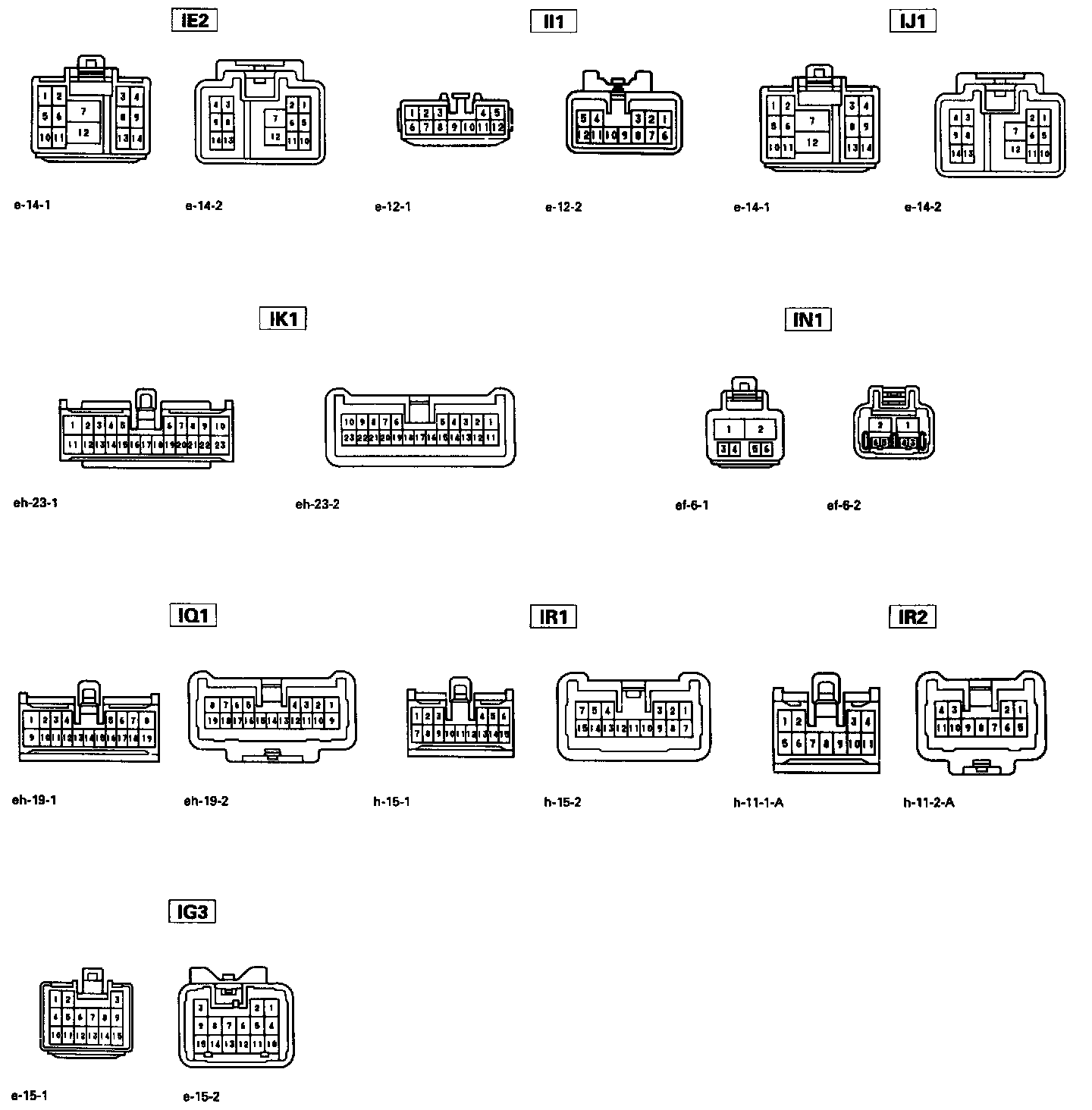

Passenger Compartment

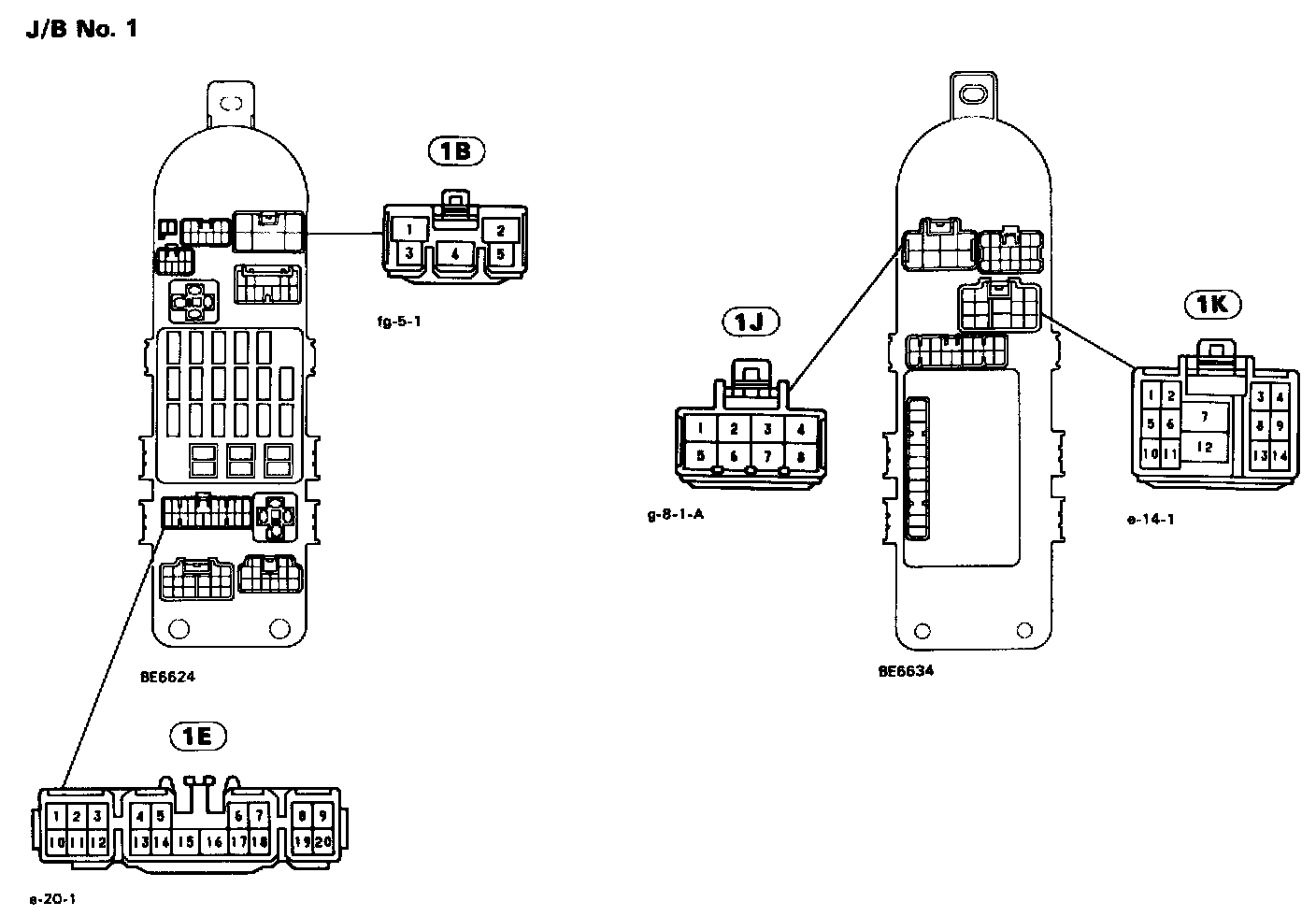

Junction Box No. 1

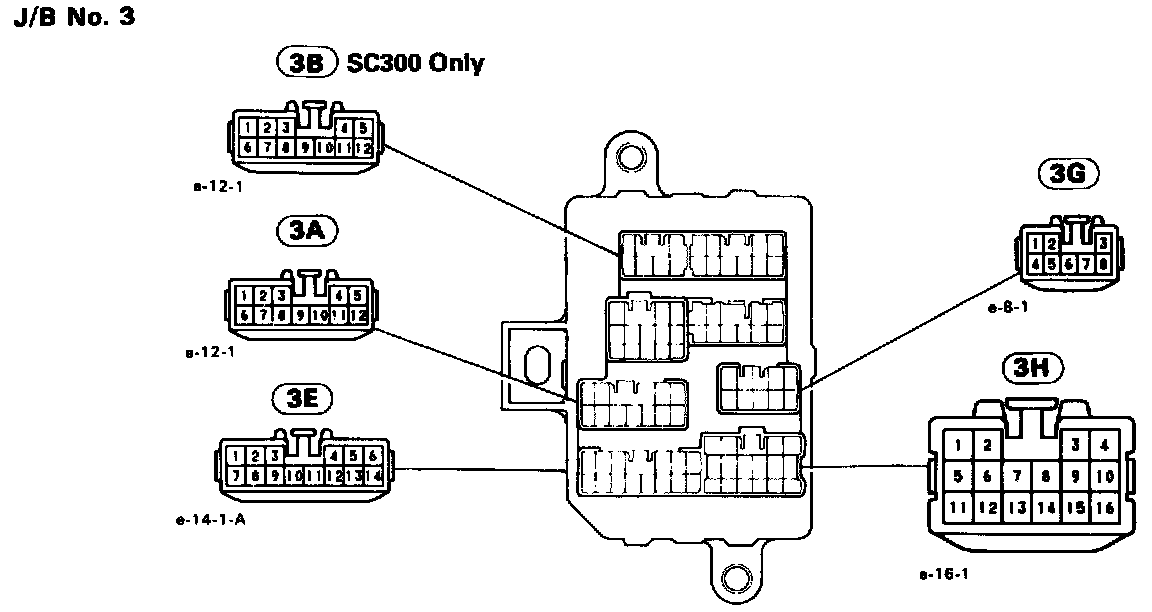

Junction Box No. 3
