Exterior - Paint & Refinish Codes

PAINT
PA94-001
FEBRUARY 4, 1994
Models: ALL MODELS

Title:
1994 PAINT AND REFINISH CODES





1994 PAINT AND REFINISH CODES

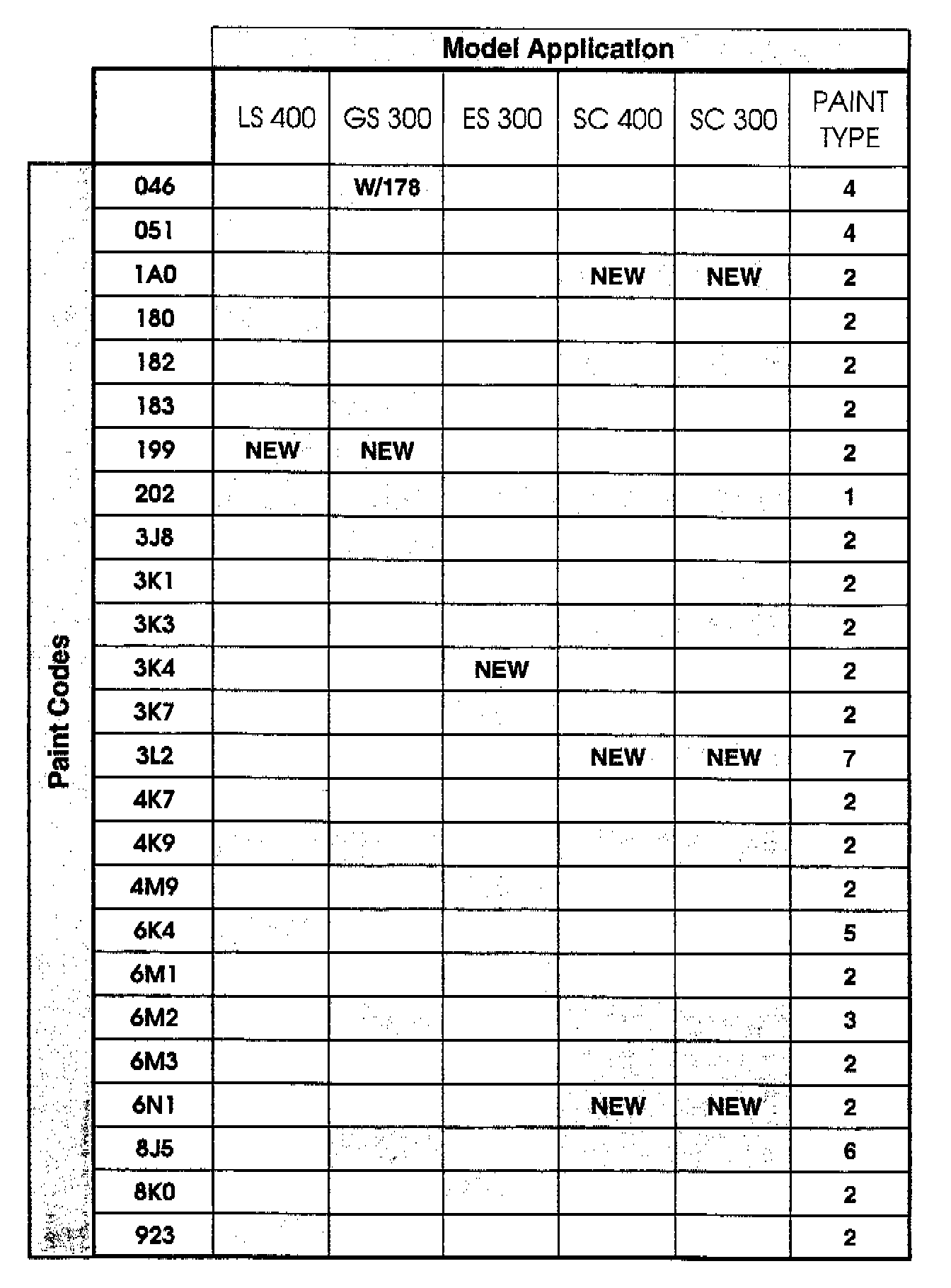

1994 PAINT CODES, APPLICATIONS AND PAINT TYPES

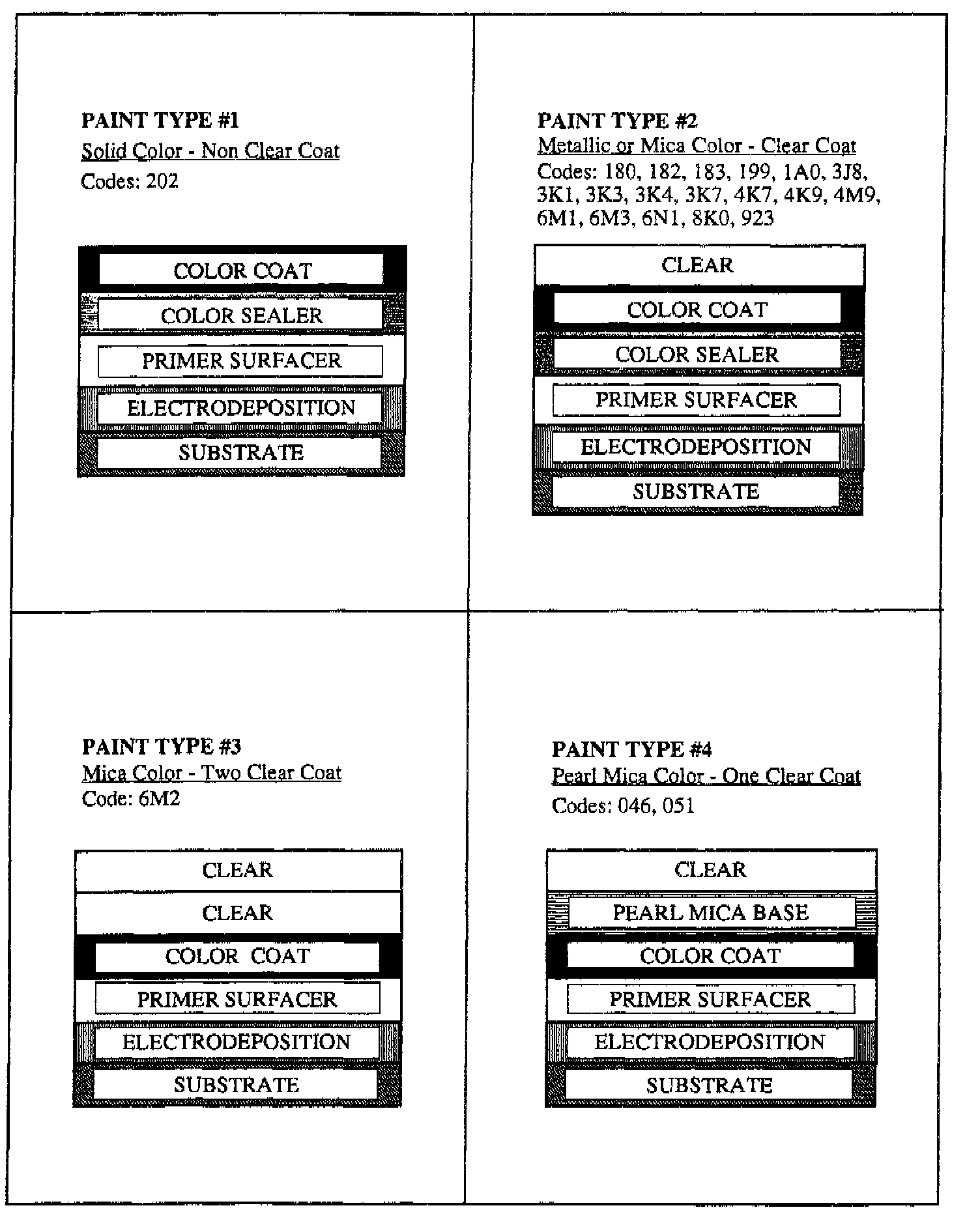

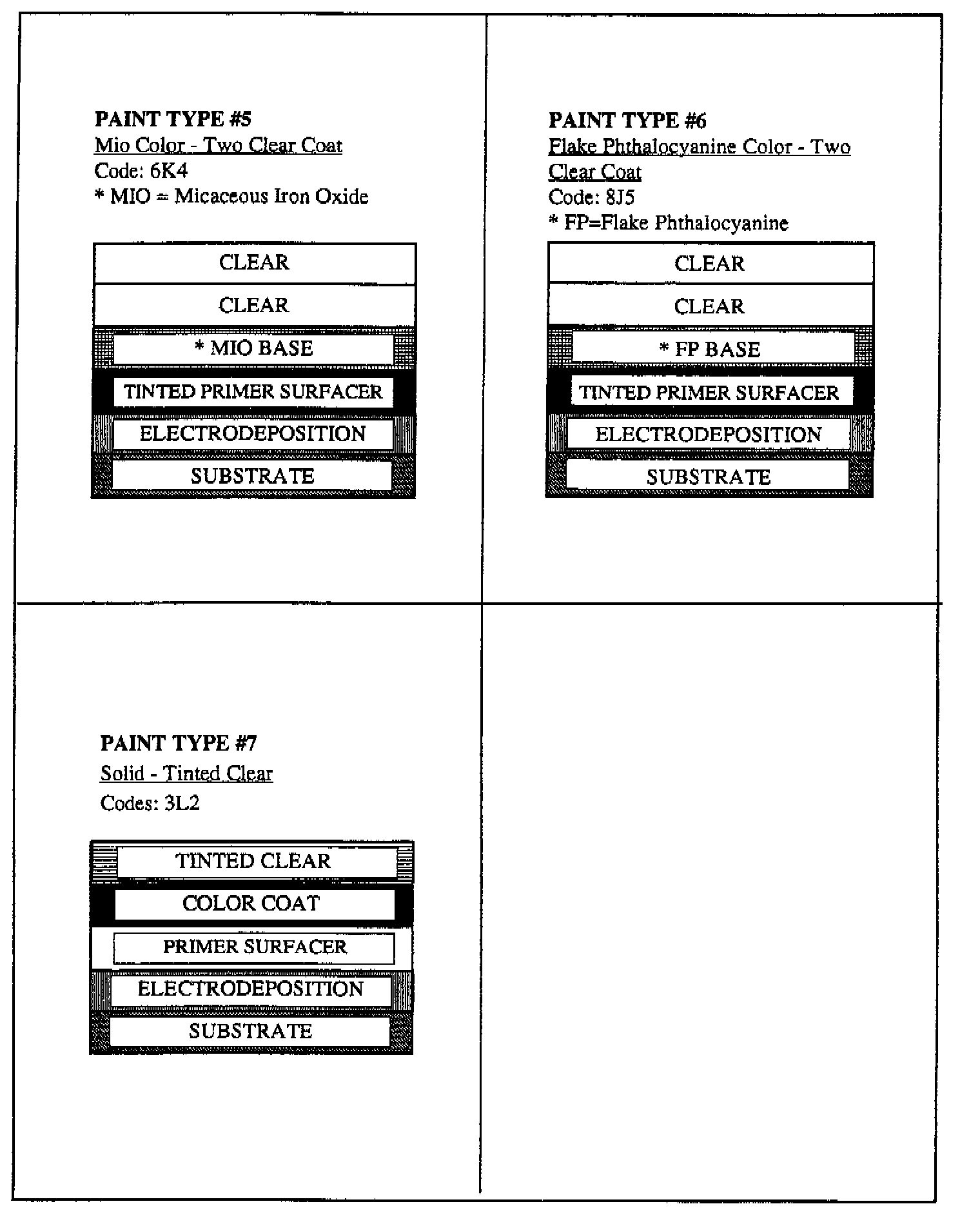

PAINT FILM CROSS SECTIONS

��:

�m�:

y6�:

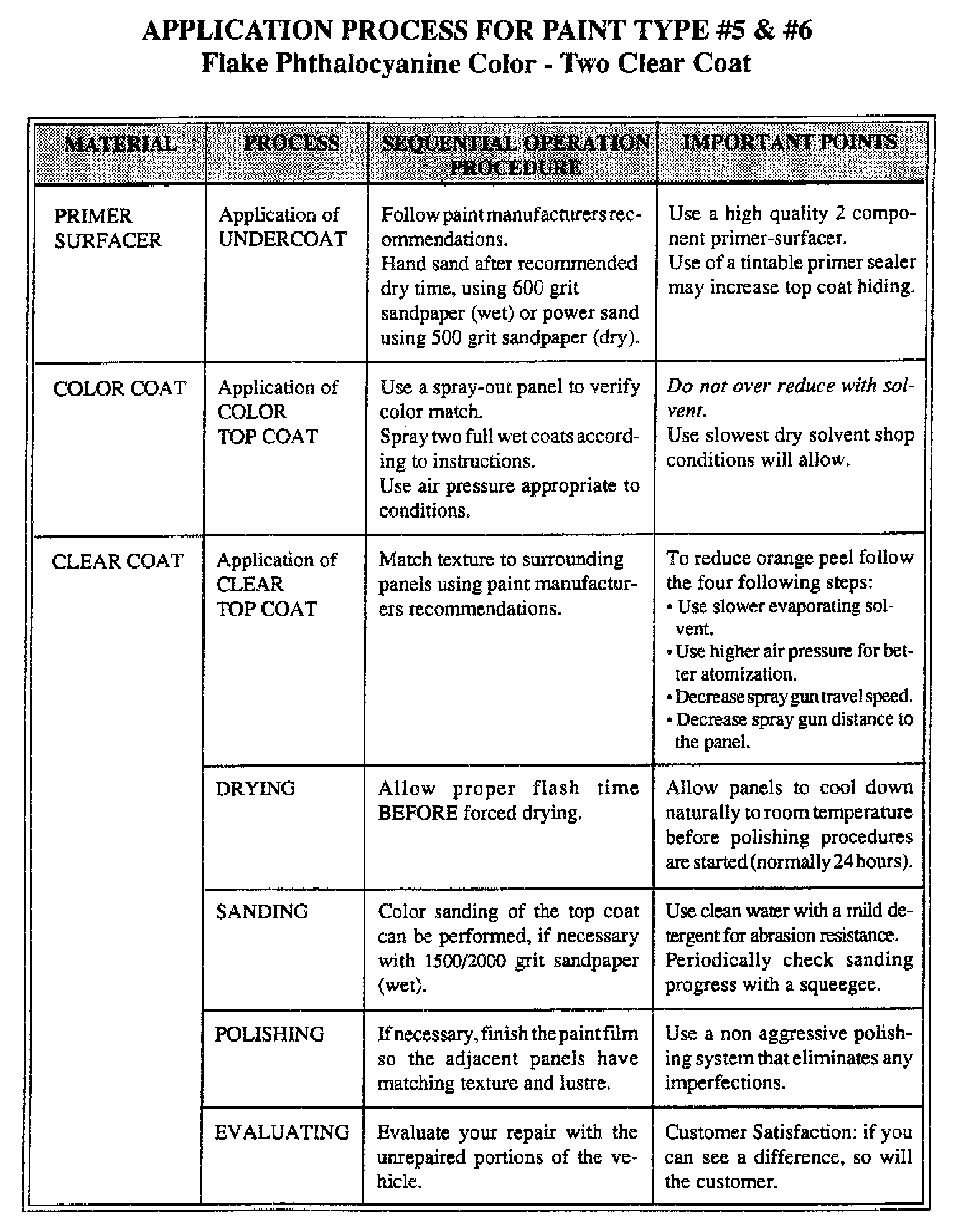

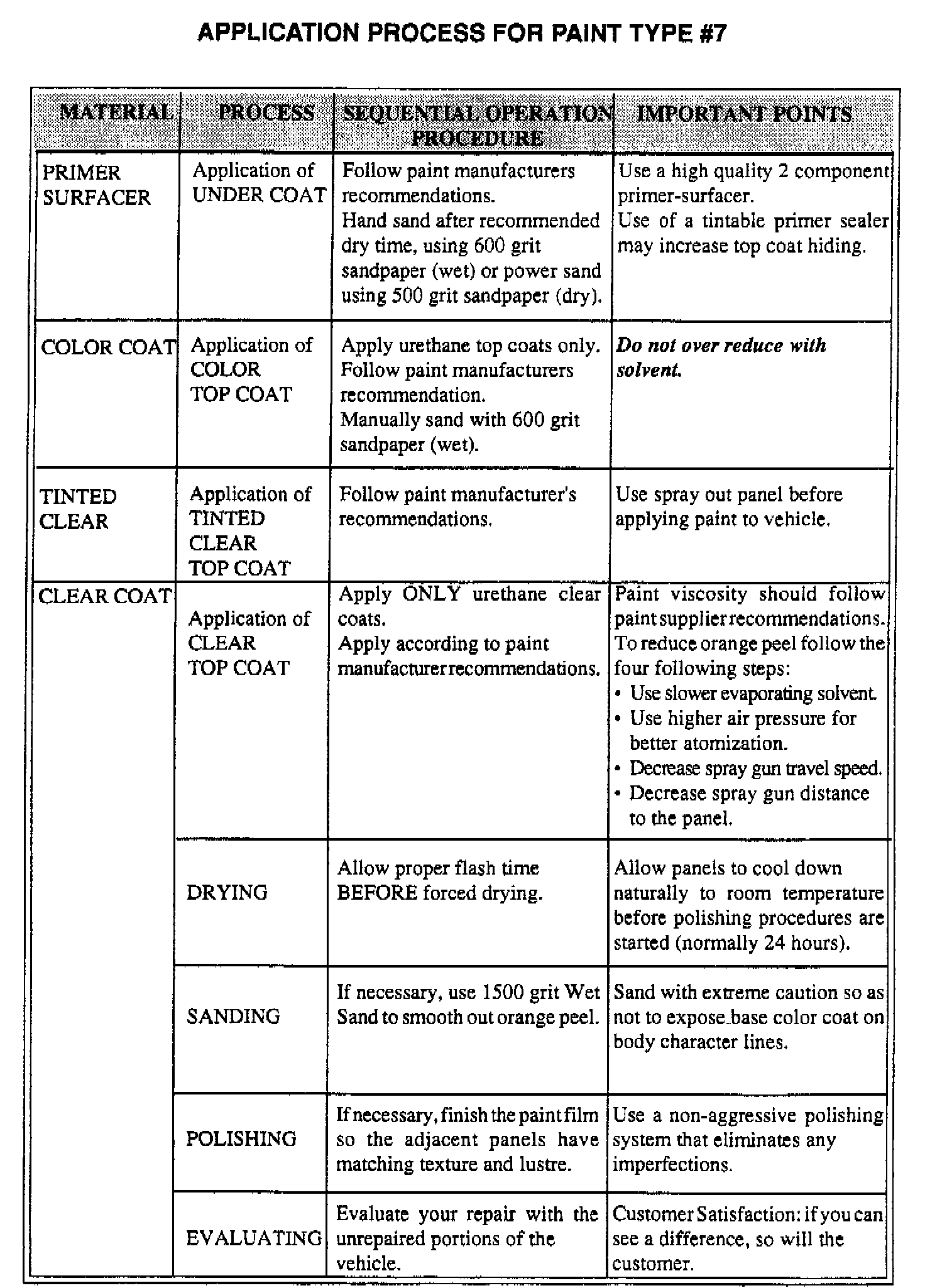

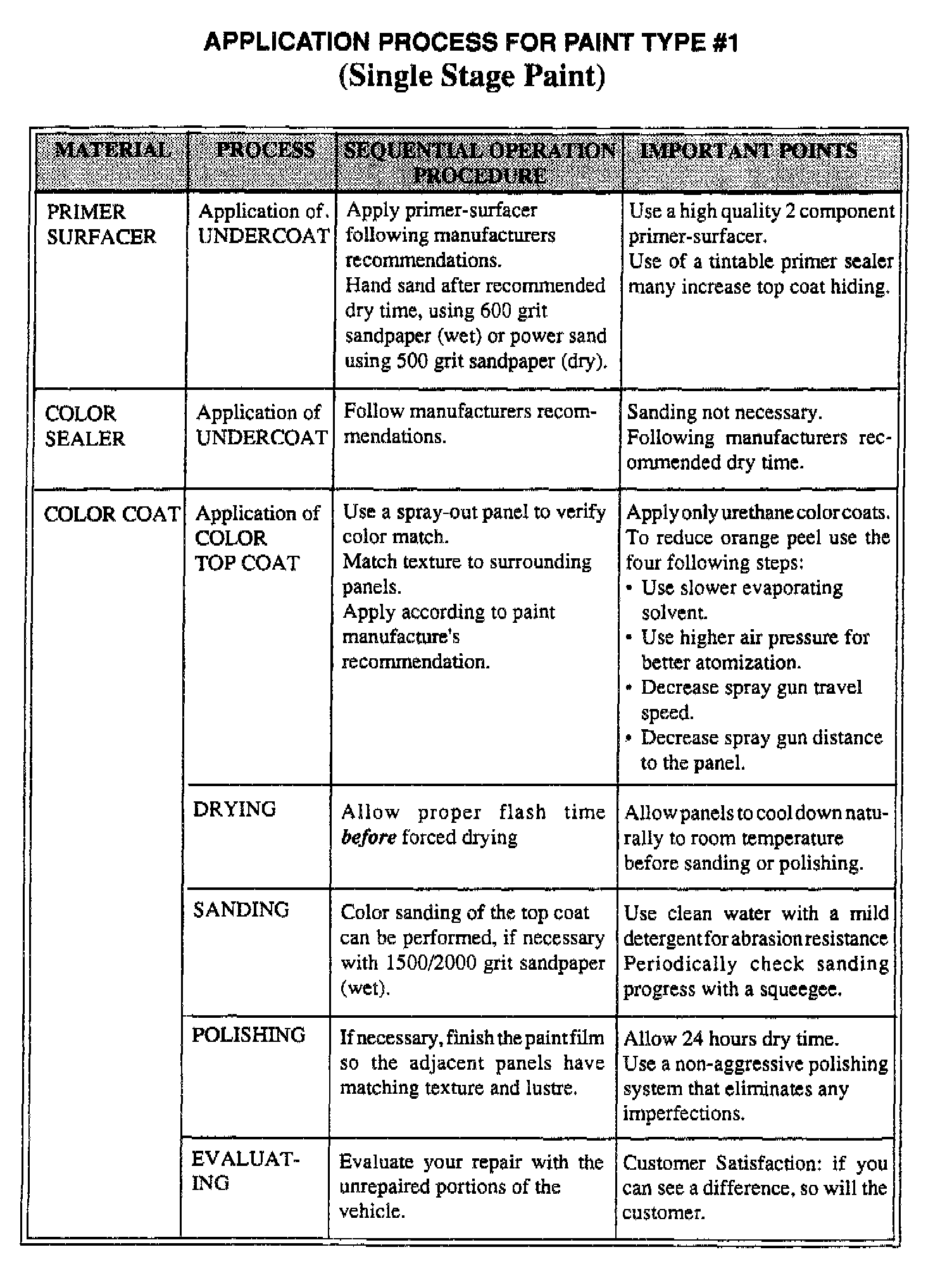

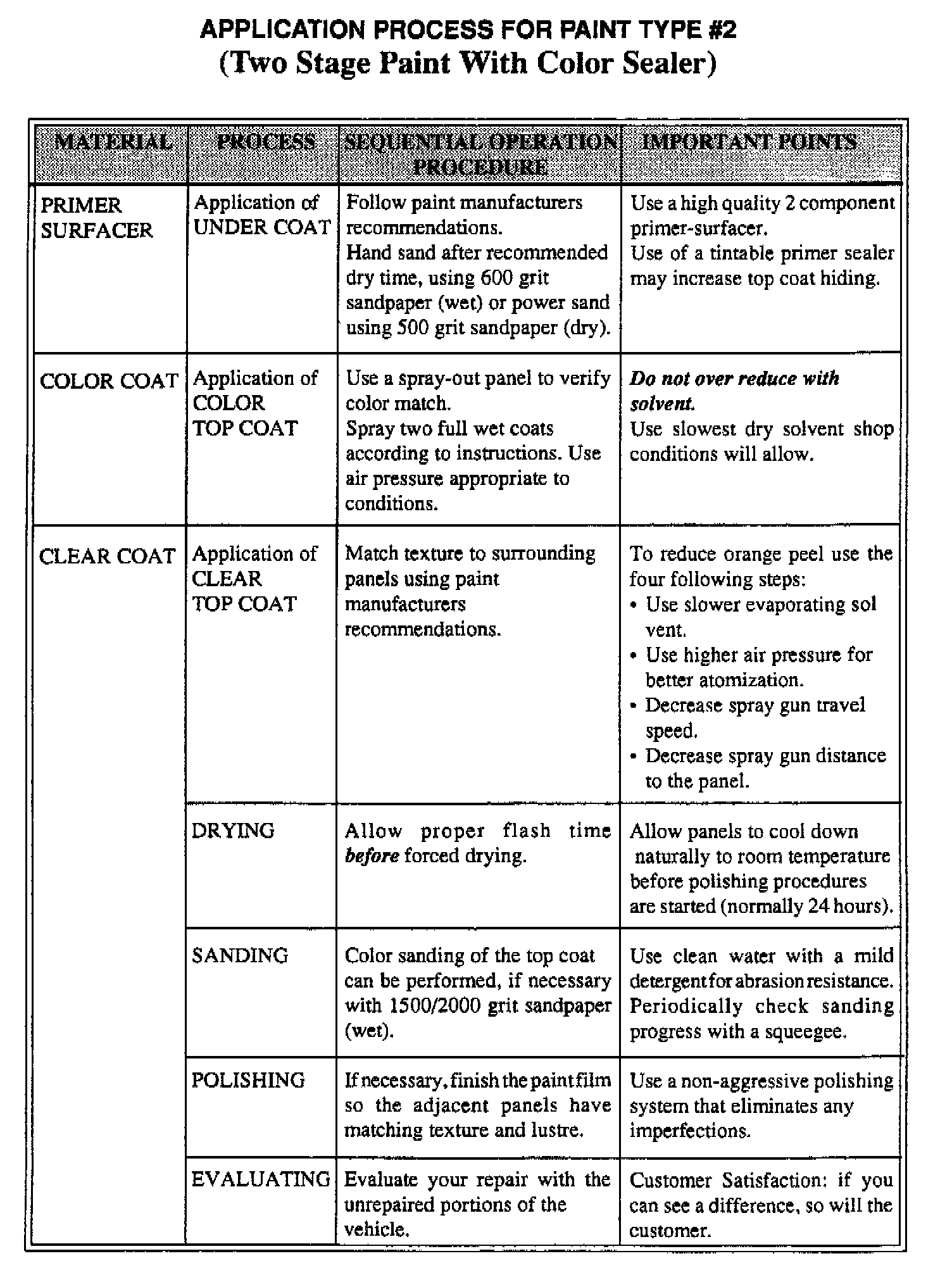

APPLICATION PROCESS FOR PAINT TYPE # 1 - # 7

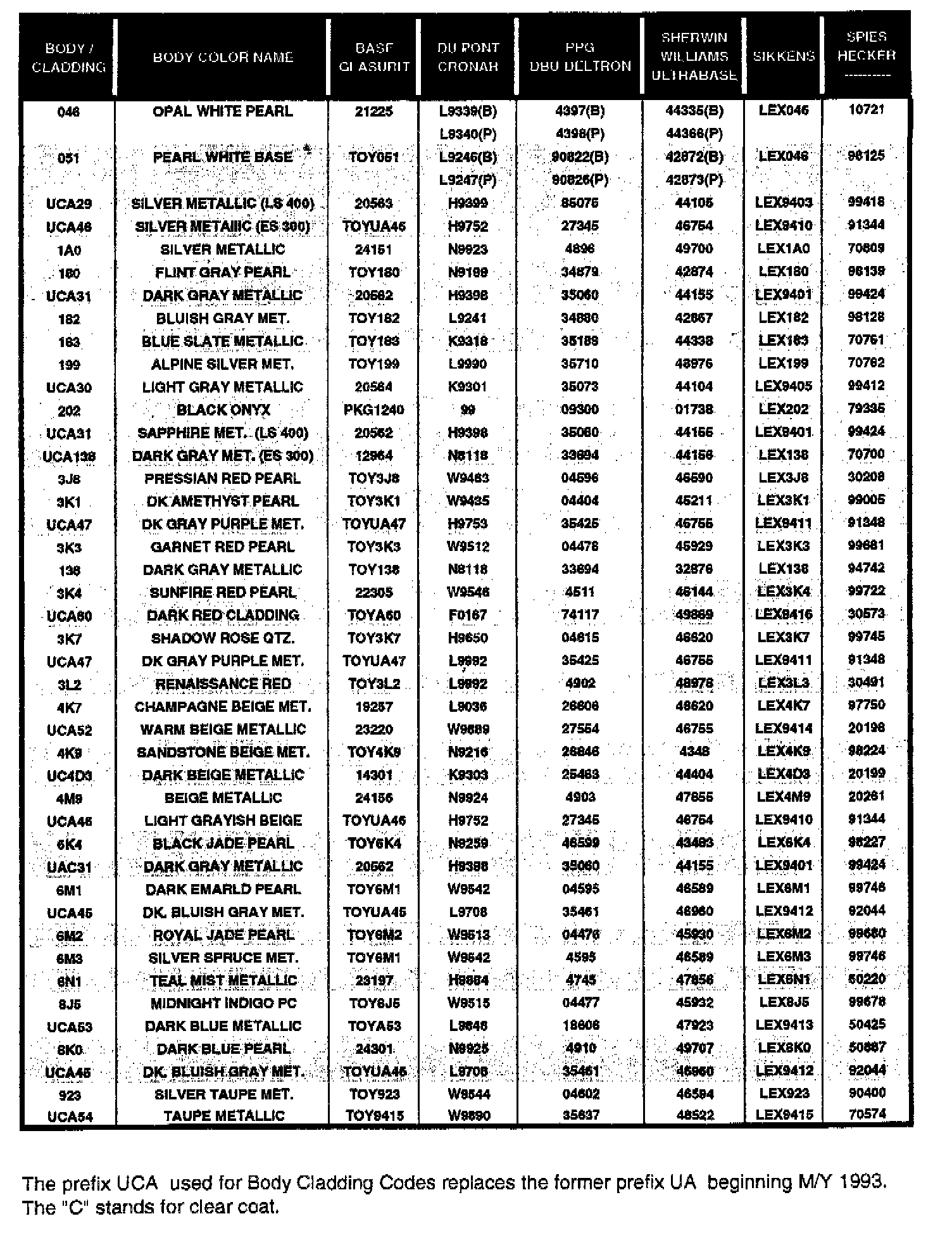

The above is a listing of 1994 Lexus paint codes and corresponding refinish formula codes for 7 (seven) refinish paint companies -- BASF, DuPont, Herberts Standox *, PPG Industries, Sherwin Williams, Spies Hecker, Sikkens (Paint and refinish formula codes are located in this bulletin).

HERBERTS STANDOX PAINT AND REFINISH FORMULA CODES:

* Herberts Standox uses the Lexus color code number as their paint code identification number.
Example: The Herberts Standox paint code number for Lexus color code 202 (Black Onyx) is 202.














NOTE:

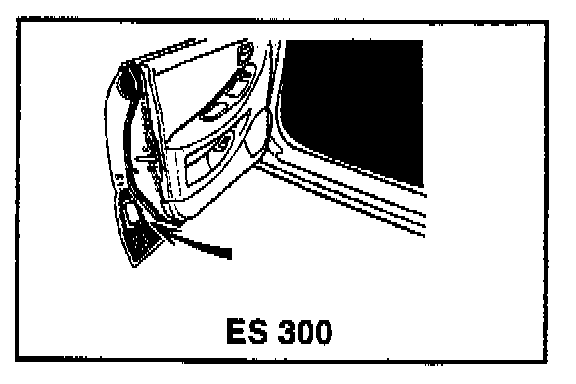

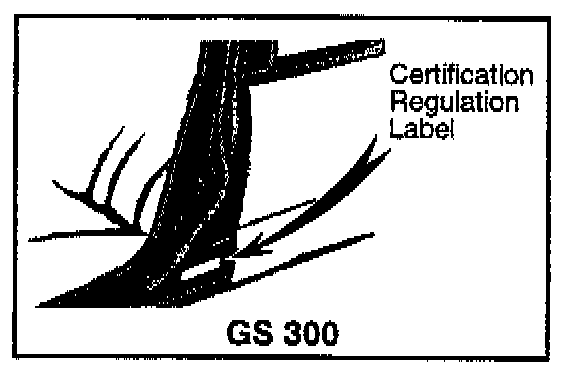

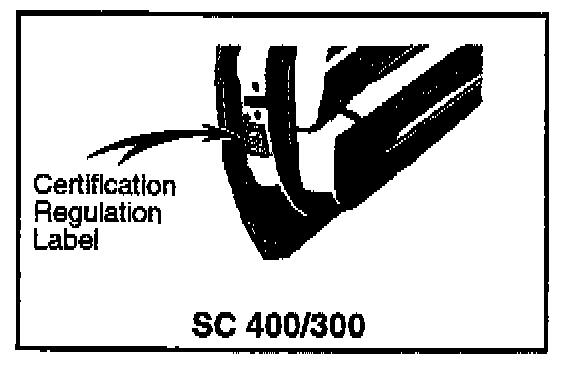

The body color code is indicated on the Certification Label which is located in the left door area as shown.

Contact Your Local Paint Representative For The Actual Paint Mixing Formulas Or For Additional Assistance In Color Matching.

Please Provide A Copy Of This Information To Your Lexus Collision Repair Center.
