DTC 42







CIRCUIT DESCRIPTION

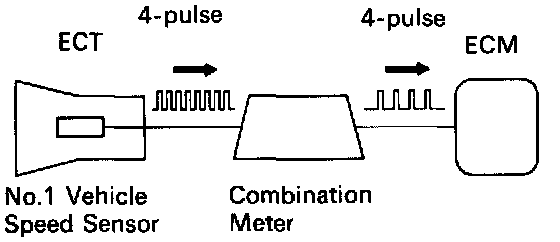

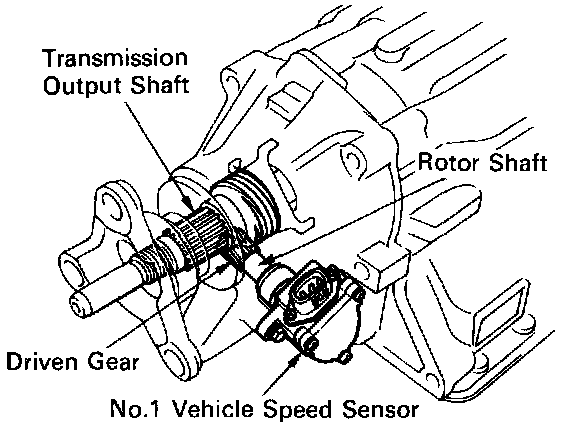

The No. 1 vehicle speed sensor outputs a 4-pulse signal for for every revolution of the transmission output shaft. After this signal is converted in to a more precise rectangular wave form by the wave form shaping circuit inside the combination meter, it is then transmitted to the Engine Control Module (ECM).

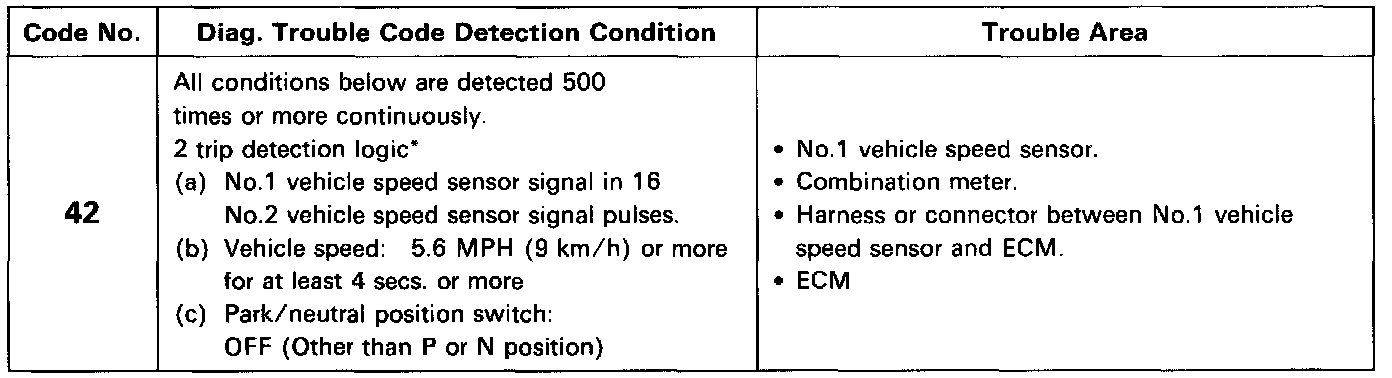

DETECTING CONDITION




REFERENCE

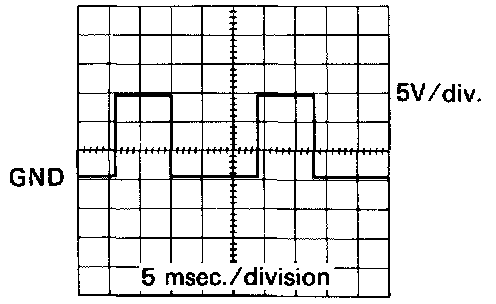

- Waveform between terminals SPD and E1 when vehicle speed is approx. 37 MPH (60 km/h).

HINT: The greater the vehicle speed, the greater the number of SPD signals produced.

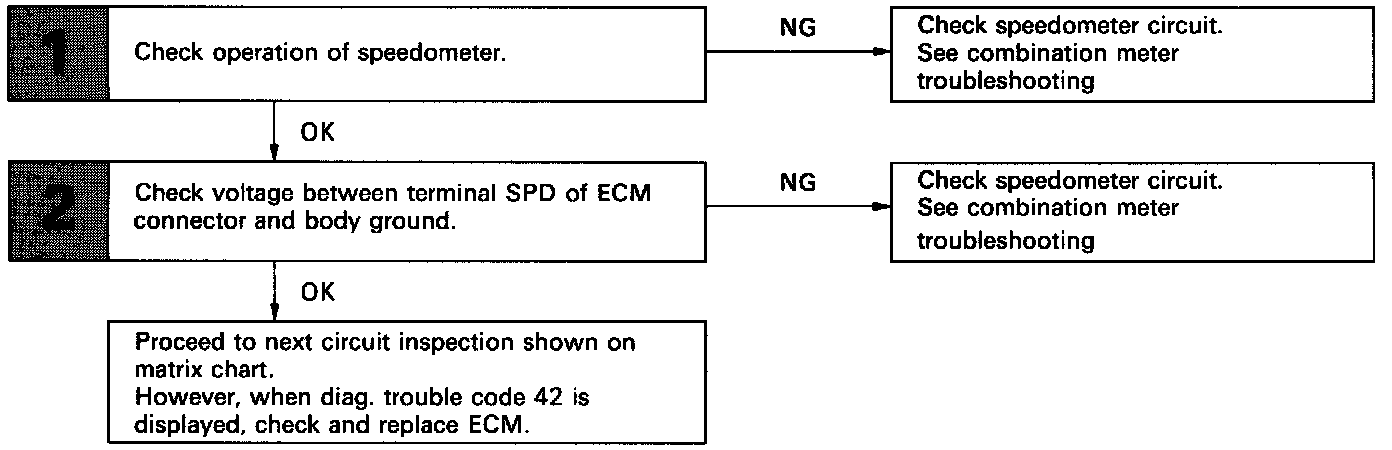

DIAGNOSTIC CHART




WIRING DIAGRAM

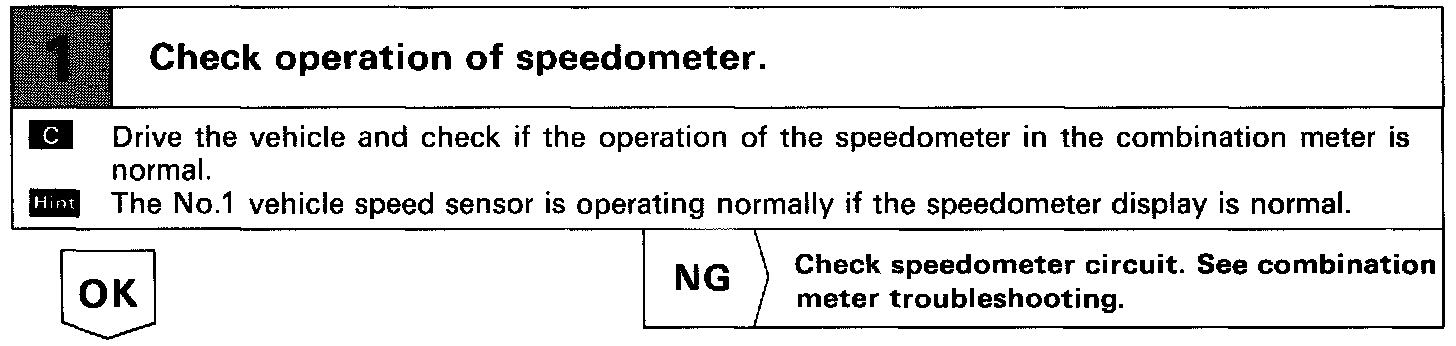

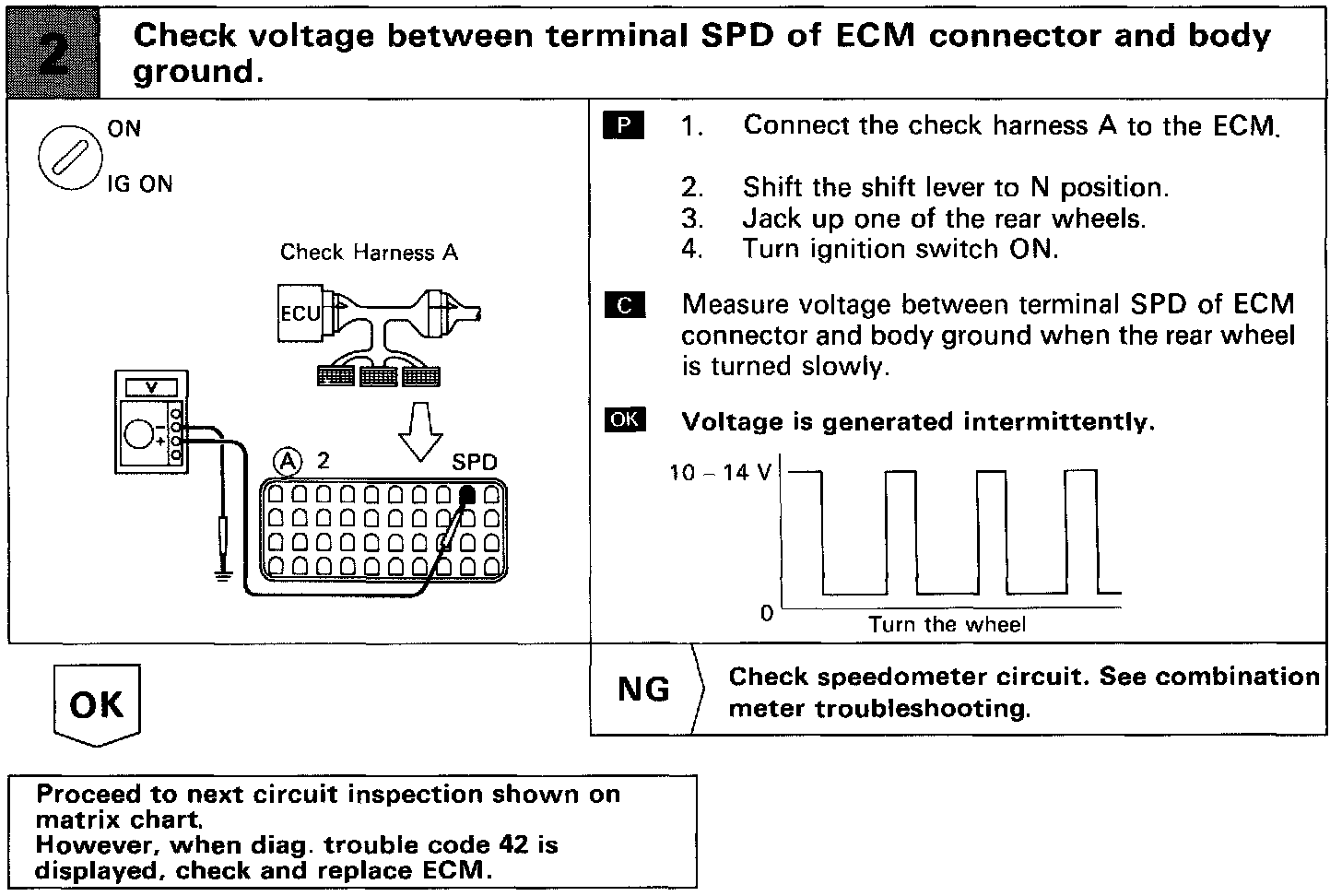

INSPECTION PROCEDURE
