Inspection Procedure

INSPECTION PROCEDURE

1. Check output condition of Diagnostic Trouble Code 43.





- Turn Ignition Switch OFF.
- Connect terminals TE2 and E1 of DLC2.
- Turn ignition switch ON (Don't start the engine).
- Connect terminals TE1 and E1 of DLC2.

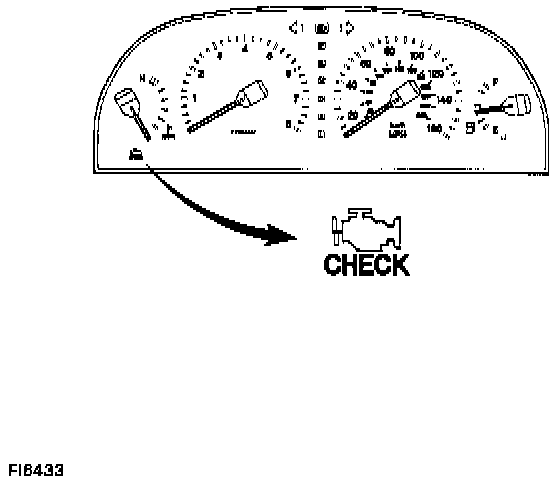

- Check that code 43 is output by the Malfunction Indicator Lamp.
- Start the engine.
- Check that code 43 disappears.
- If OK proceed to the next circuit inspection shown in DIAGNOSIS BY SYMPTOM.
- If not OK proceed to step 2.
2. Check for open in harness and connector between Engine Control Module and Starter Relay
- If OK check and replace Engine Control Module.
- If not OK repair or replace harness or connector.
