TC Terminal Circuit

Tc TERMINAL CIRCUIT

CIRCUIT DESCRIPTION
By connecting terminals Tc and E1 of the DLC1 or DLC2, the diagnostic codes stored in the ECU memory can be displayed by the height control indicator light.

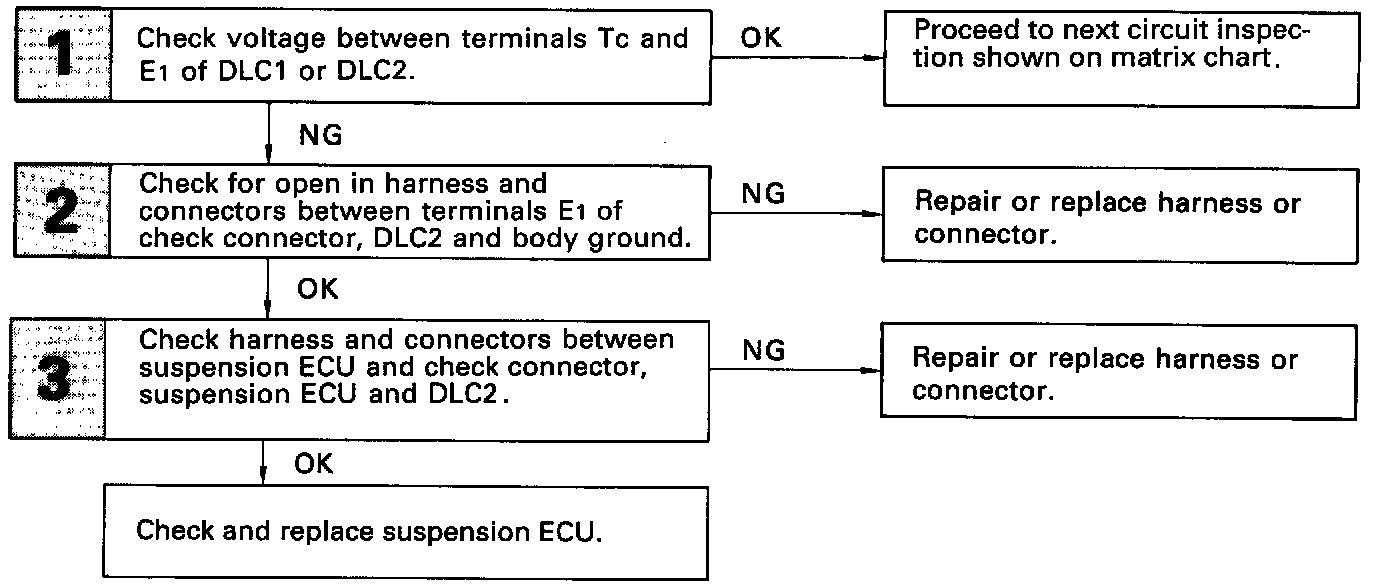

DIAGNOSTIC CHART

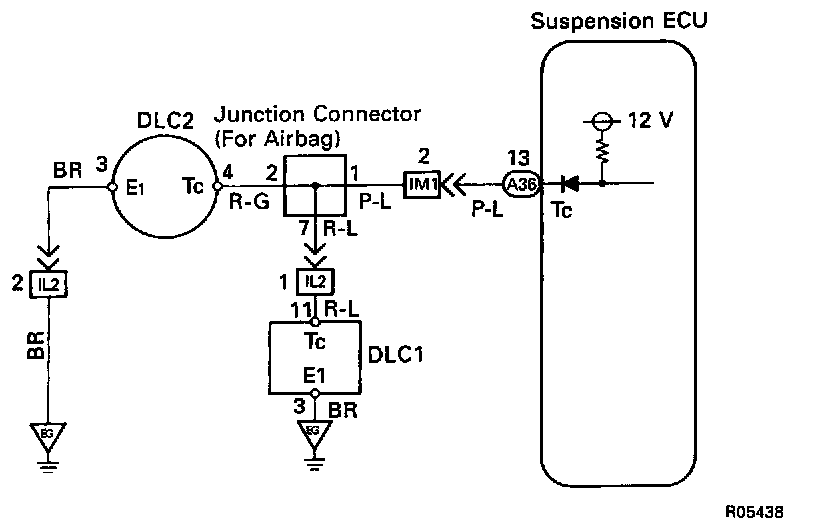

WIRING DIAGRAM

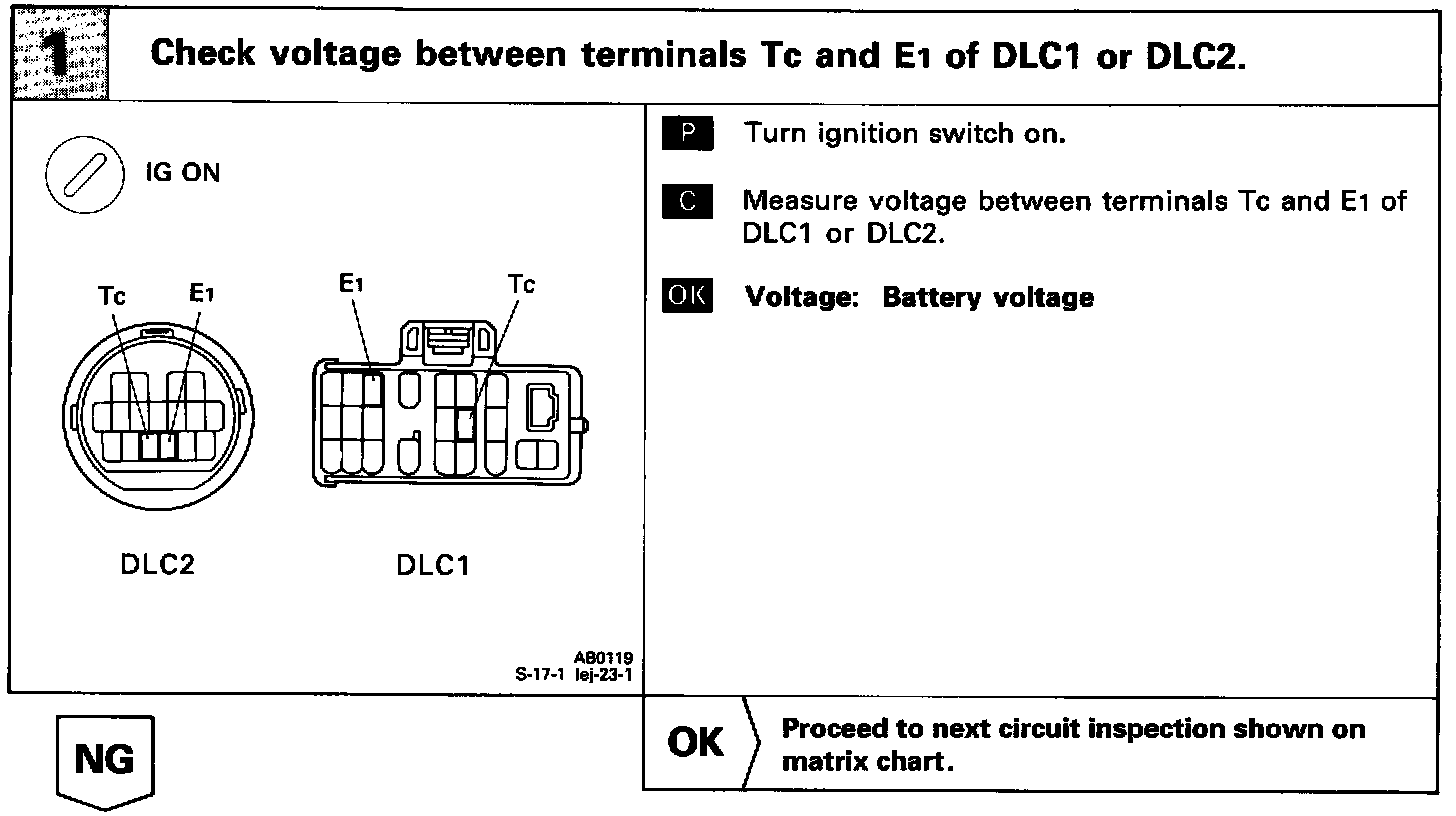

Step 1:

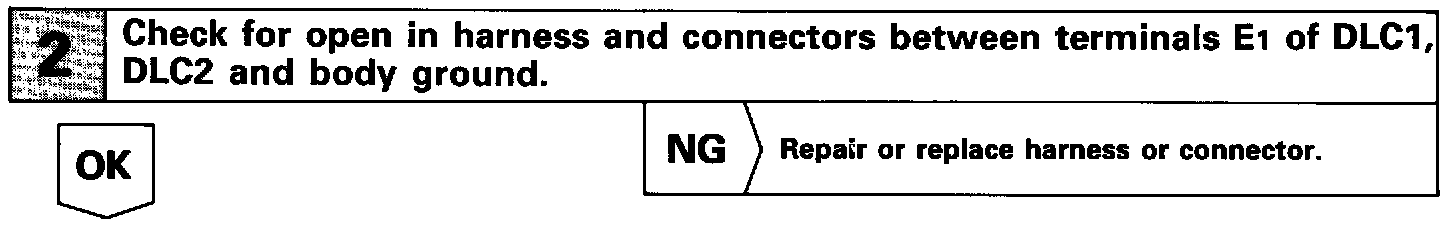

Step 2:

Step 3:

INSPECTION PROCEDURE
