On-Vehicle Inspection

FUNCTION INSPECTION

OPERATE HEIGHT CONTROL SWITCH AND CHECK CHANGE OF VEHICLE HEIGHT

(a) Check the tires for the proper inflation pressure.
(b) Check the vehicle height.

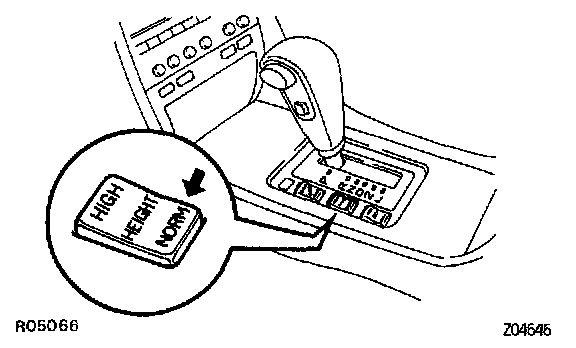

(c) Start the engine and change the height control switch from the NORM position to the HIGH position.

Check the time until the height adjustment is completed and the amount of change in the vehicle height.

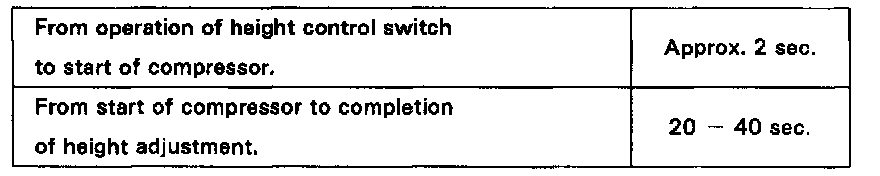

Adjustment time:

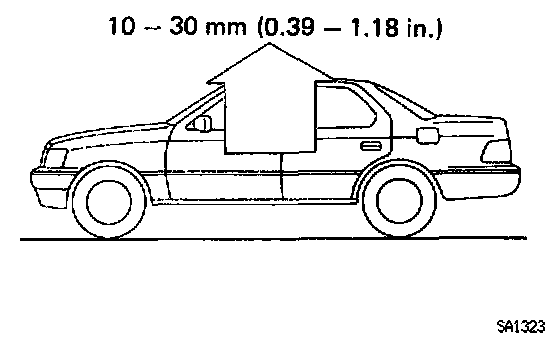

Amount of change in vehicle height: 10 - 30 mm (0.39-1.18 in.)

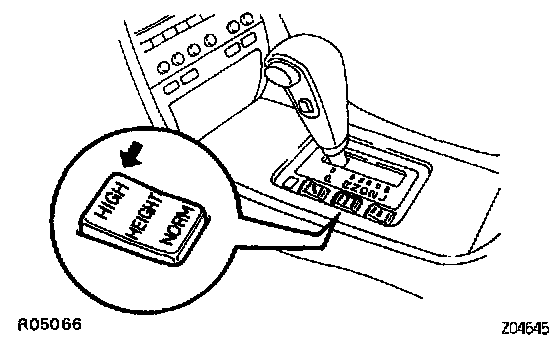

(d) With the vehicle in the HIGH height adjustment. start the engine and change the height control switch from the HIGH position to the NORM position. Check the time until the height adjustment is completed and the amount of change in the vehicle height.

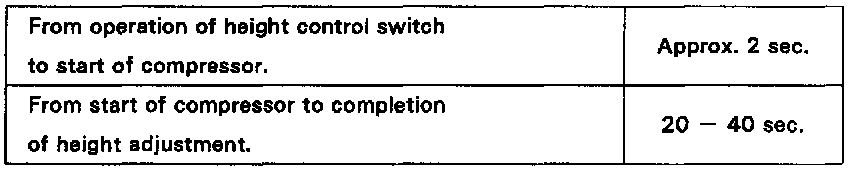

Adjustment time:

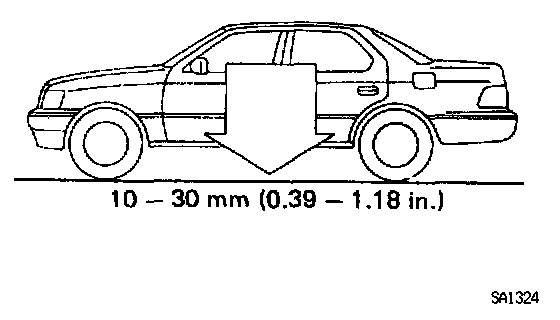

Amount of change in vehicle height: 10 - 30 mm (0.39-1.18 in.)
