Power Source Chart

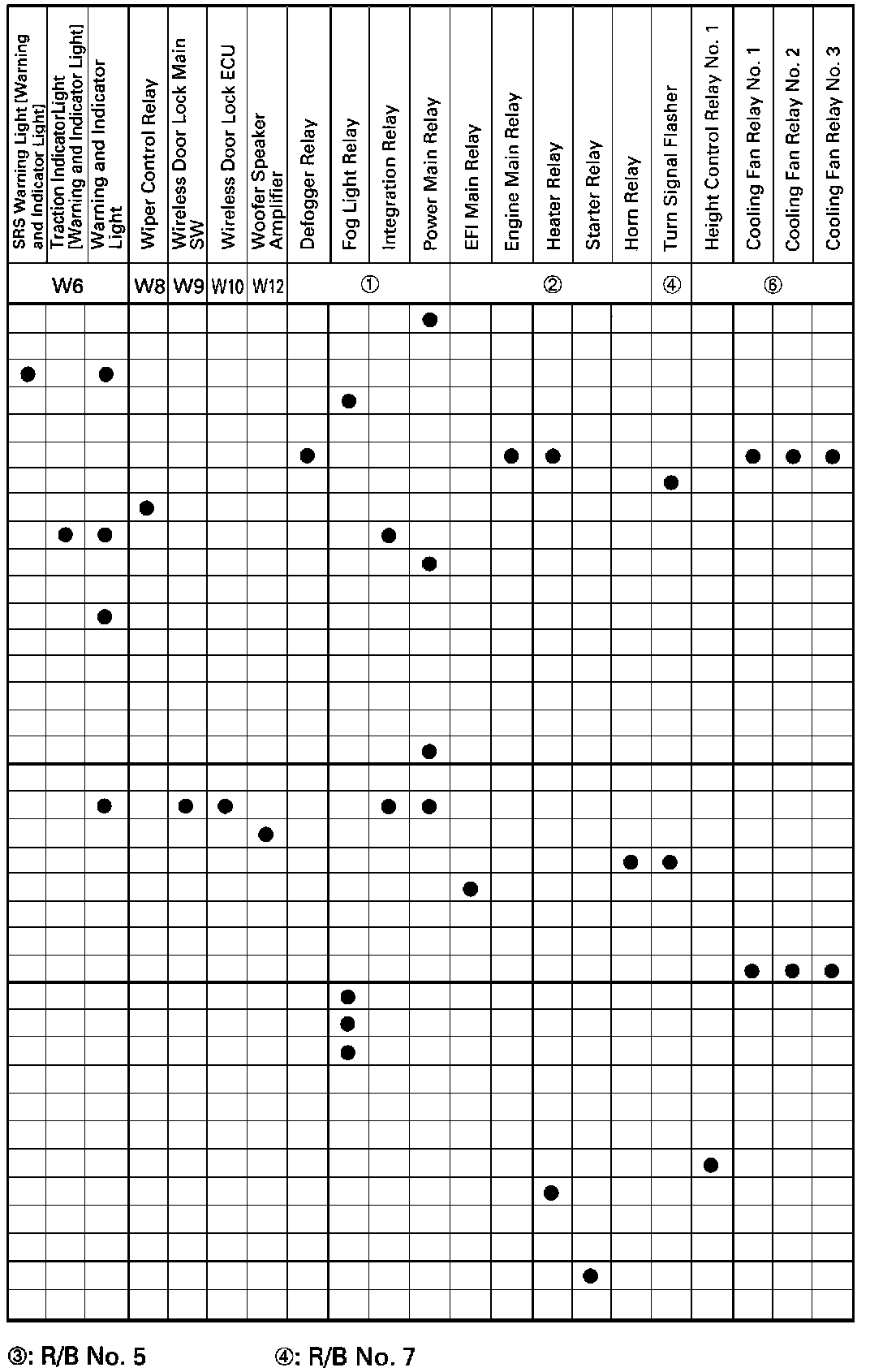

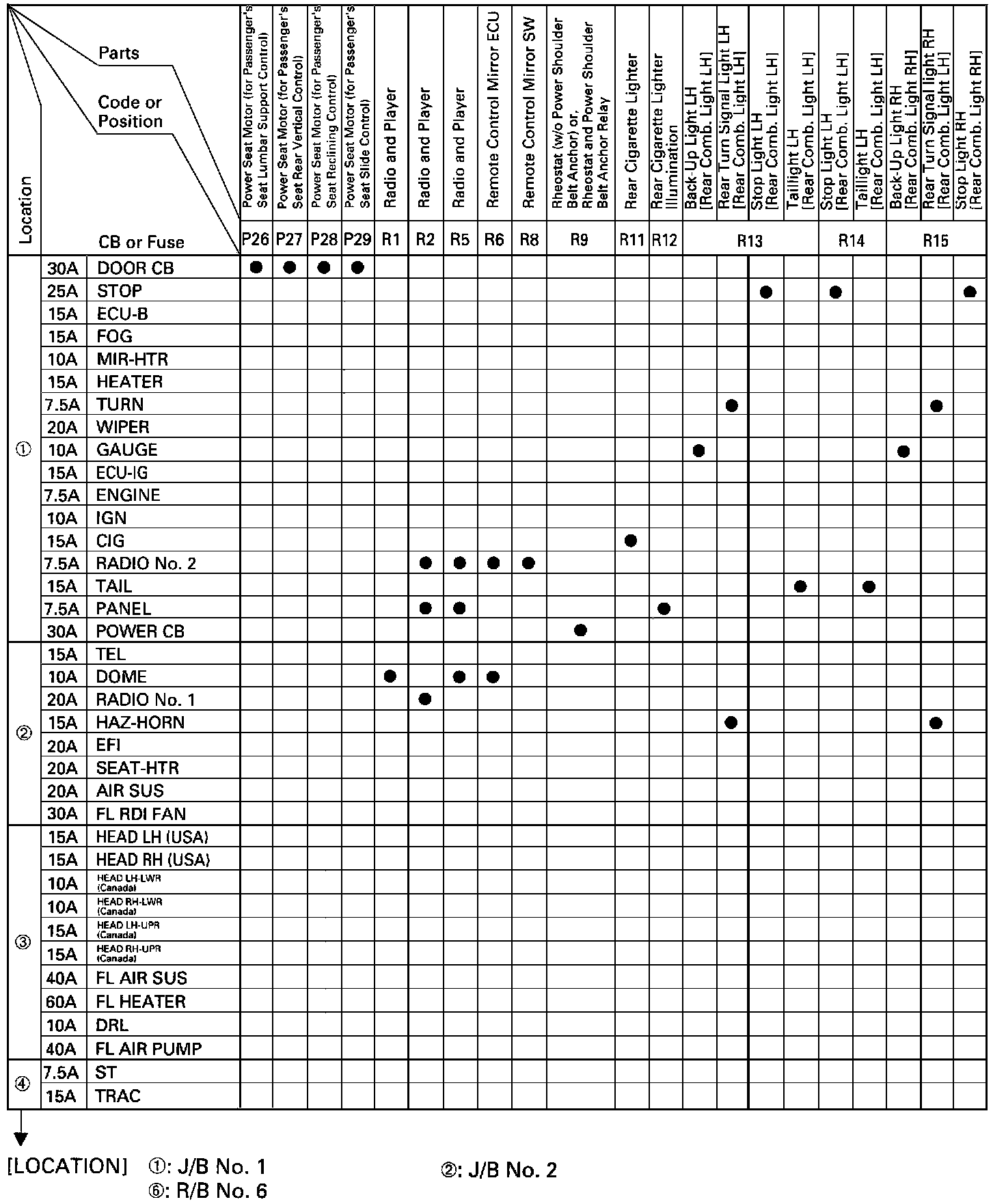

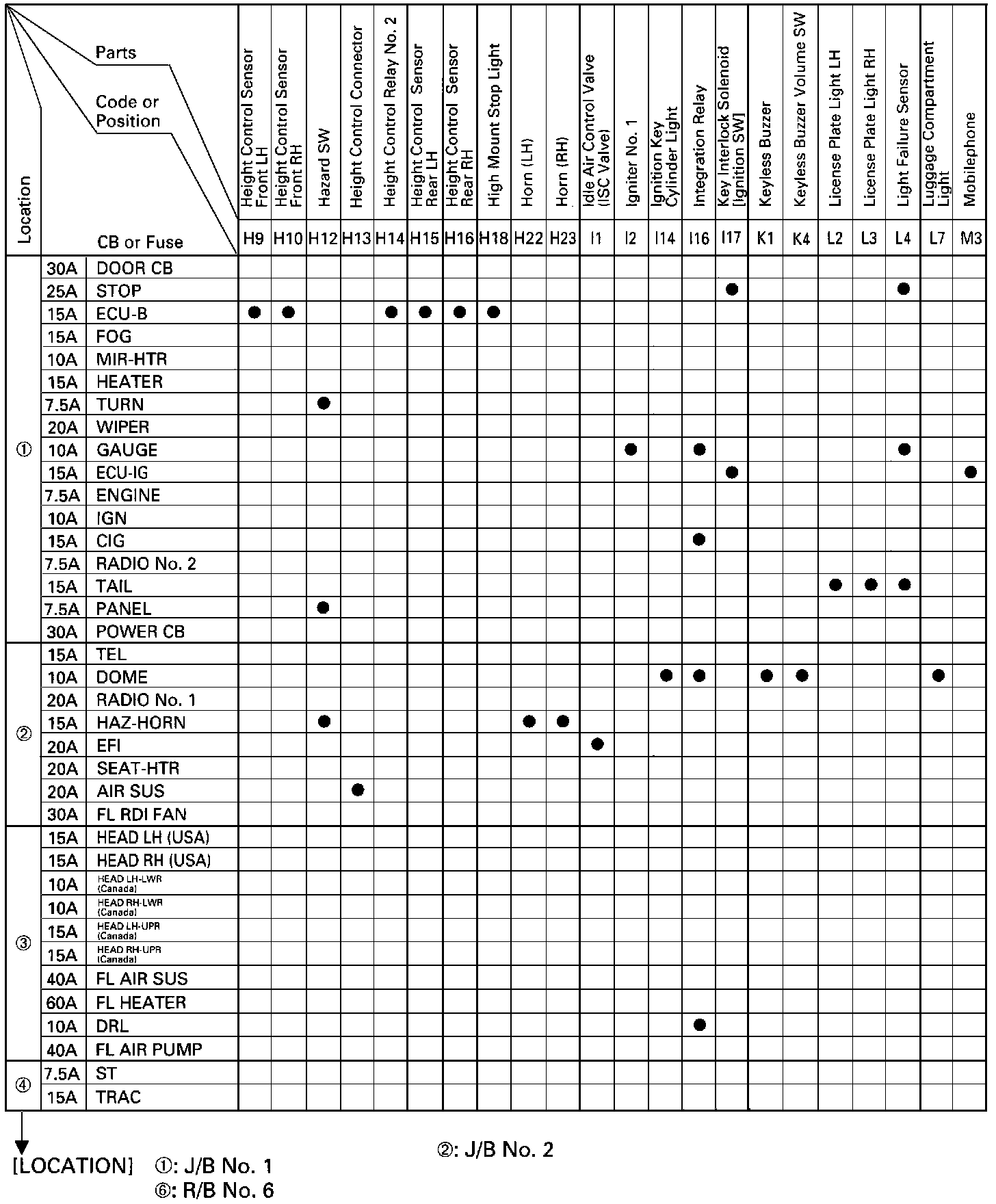

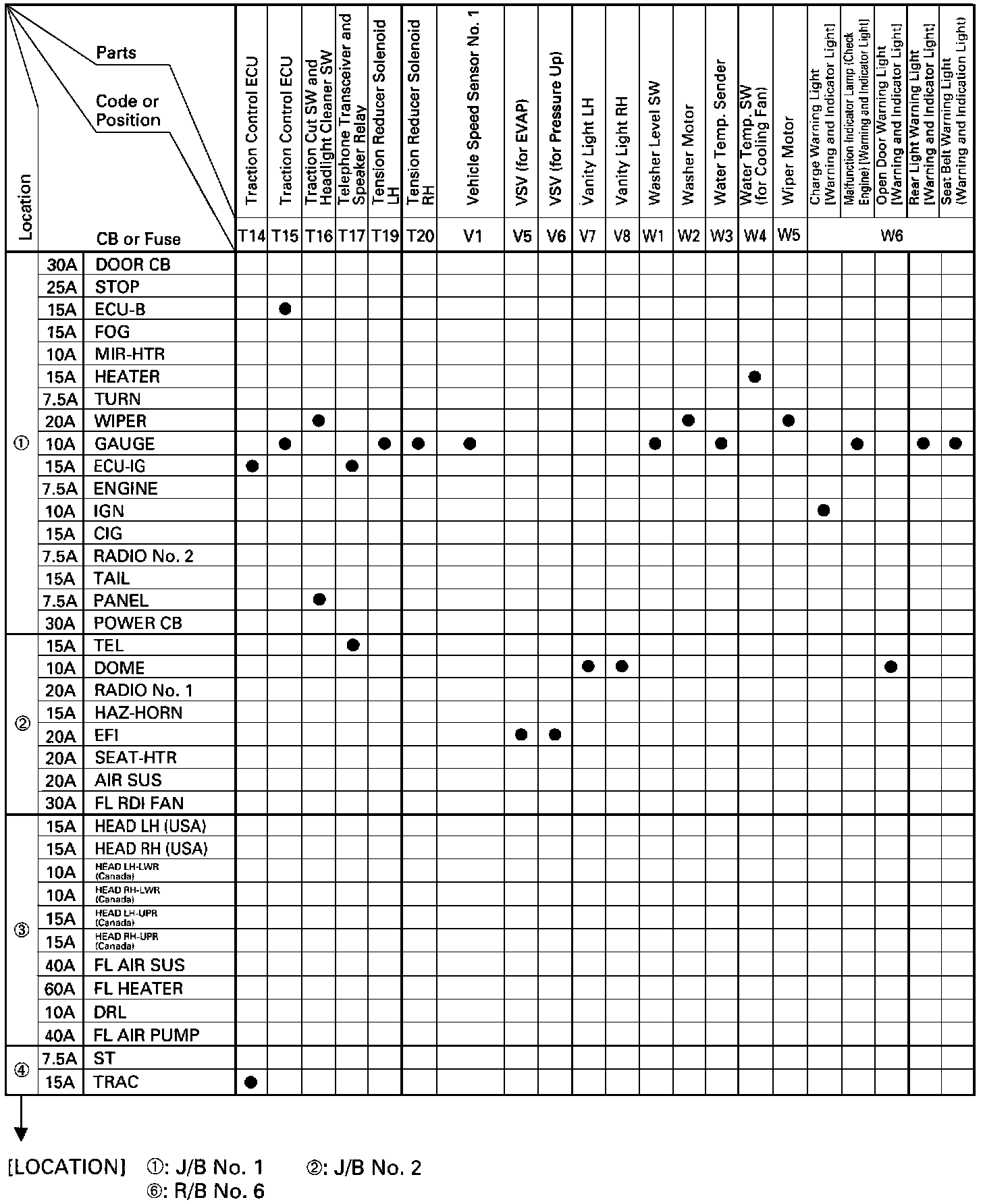

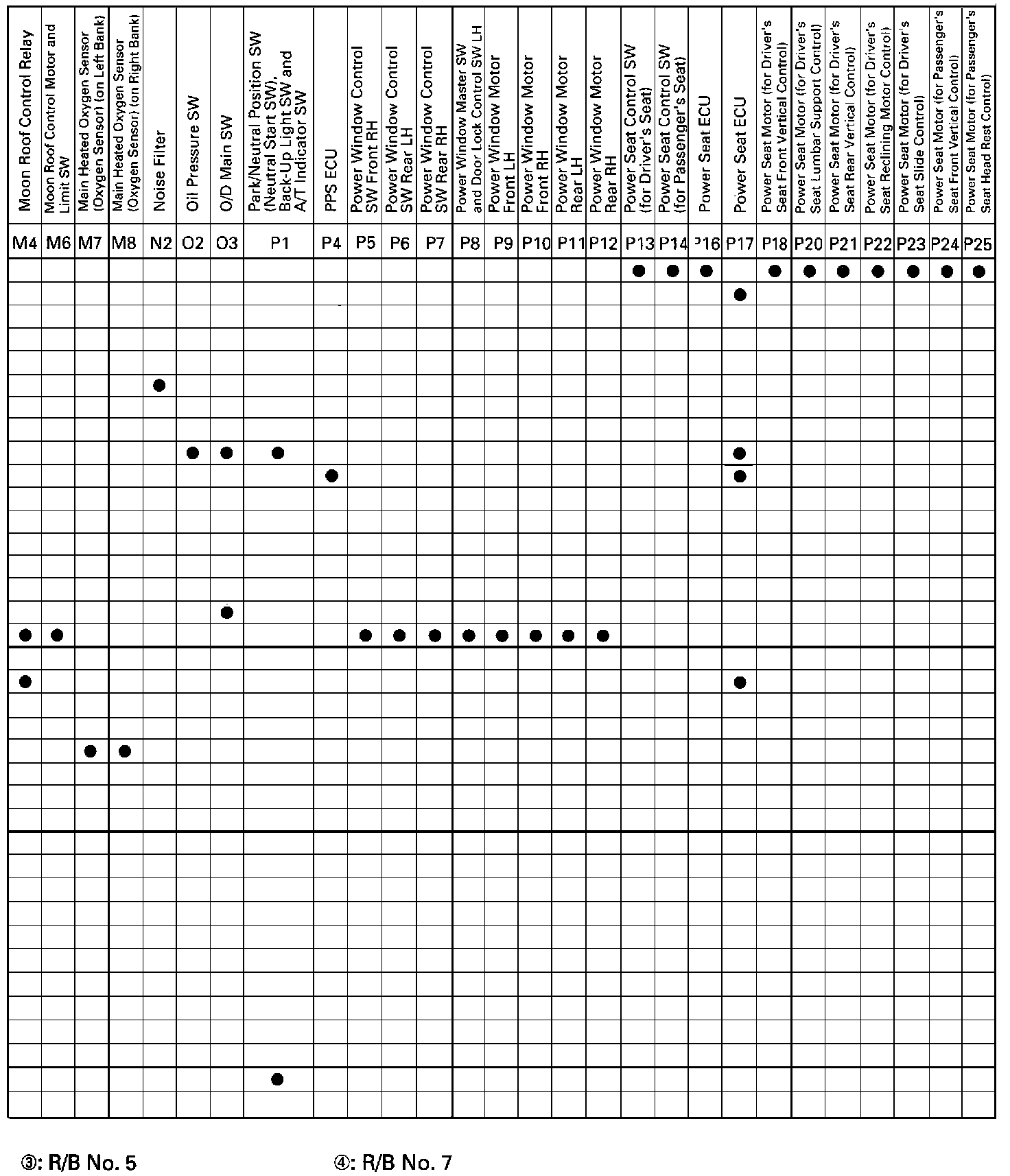

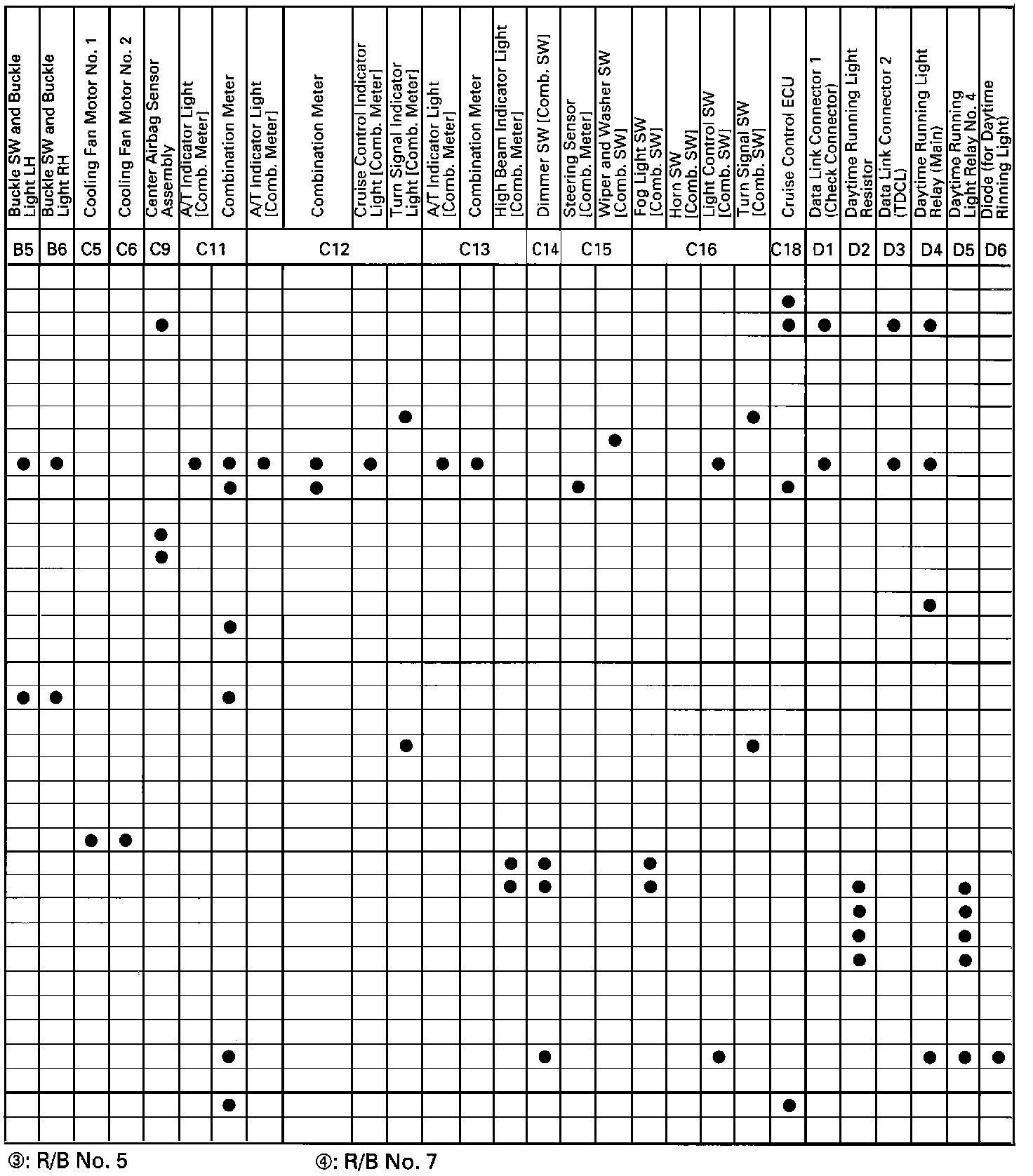

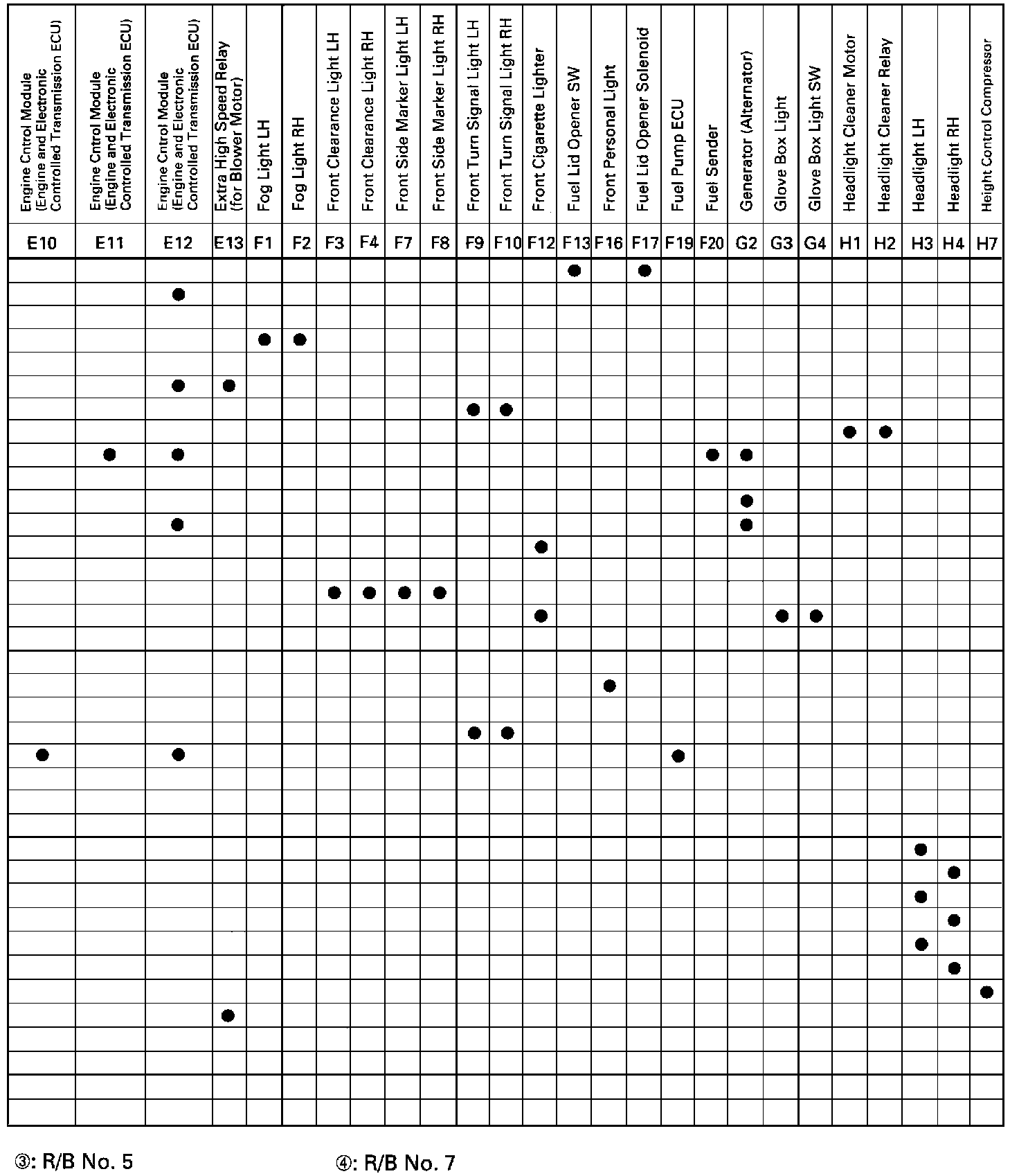

Power Source (Current Flow Chart) (Part 1 Of 10):

Power Source (Current Flow Chart) (Part 2 Of 10):

68 Engine Control
82 Headlight (For USA)
85 Headlight and Fog Light (For Canada)
94 Automatic Light Control
98 Fog Light (For USA)
100 Turn Signal and Hazard Warning Light
106 Interior Light
111 Illumination (For USA)
116 Illumination (For Canada)
147 Supplemental Restraint System
162 Electric Tension Reducer
174 Cruise Control
180 ABS and Traction Control
190 Electronic Controlled Transmission and A/T Indicator
202 Electronic Modulated Air Suspension
213 Progressive Power Steering
223 Wiper and Washer
226 Rear Window Defogger and Mirror Heater
244 Headlight Cleaner (For Canada)
246 Horn
254 Auto Antenna
266 Combination Meter
274 Automatic Air Conditioning

Power Source (Current Flow Chart) (Part 3 Of 10):

Power Source (Current Flow Chart) (Part 4 Of 10):

66 Charging
68 Engine Control
82 Headlight (For USA)
85 Headlight and Fog Light (For Canada)
98 Fog Light (For USA)
100 Turn Signal and Hazard Warning Light
102 Taillight
106 Interior Light
111 Illumination (For USA)
116 Illumination (For Canada)
126 Power Window
130 Wireless Door Lock Remote Control
134 Theft Deterrent and Door Lock Control
190 Electronic Controlled Transmission and A/T Indicator
202 Electronic Modulated Air Suspension
222 Liquid Crystal Inner Rear View Mirror
242 Cigarette Lighter
244 Headlight Cleaner (For Canada)
266 Combination Meter
274 Automatic Air Conditioning

Power Source (Current Flow Chart) (Part 5 Of 10):

Power Source (Current Flow Chart) (Part 6 Of 10):

62 Starting and Ignition
68 Engine Control
85 Headlight and Fog Light (For Canada)
94 Automatic Light Control
100 Turn Signal and Hazard Warning Light
102 Taillight
106 Interior Light
111 Illumination (For USA)
116 Illumination (For Canada)
122 Stop Light
125 Back-Up Light
126 Power Window
130 Wireless Door Lock Remote Control
134 Theft Deterrent and Door Lock Control
142 Moon Roof
164 Power Tilt and Power Telescopic
170 Power Tilt (w/o Power Telescopic)
190 Electronic Controlled Transmission and A/T Indicator
199 Shift Lock
202 Electronic Modulated Air Suspension
213 Progressive Power Steering
226 Rear Window Defogger and Mirror Heater
228 Liquid Crystal Inner Rear View Mirror
236 Power Seat (w/o Memory)
246 Horn
250 Cellular Mobile Telephone (Docking Portable Type)
266 Combination Meter
274 Automatic Air Conditioning

Power Source (Current Flow Chart) (Part 7 Of 10):

Power Source (Current Flow Chart) (Part 8 Of 10):

68 Engine Control
100 Turn Signal and Hazard Warning Light
102 Taillight
106 Interior Light
111 Illumination (For USA)
116 Illumination (For Canada)
122 Stop Light
125 Back-Up Light
126 Power Window
130 Wireless Door Lock Remote Control
134 Theft Deterrent and Door Lock Control
142 Moon Roof
154 Unlock and Seat Belt Warning
158 Power Shoulder Belt Anchorage
164 Power Tilt and Power Telescopic
170 Power Tilt (w/o Power Telescopic)
174 Cruise Control
190 Electronic Controlled Transmission and A/T Indicator
199 Shift Lock
202 Electronic Modulated Air Suspension
216 Remote Control Mirror (w/ Memory)
220 Remote Control Mirror (w/o Memory)
226 Rear Window Defogger and Mirror Heater
228 Liquid Crystal Inner Rear View Mirror
236 Power Seat (w/o Memory)
240 Seat Heater
242 Cigarette Lighter
254 Auto Antenna
256 Radio and Player (Nakamichi)
262 Radio and Player (Pioneer)

Power Source (Current Flow Chart) (Part 9 Of 10):

Power Source (Current Flow Chart) (Part 10 Of 10):

58 Power Source
66 Charging
68 Engine Control
85 Headlight and Fog Light (For Canada)
91 Light Auto Turn Off
98 Fog Light (For USA)
100 Turn Signal and Hazard Warning Light
102 Taillight
106 Interior Light
111 Illumination (For USA)
116 Illumination (For Canada)
122 Stop Light
126 Power Window
130 Wireless Door Lock Remote Control
134 Theft Deterrent and Door Lock Control
142 Moon Roof
147 Supplemental Restraint System
154 Unlock and Seat Belt Warning
162 Electric Tension Reducer
174 Cruise Control
180 ABS and Traction Control
190 Electronic Controlled Transmission and A/T Indicator
202 Electronic Modulated Air Suspension
213 Progressive Power Steering
223 Wiper and Washer
226 Rear Window Defogger and Mirror Heater
233 Power Seat (w/ Memory)
244 Headlight Cleaner (For Canada)
246 Horn
247 Cellular Mobile Telephone (Mobile Phone Type)
250 Cellular Mobile Telephone (Docking Portable Type)
256 Radio and Player (Nakamichi)
262 Radio and Player (Pioneer)
266 Combination Meter
274 Automatic Air Conditioning
