Electronic Brake Control Module

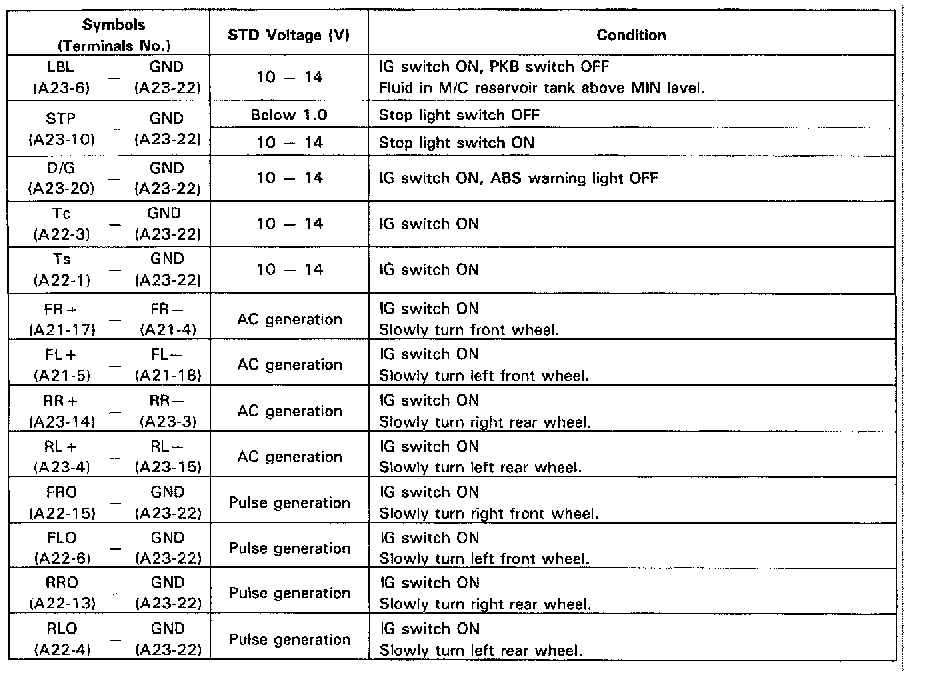

Fig. 33 ABS ECU Terminal Identification & Values (Part 1 Of 2):



Fig. 33 ABS ECU Terminal Identification & Values (Part 2 Of 2):
