Disassembly

PROCEDURE

1. Disconnect the lead connector and remove set plate from the Fuel Pump.





2. Remove the Fuel Pump from the Fuel Pump bracket.

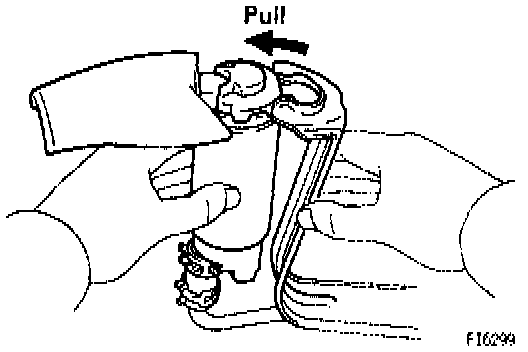

- Pull out the side of the Fuel Pump from the Fuel Pump bracket.
- Remove the rubber cushion from the Fuel Pump
- Disconnect the fuel hose from the Fuel Pump and remove the Fuel Pump.
3. Remove the Fuel Pump filter from the Fuel Pump.

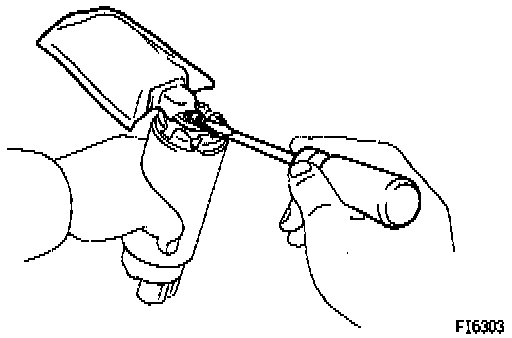

- Using a small screwdriver, remove the clip.
- Pull out the pump filter.
