Fuel Pressure Control Solenoid: Service and Repair

PROCEDURE

Removal

1. Disconnect negative terminal cable from battery.

CAUTION: Work must be started after 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

2. Disconnect the vacuum switching valve connector.

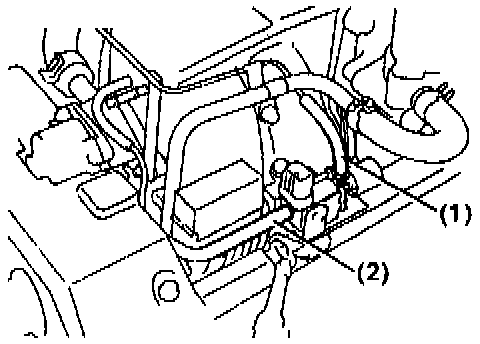

3. Disconnect the following hose from the vacuum switching valve:
- Vacuum hose from fuel pressure regulator (1)
- Vacuum hose from air intake chamber (2)





4. Remove the bolt and vacuum switching valve.

Installation





1. Install the vacuum switching valve with the bolt.

Torque: 18 Nm (13 ft lb)





2. Connect the following hoses to the vacuum switching valve:
- Vacuum hose from fuel pressure regulator (1)
- Vacuum hose from air intake chamber (2)
3. Connect the vacuum switching valve connector.
4. Reconnect negative terminal cable to battery.
