Cornering Lamp: Service and Repair

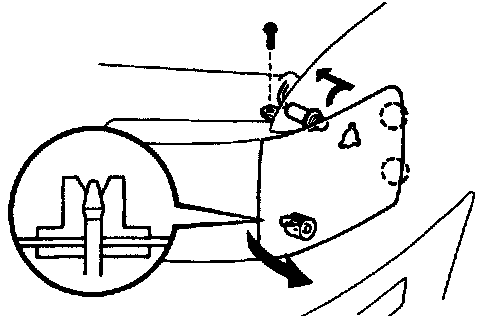

1. REMOVE PARKING LIGHT
(a) Remove a screw.
(b) Disconnect the connection at rear end of the light.
(c) Pull out the light as shown.
(d) Disconnect the bulb from the light.






1. REMOVE SIDE MARKER LIGHT
(a) Remove a screw.
(b) Pull out the light and remove it.

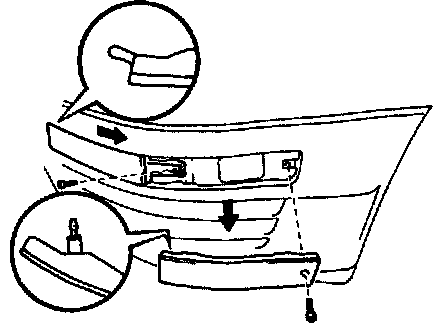

2. REMOVE TURN SIGNAL LIGHT
(a) Remove a screw.
(b) Slide the light as shown, and remove it.
