Instrument Panel, Gauges and Warning Indicators: Testing and Inspection

Combination Meter Exploded View

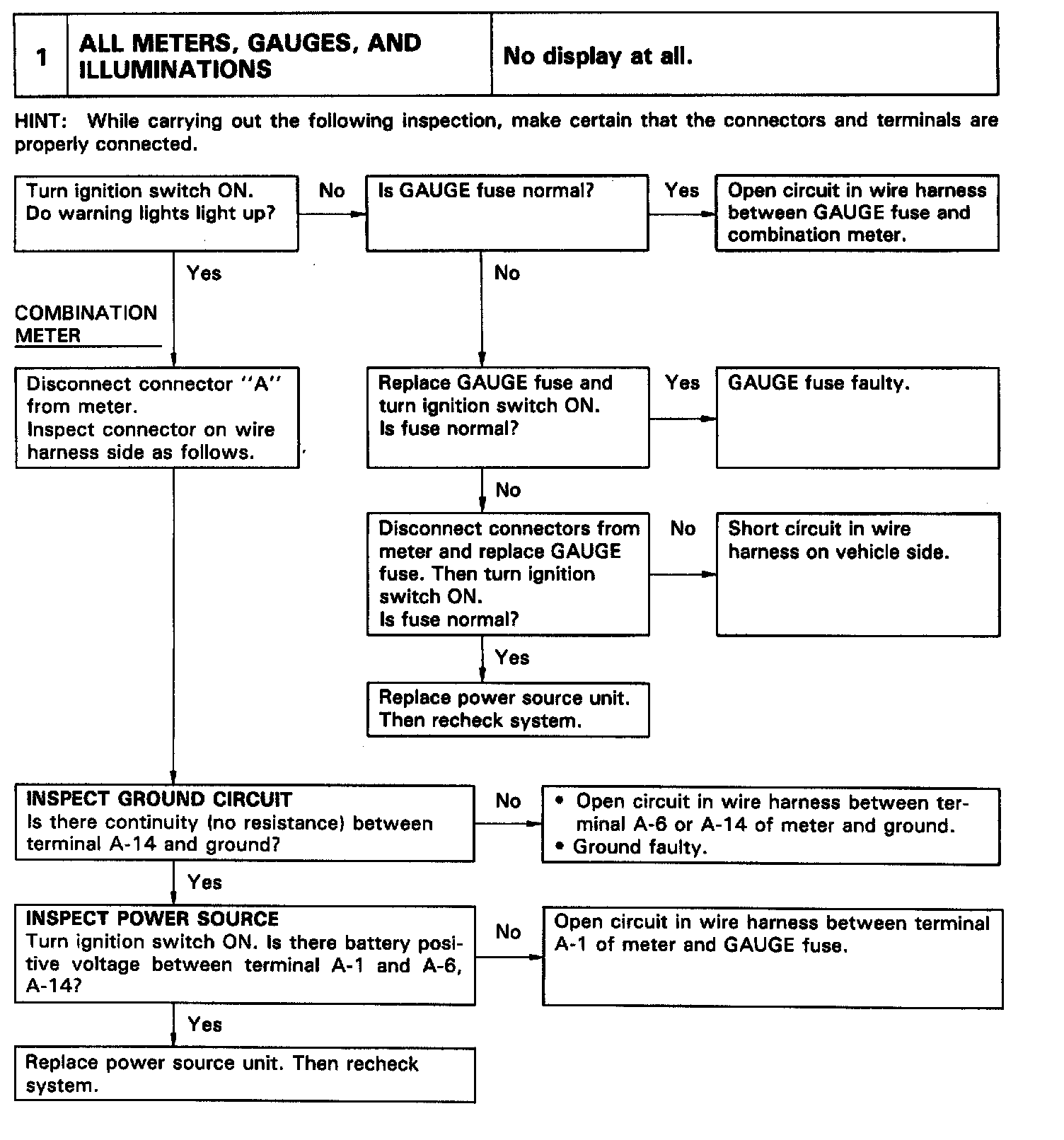

1. All Meter, Gauges and illuminations - No display at all

2. All Meter, Gauges and illuminations - the character plate is illuminated on one side only

3. Twin Trip meter and odo meter does not light up

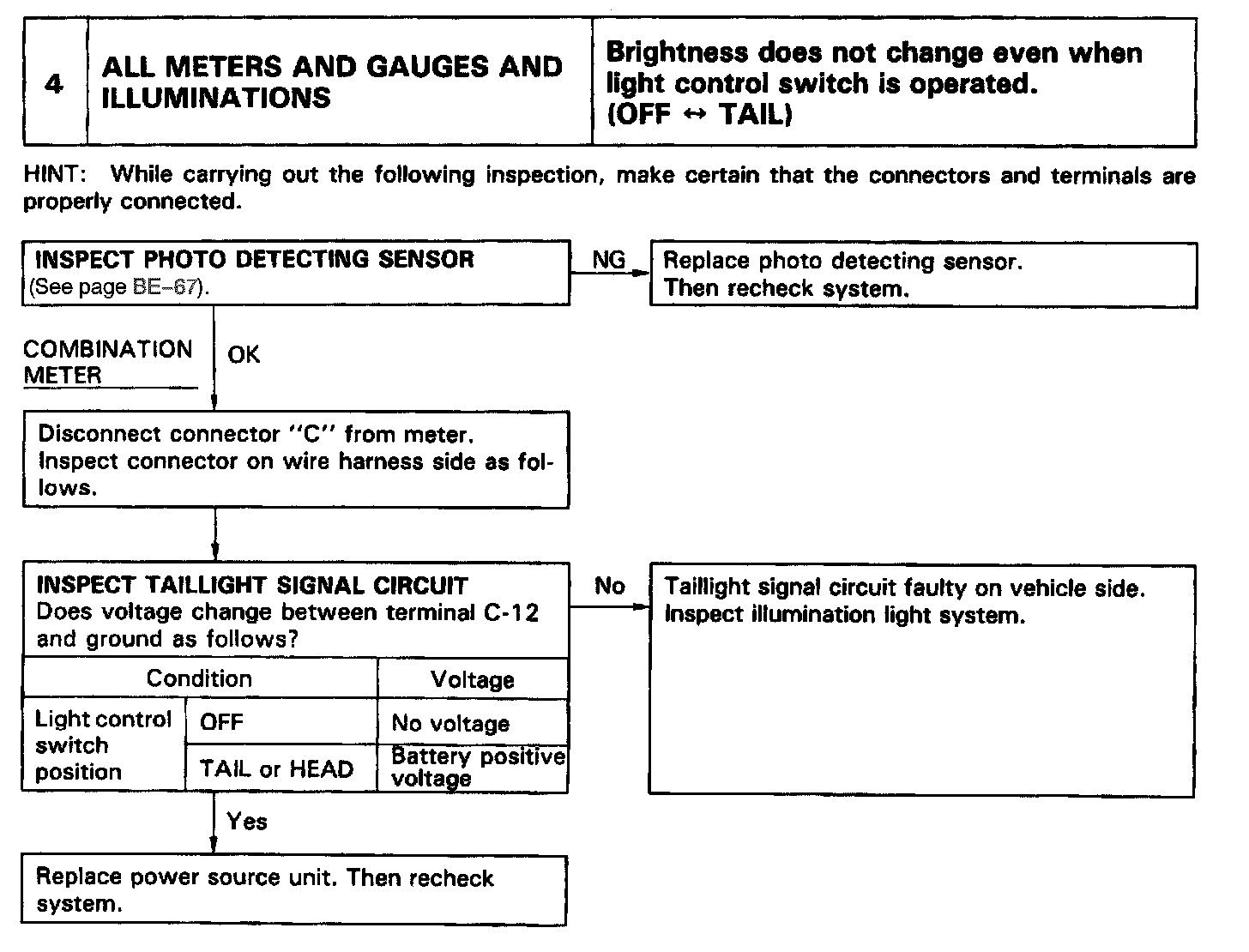

4. All Meter, Gauges and illuminations - brightness does not change even when light control switch is operated. (OFF<>TAIL)

5. All Meter, Gauges and illuminations - brightness does not change even when rheostat volume is turned.

6. Outside air temperature display - does not light up.

7. All Meter, Gauges and illuminations does not go out while starter running.

8. Speedometer does not operate while driving.

9. Speedometer vehicle speed signal (4P) Faulty

10. Tachometer does not operate while engine running

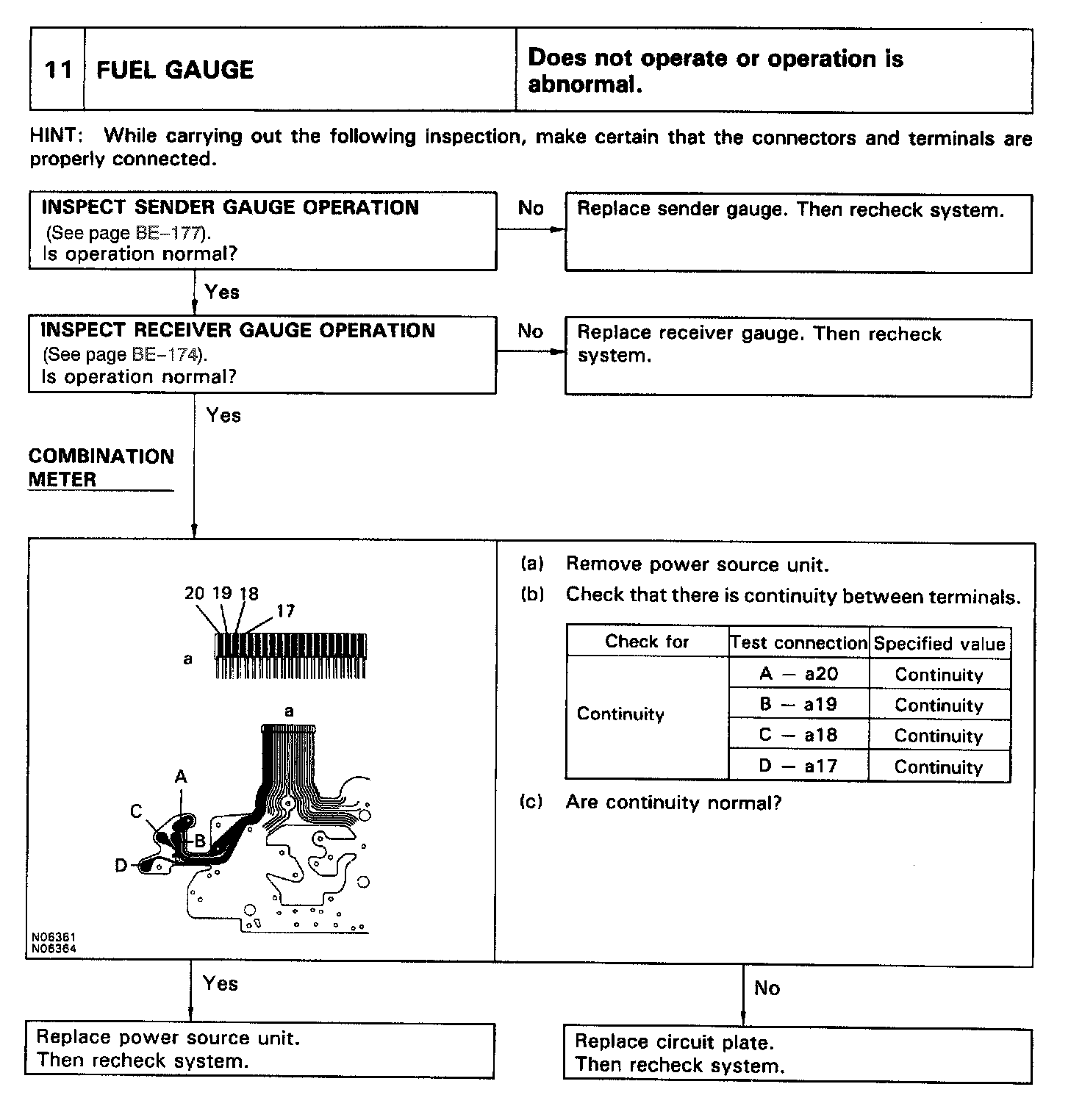

11. Fuel Gauge does not operate or operation is abnormal.

12. Fuel Level Warning Light does not light up

13. Fuel Level Warning Light does not operate or operation is abnormal.

14. Engine Coolant Temperature Gauge does not operate or operation is abnormal.

15. Twin Trip Meter display does not alter during driving

16. Twin Trip Meter
- Display does not reset when reset switch is pressed
- Display is reset even dureing driving if reset switch is not depressed
- Display does not change when mode switch (A/B) pressed

17. Twin Trip Meter display is reset whenever ignition switch is turned off

18. Odometer does not operate while driving

19. Outside air temperature display abnormal

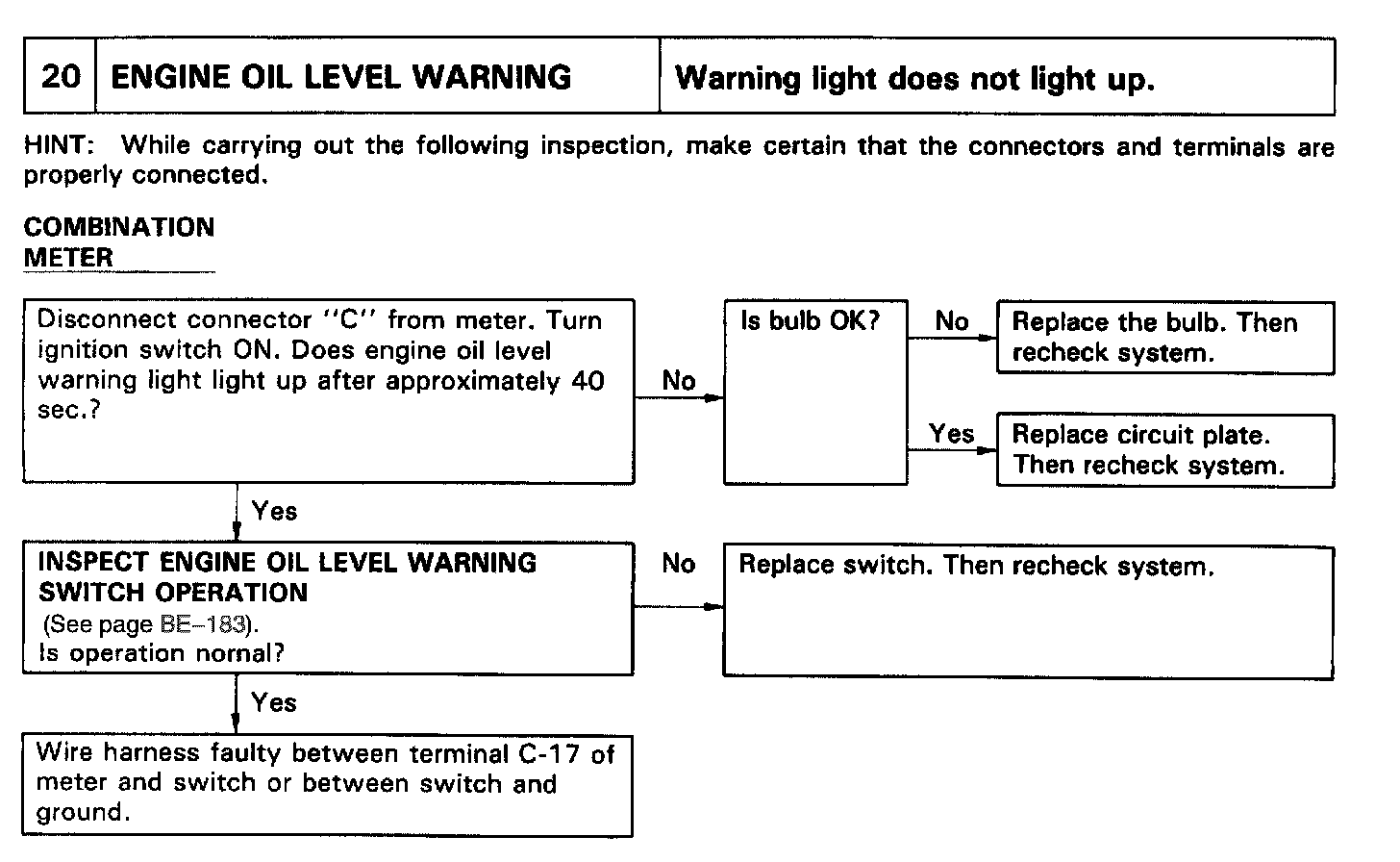

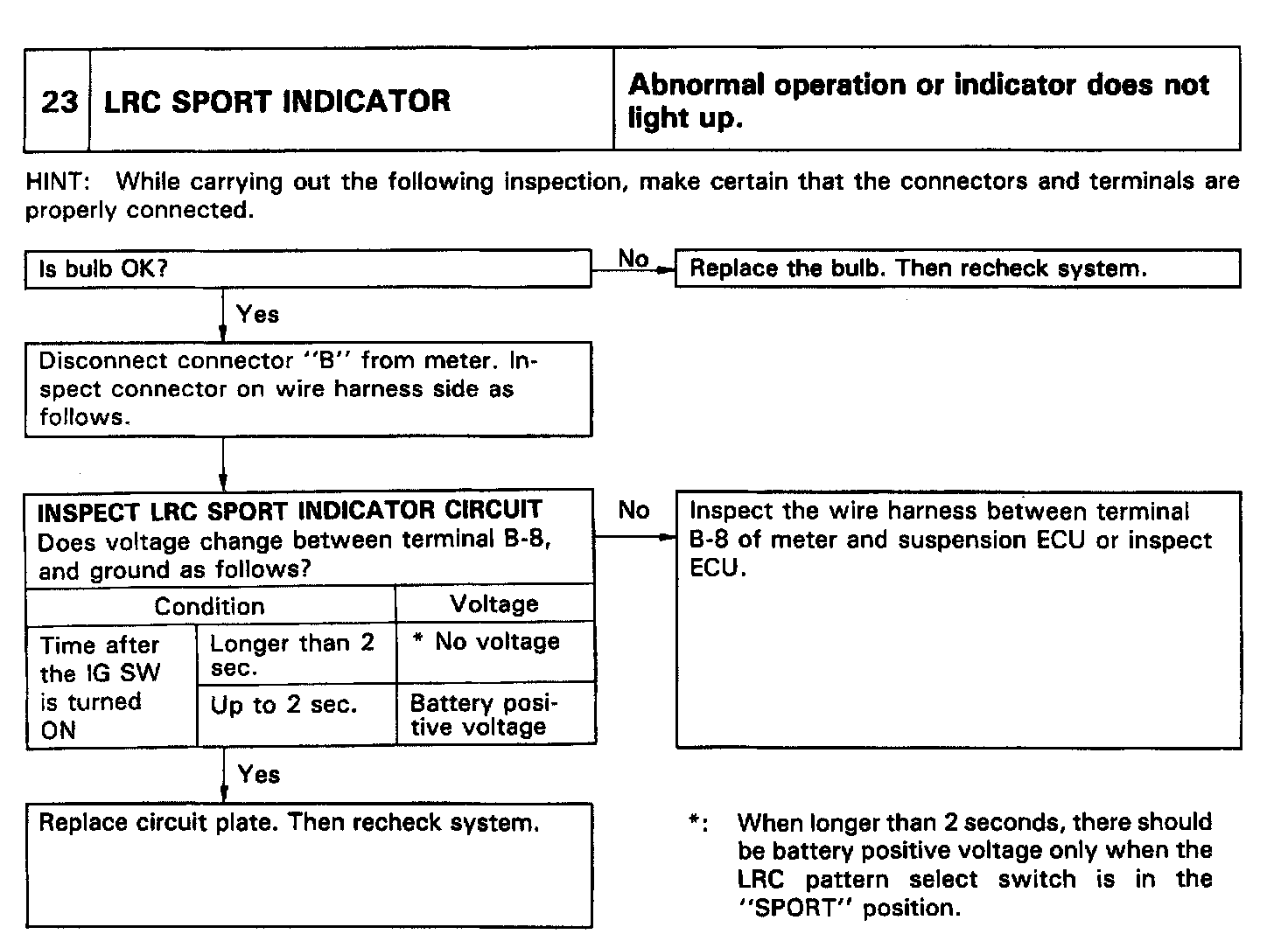

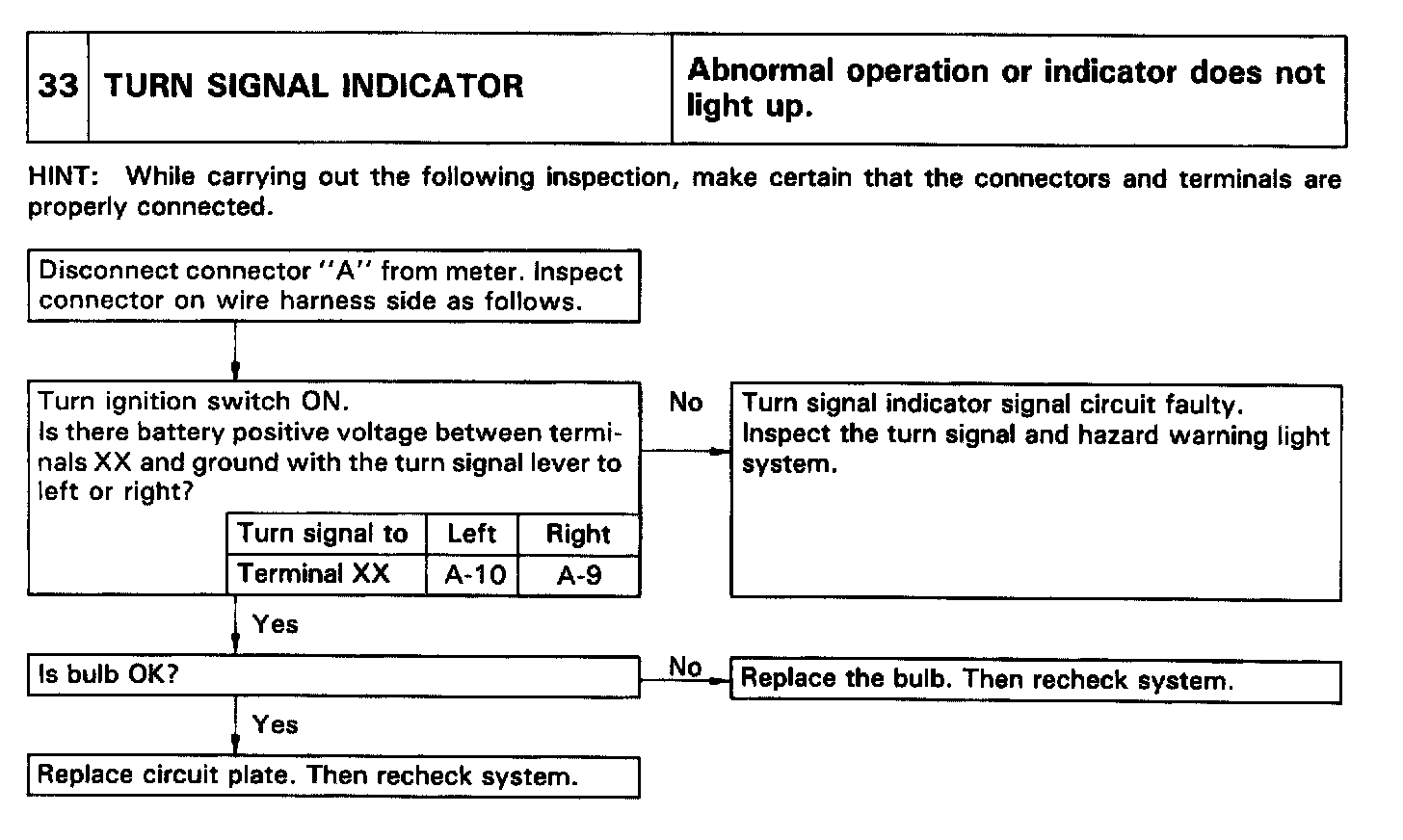

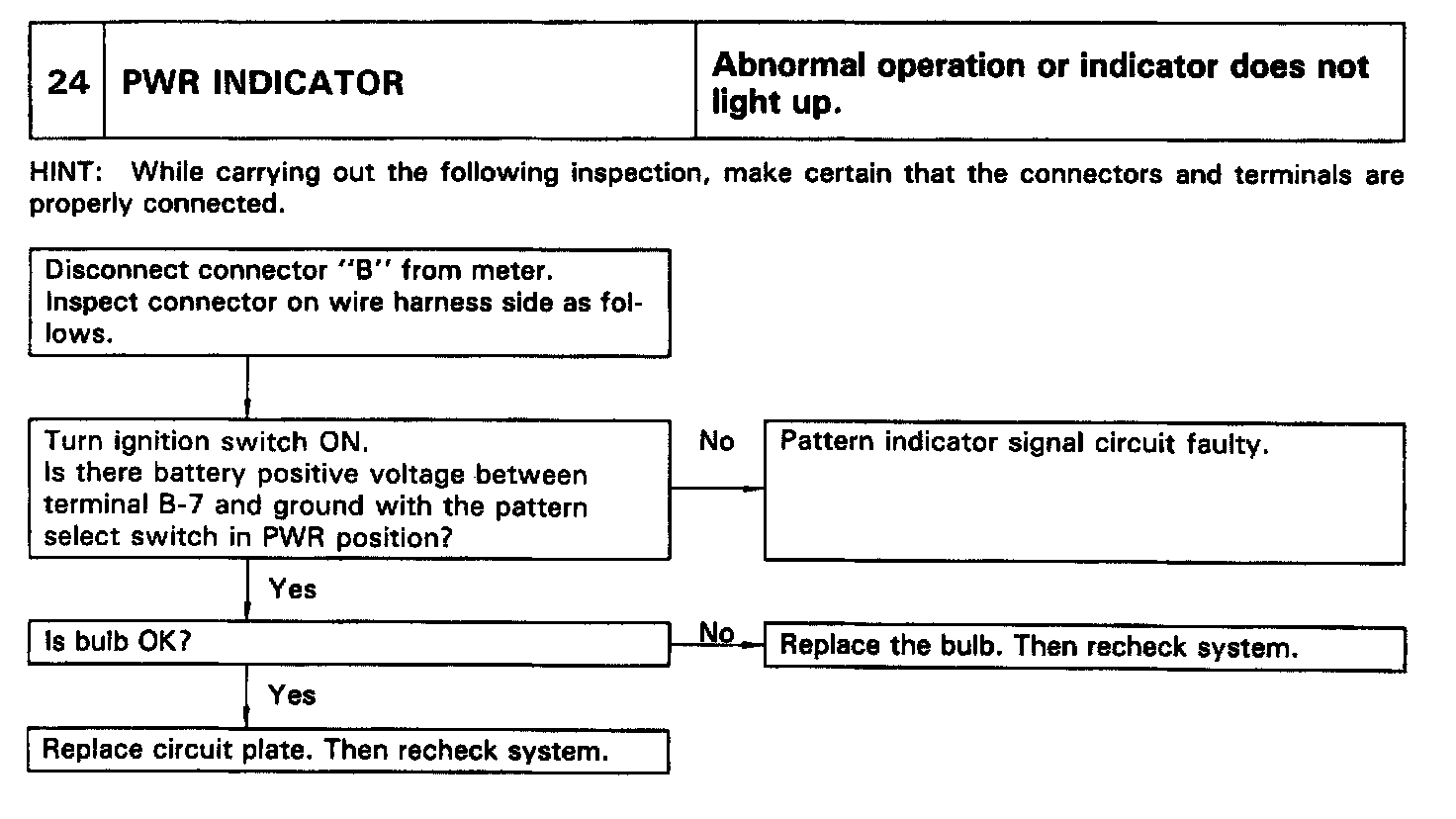

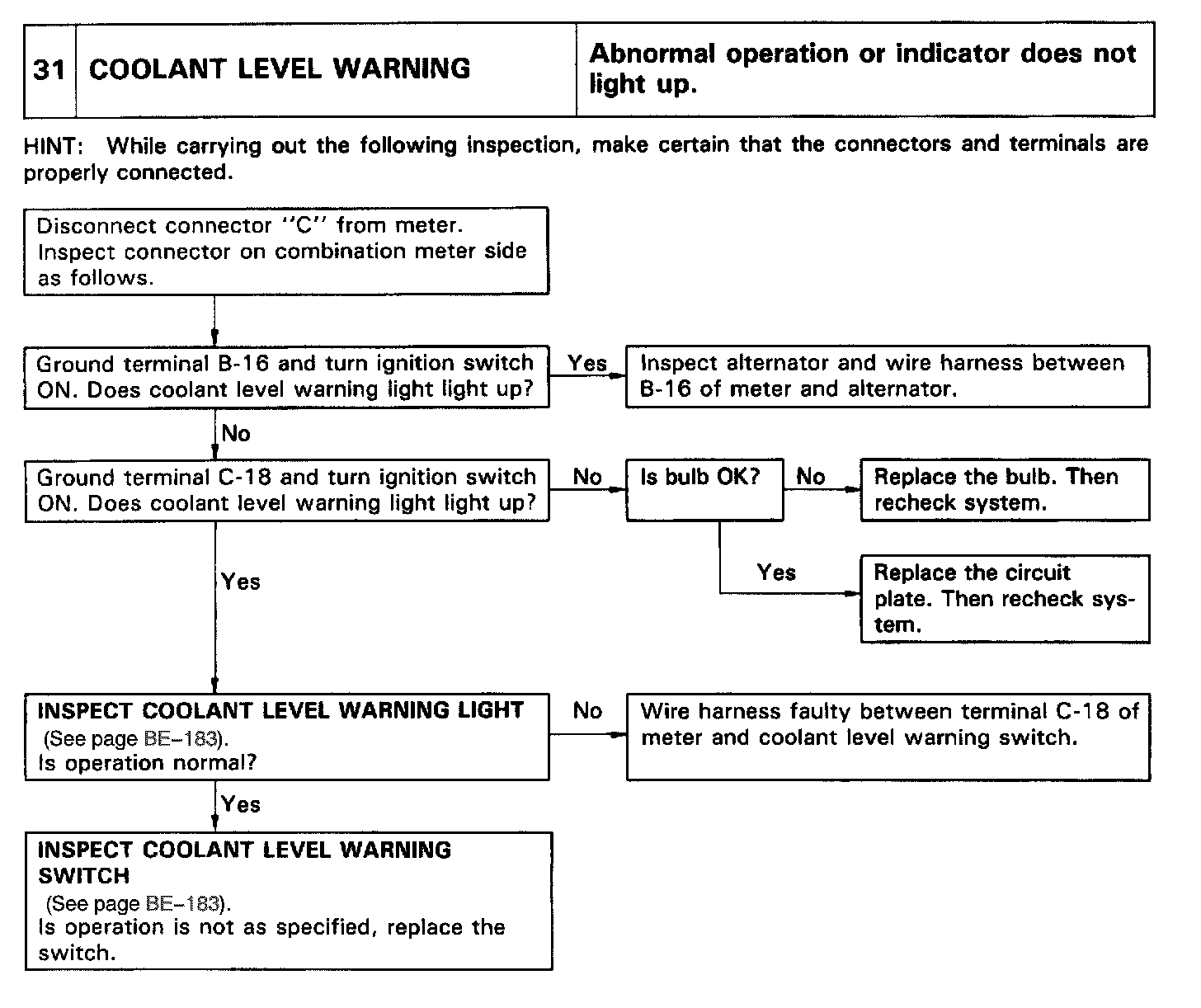

20. Engine Oil Level Warning light does not light up
