Pinout Values and Diagnostic Parameters
A/C Control Assembly Terminals:

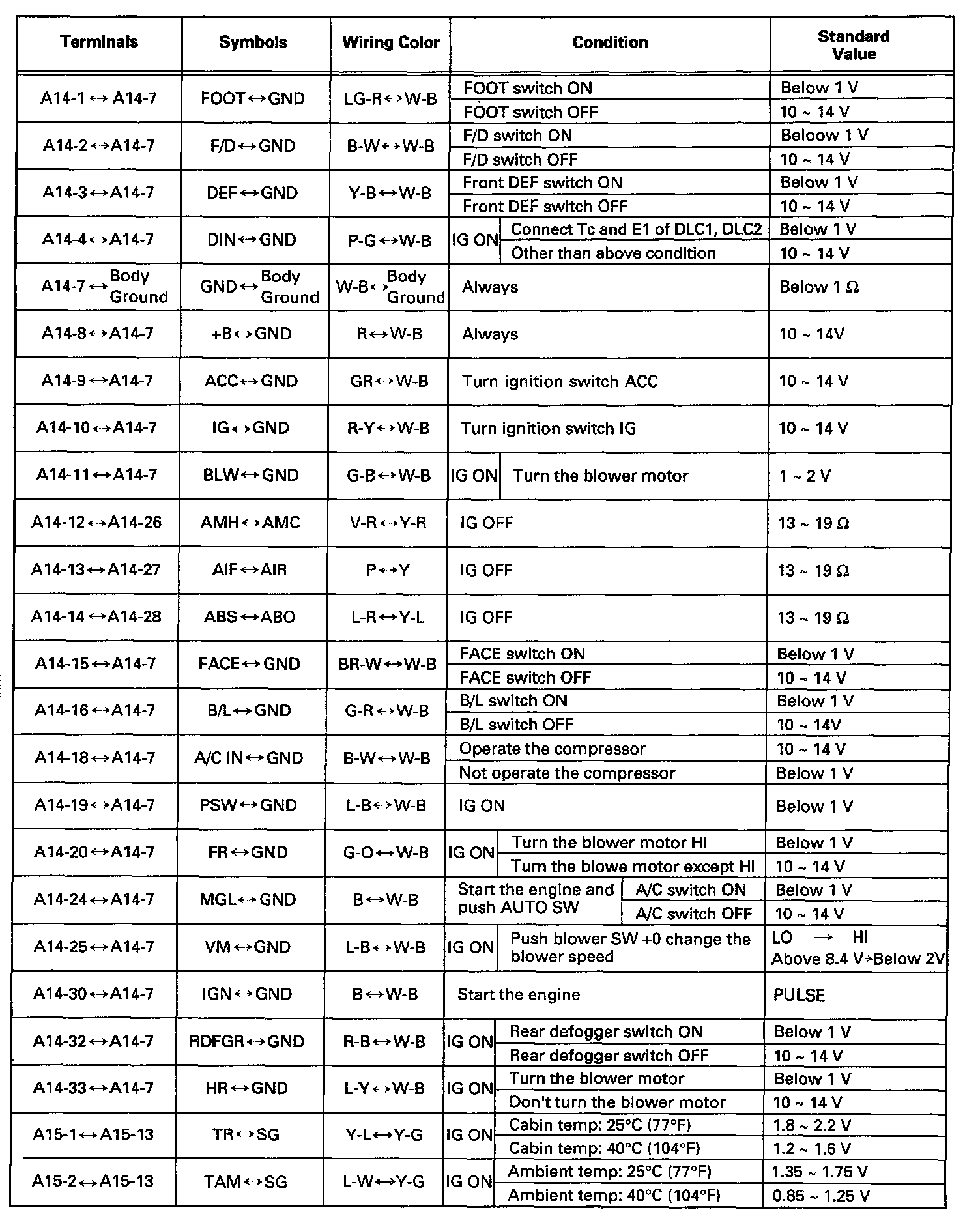

A/C Control Assembly Terminal Standard Value:

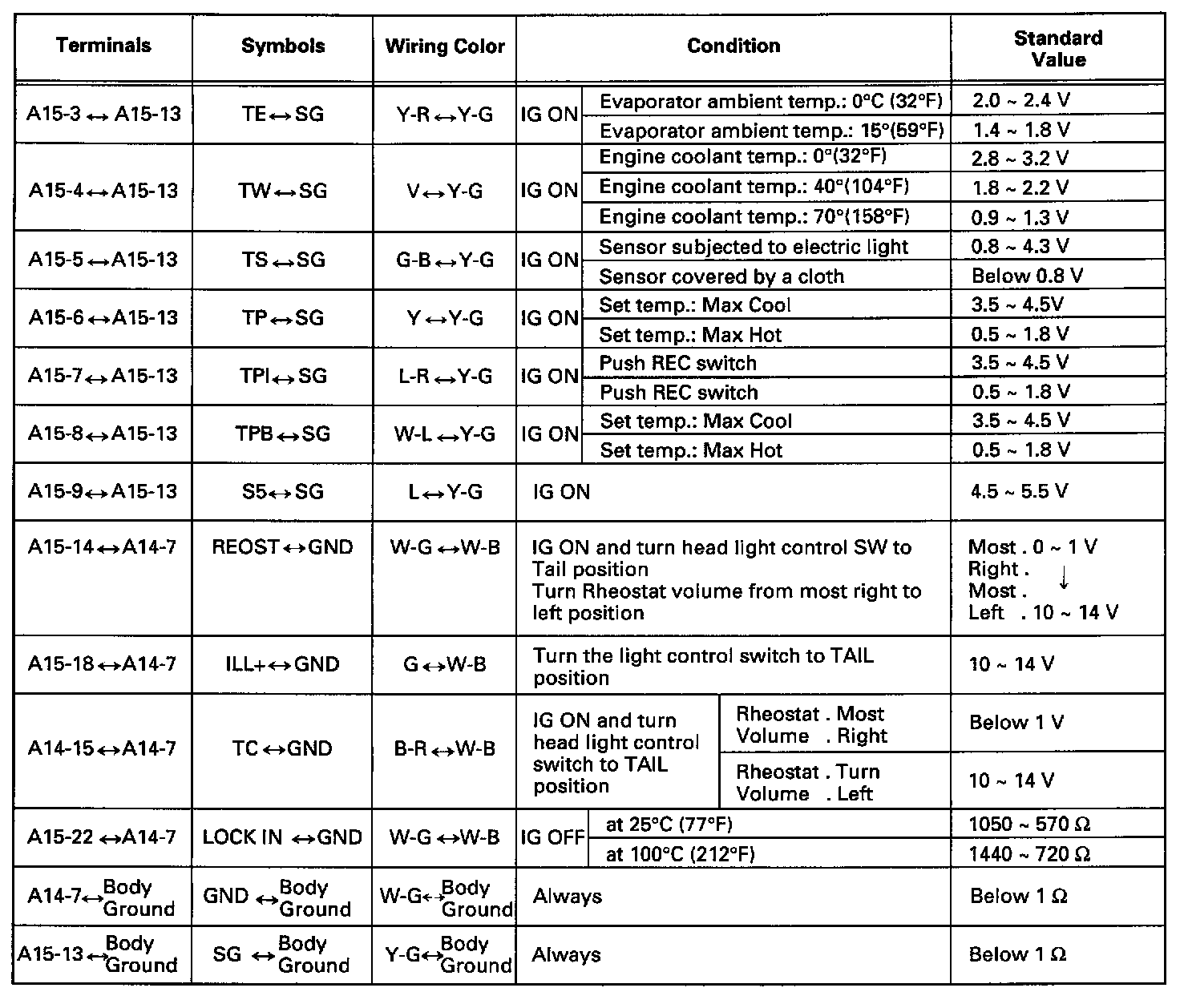

A/C Control Assembly Terminal Standard Value (Cont'd):
