Connector Views
>>
A 1 - J/B No.3
A 1 - J/B No.3

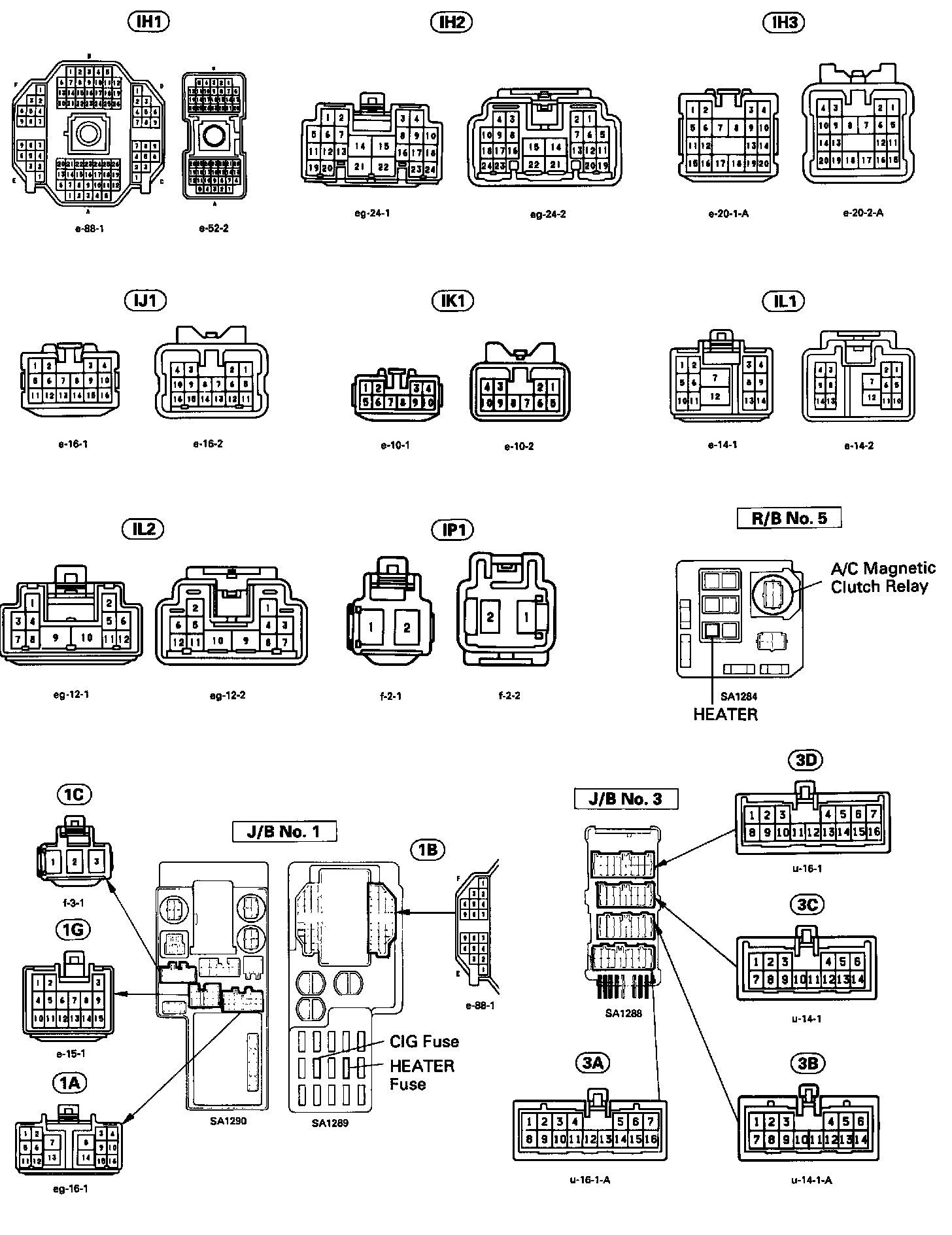

Connector Views 1:

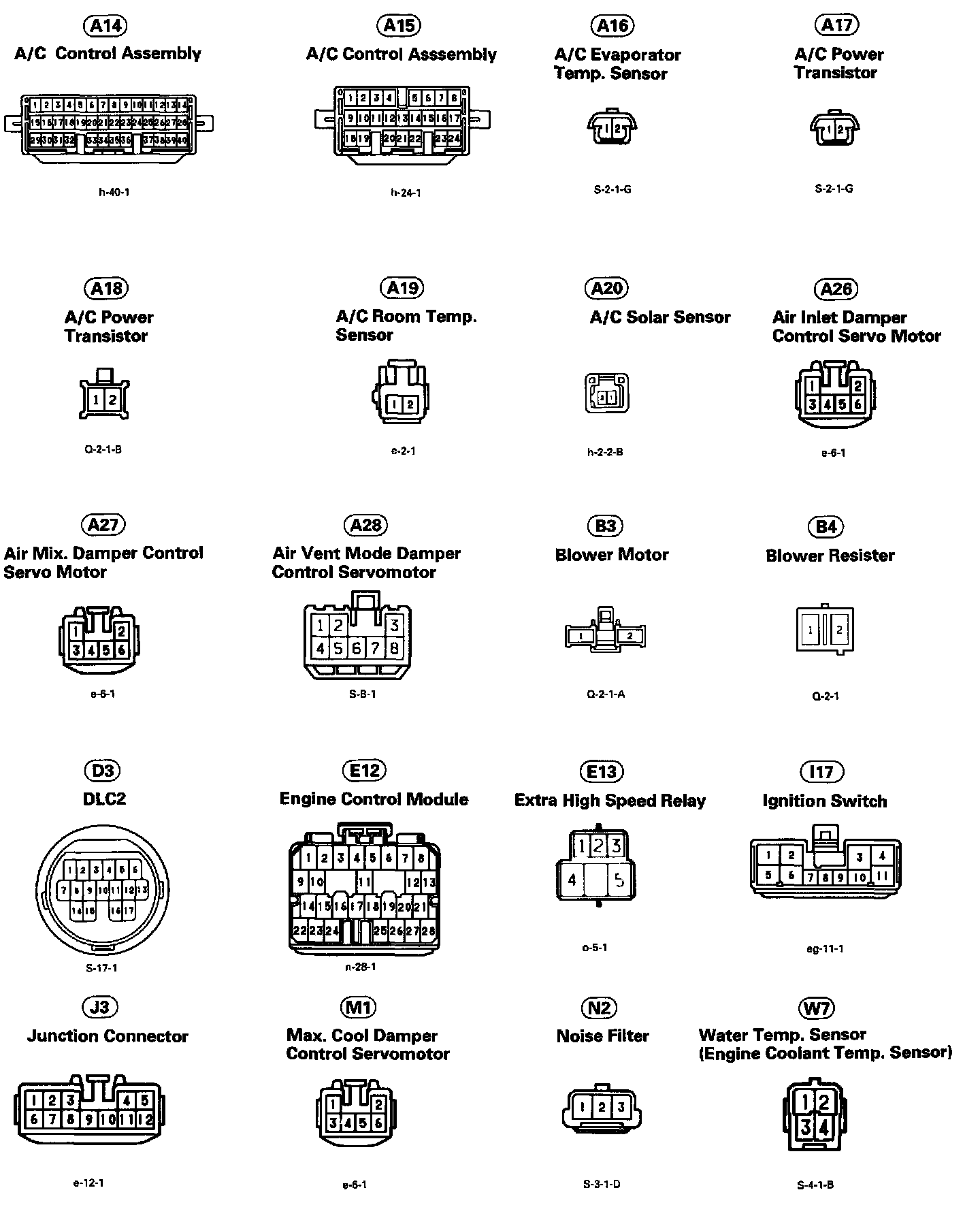

Connector Views 2:
Connector Views 3:
