Cabin Air Filter / Purifier: Service and Repair

Air Filter Removal

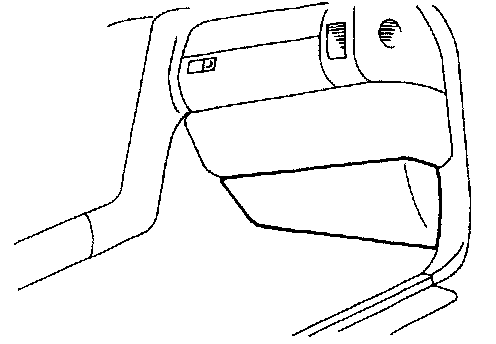

Remove No.2 under cover







REMOVE AIR FILTER

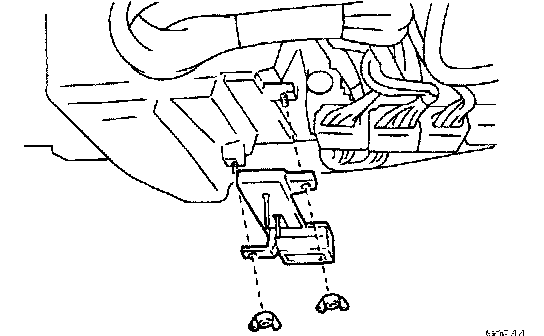

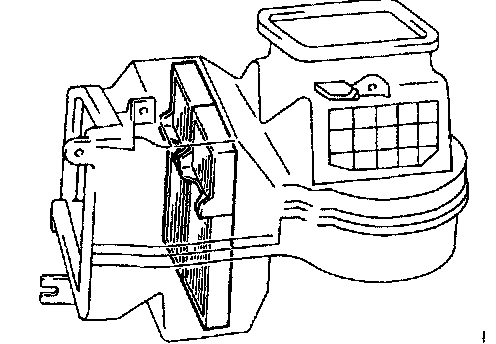

(a) Remove two wing nuts and lower cover from cooling and blower unit.

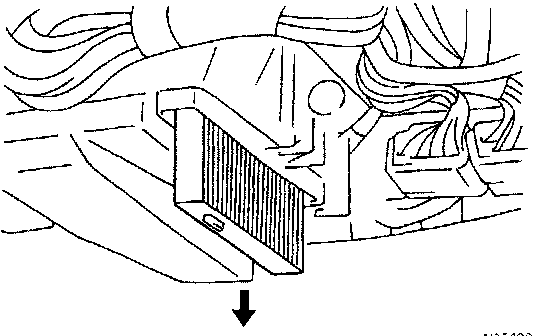

(b) Pull the rear air filter downward.

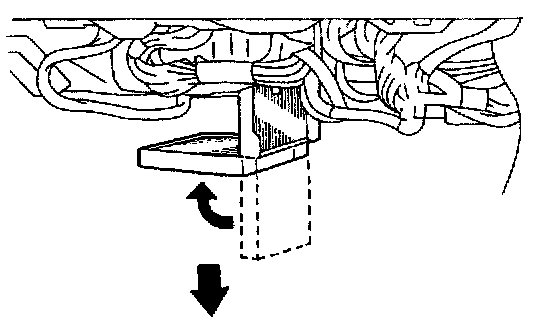

(c) Before the filter touches the floor carpet, bend the filter upward as shown in the illustration.

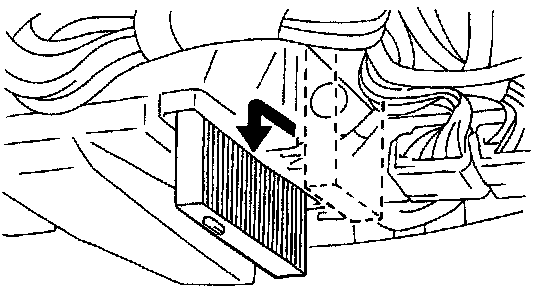

(d) Slide the front filter toward the rear and remove it the same way as the rear filter.



AIR FILTER INSTALLATION

Install by following the removal procedure in reverse order.
