Radiator Cooling Fan Motor: Testing and Inspection

Fig. 1 Cooling fan component locations:

When performing the following tests, refer to Fig. 1.

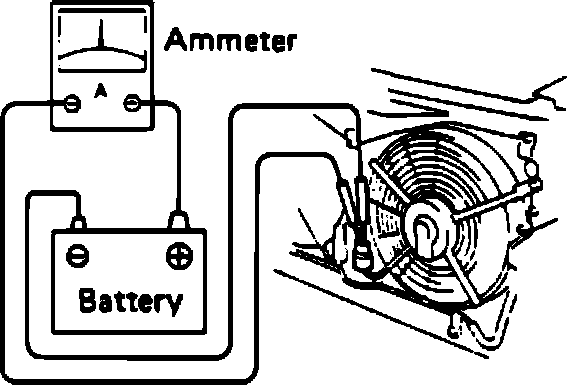

Fig. 3 Fan motor test connections:

1. Connect battery and ammeter to fan motor, Fig. 3.
2. Ensure fan rotates smoothly, and current is approximately 4.2-4.4 A.
