Illumination (For USA)
Illumination (For USA)

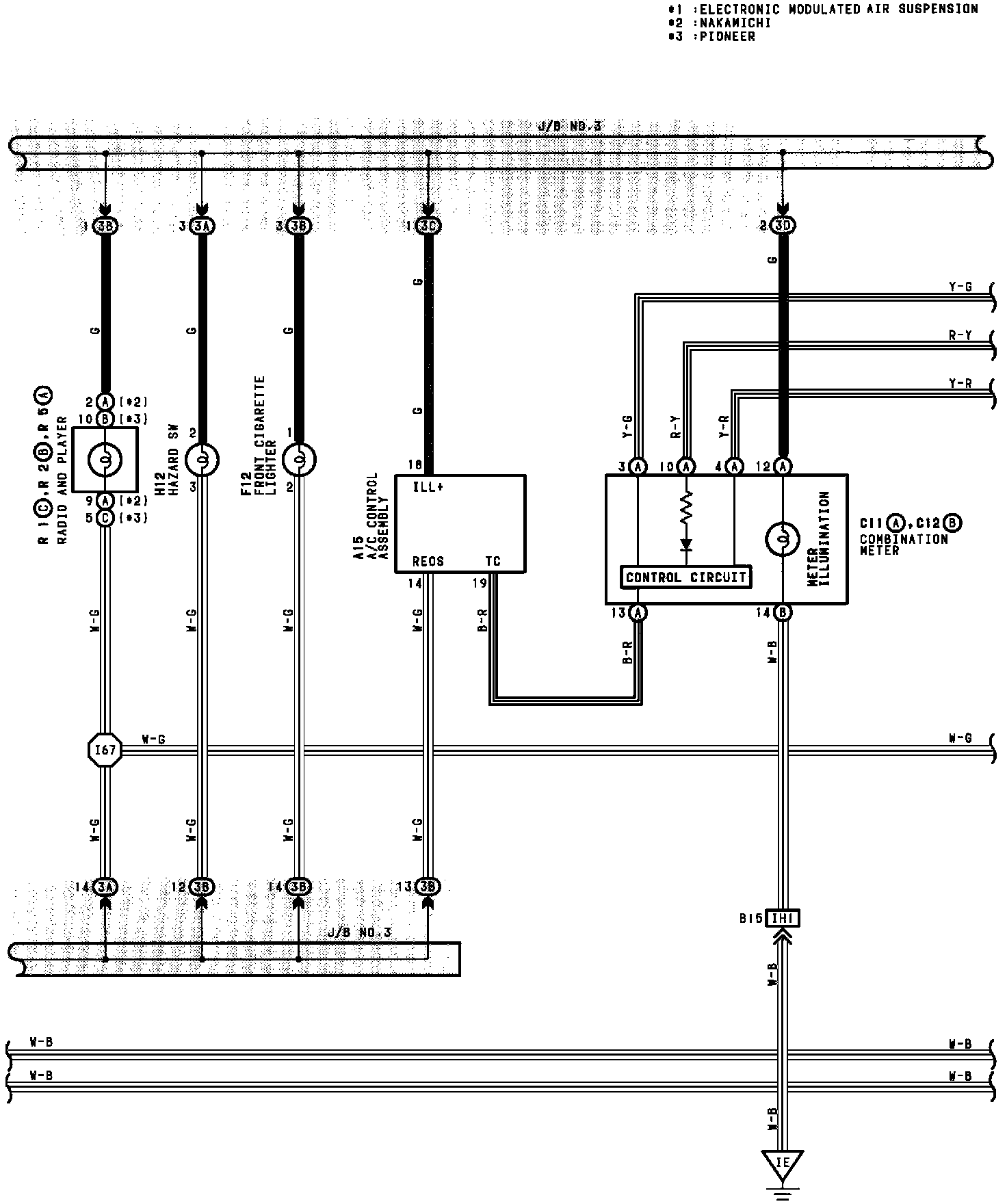

Illumination (For USA) (Part 1 Of 3):
Illumination (For USA) (Part 2 Of 3):
Illumination (For USA) (Part 3 Of 3):
