Illumination (For Canada)
Illumination (For Canada)

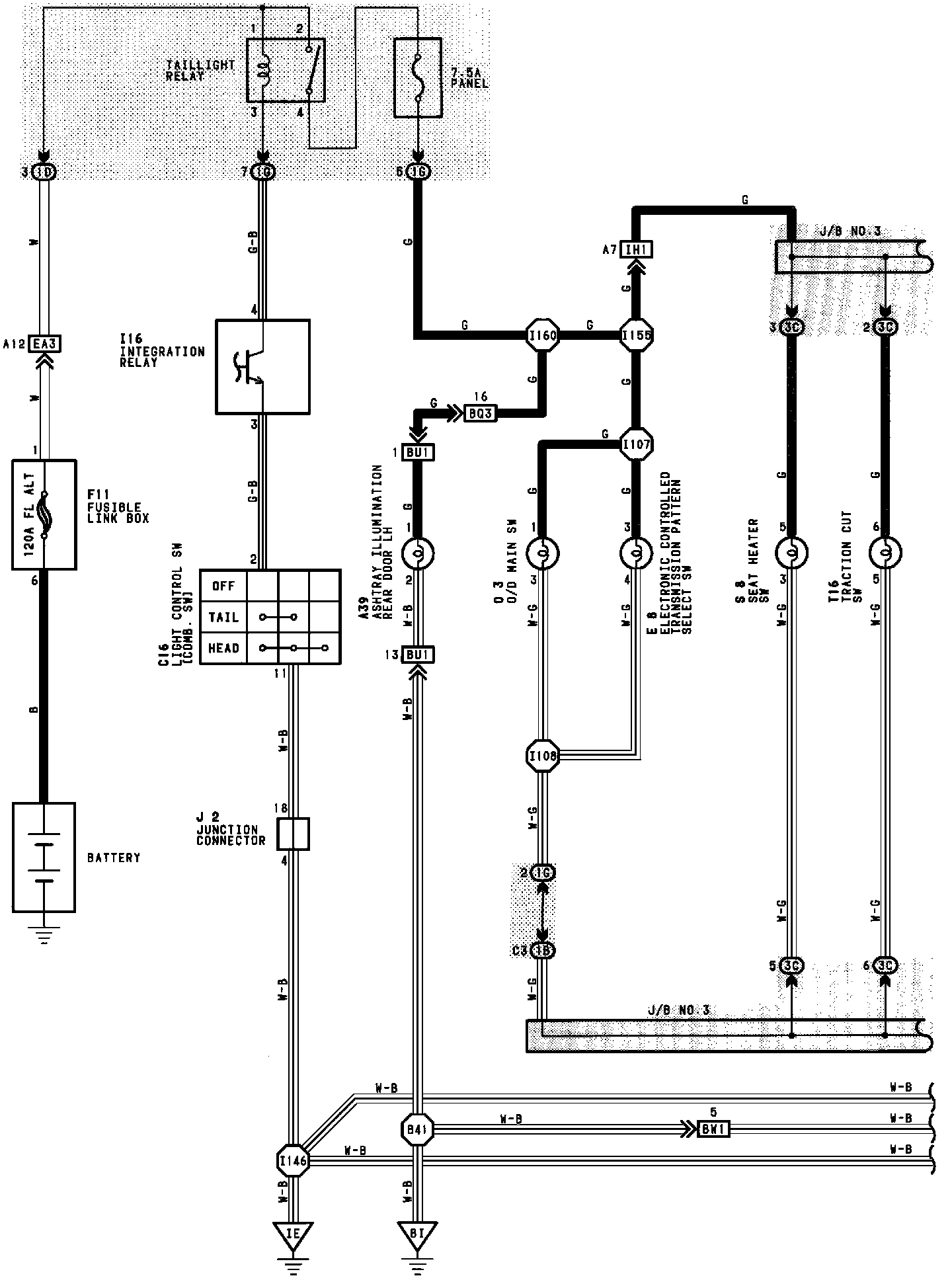

Illumination (For Canada) (Part 1 0f 3):
Illumination (For Canada) (Part 2 0f 3):
Illumination (For Canada) (Part 3 0f 3):
