Brake Proportioning/Combination Valve: Service and Repair

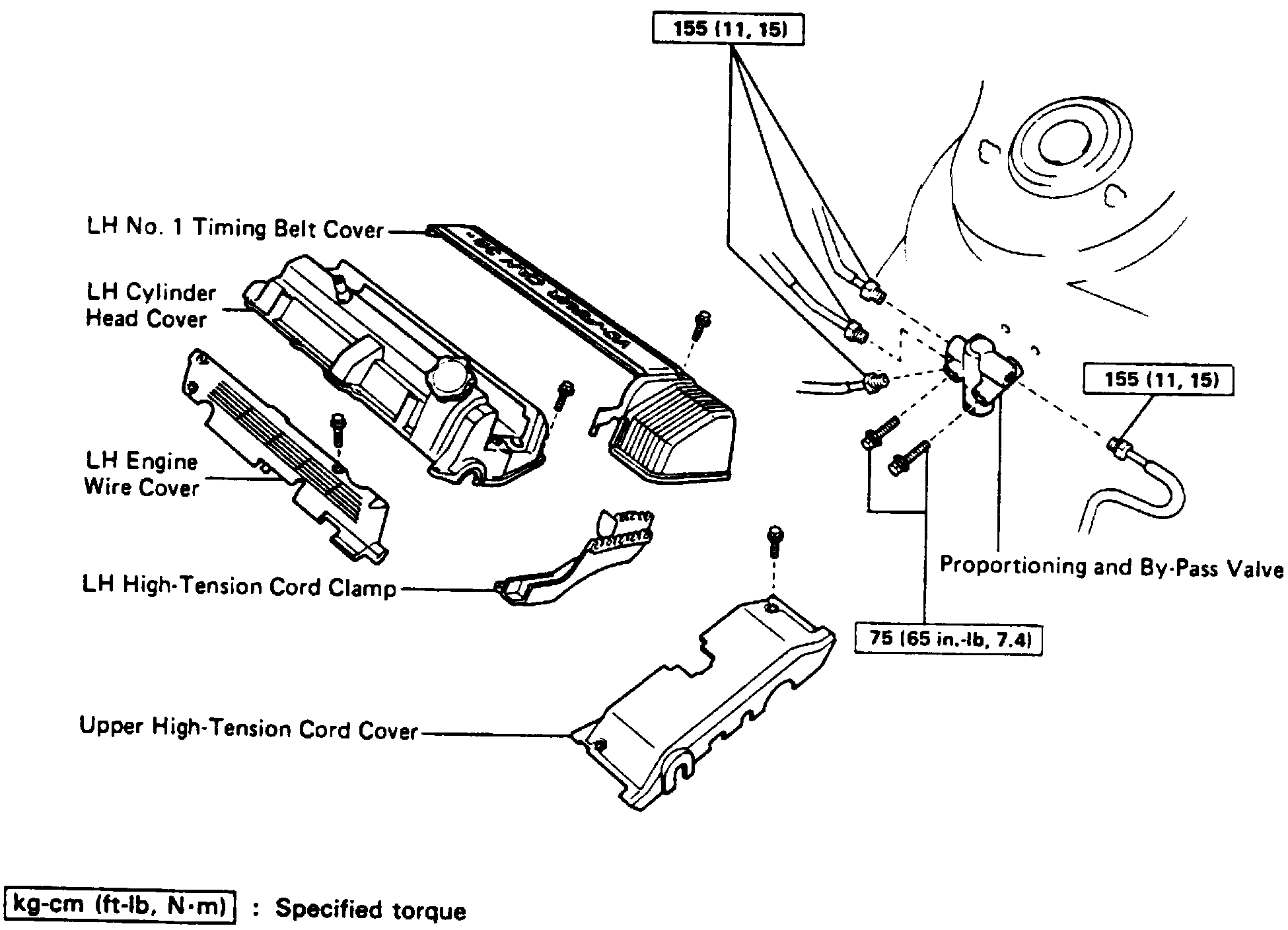

Fig. 5 Proportioning & Bypass Valve Replacement.:

Using brake line removal tool No. 09751-36011, or equivalent, remove and install brake lines, Fig. 5. Torque brake lines to 11 ft. lb.
