Sunroof / Moonroof: Testing and Inspection

ON-VEHICLE INSPECTION






INSPECT SLIDING ROOF GLASS ALIGNMENT

(a) Start the engine and check the operation time of the sliding roof.
Operation time: Approx. 5 sec.
(b) Check for abnormal noise or binding during operation.
(c) With the sliding roof fully closed, check for water leakage.
(d) Check for a difference in level between the sliding roof weatherstrip and roof panel.
Front end: - 0.7 ± 1 mm (-0.016 ± 0.039 in.)
Rear end: +0.3 ± 1 mm (0.024 + 0.039 in.)
If the sliding roof does not operate:
(e) Remove the control switch cover.
(f) Remove the large screw inside.

NOTICE Be careful not to lose the spring washer or shim.

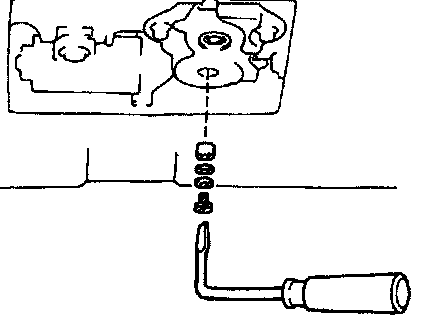

(g) Manually operate the moon roof by inserting a special crank-shaped screwdriver into the hole and turning the drive shaft.
