DTC 83

DTC 83 - STOP LIGHT SWITCH CIRCUIT

CIRCUIT DESCRIPTION





When the brake pedal is depressed, the stop light switch comes on and battery voltage is applied to terminal STP of ECU. This signal is used by the ECU as one of the starting conditions for Antidive control.





DIAGNOSTIC CHART

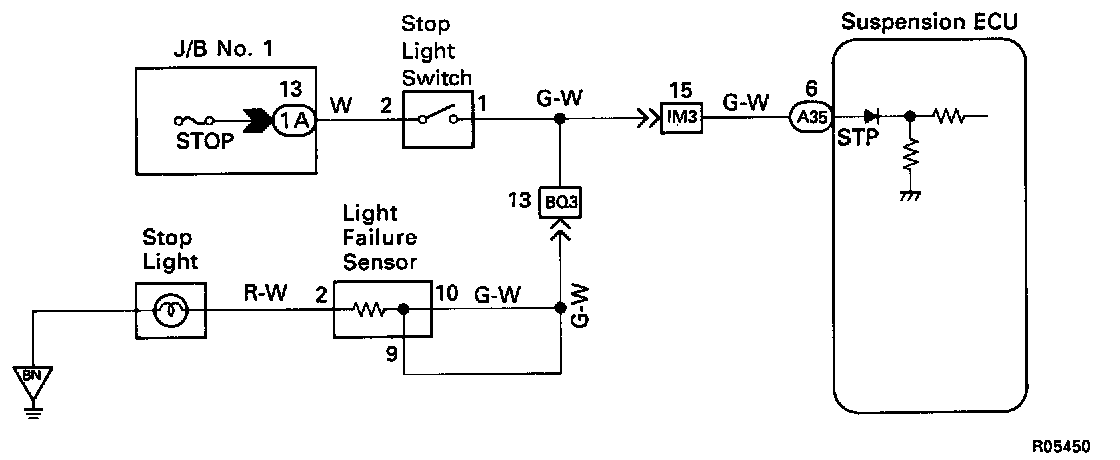

WIRING DIAGRAM

Step 1:

Step 2:

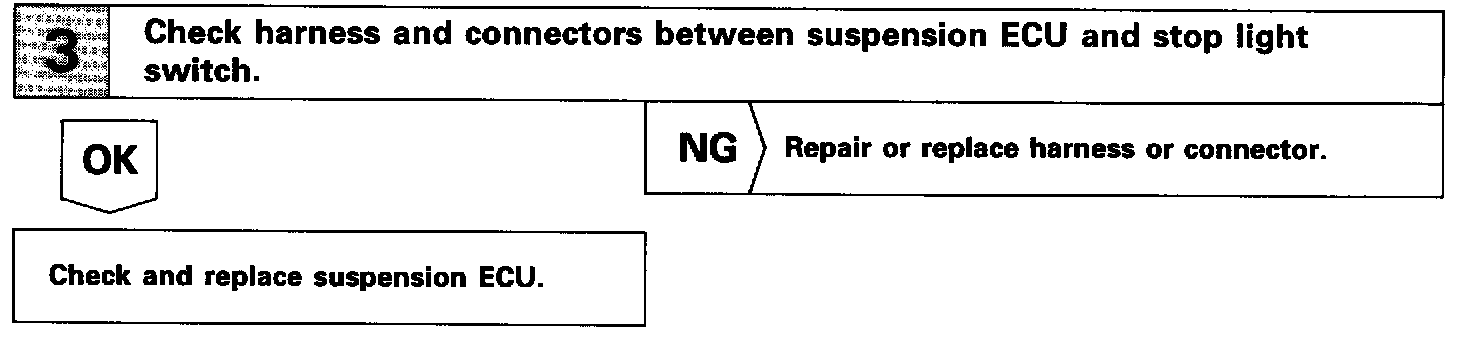

Step 3:

INSPECTION PROCEDURE
