DTC 72

DTC 72 - SUSPENSION CONTROL ACTUATOR POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION





If diagnostic trouble code 72 is stored in the ECU memory, damping force and spring rate control is not carried out until battery voltage is supplied to terminal +B of the ECU.

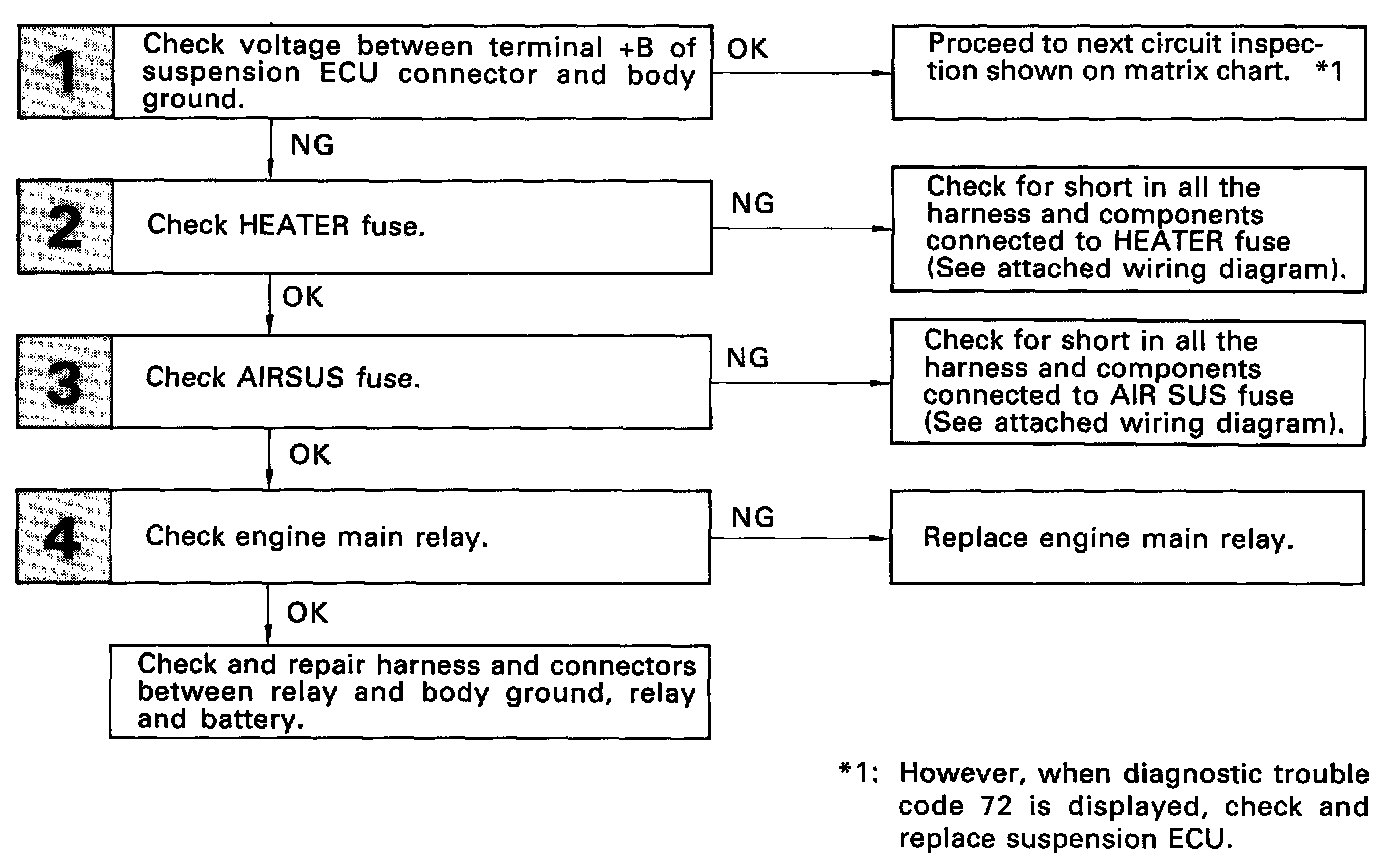

DIAGNOSTIC CHART

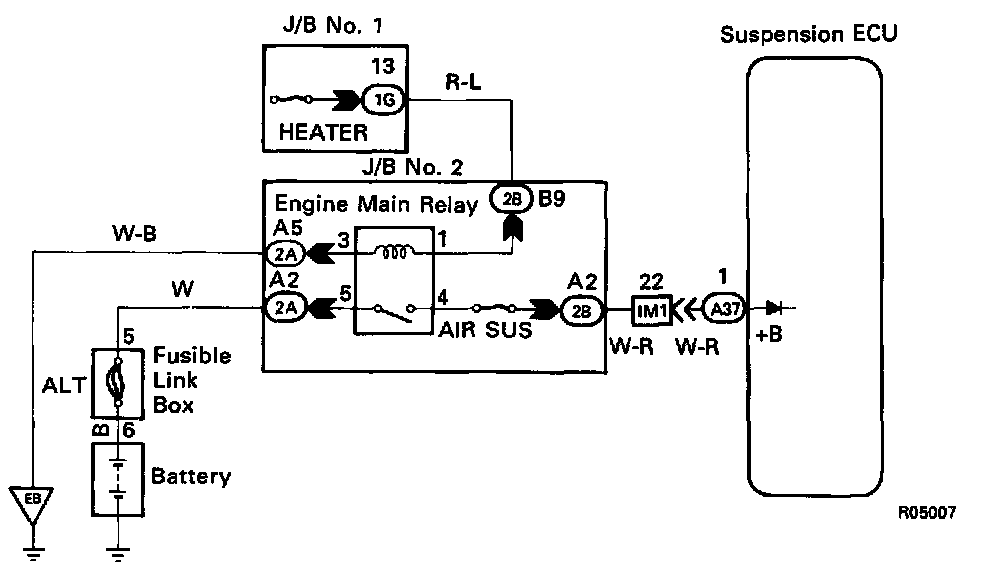

WIRING DIAGRAM

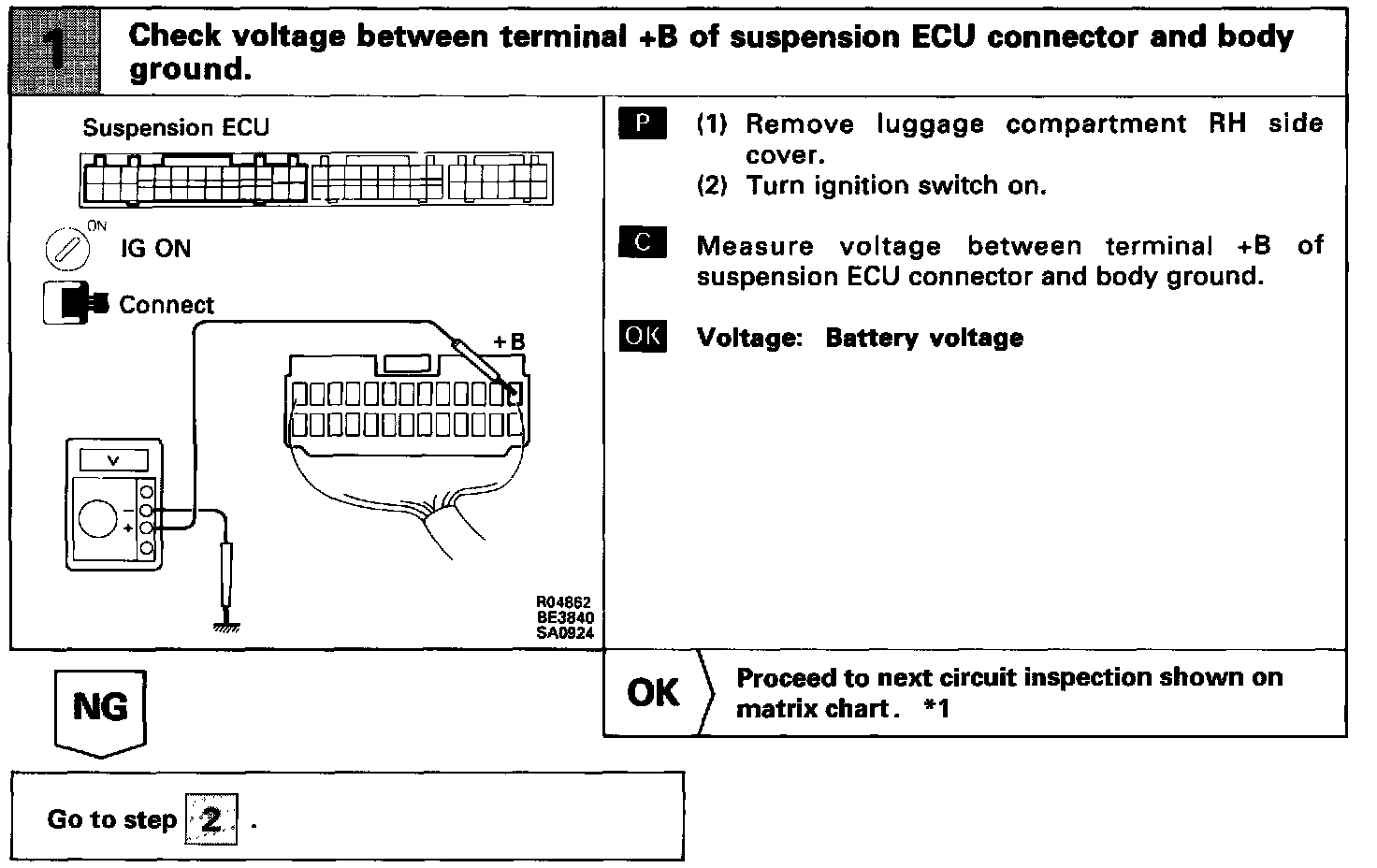

Step 1:

Step 2:

Step 3:

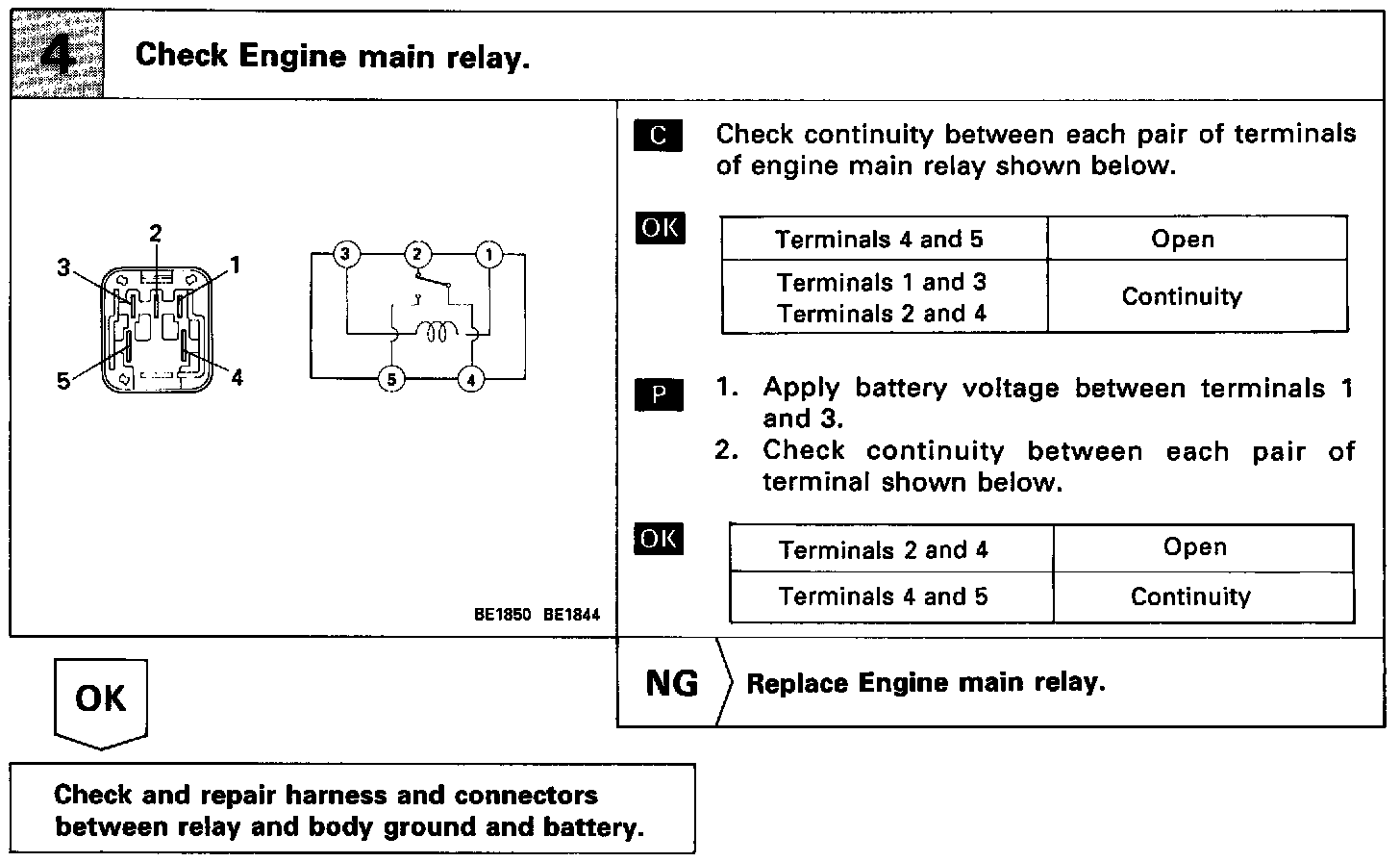

Step 4:

INSPECTION PROCEDURE
