DTC 54

DTC 54 Open in P Squib Circuit





CIRCUIT DESCRIPTION
The P squib circuit consists of the center airbag sensor assembly and front passenger airbag assembly (squib). It causes the SRS to deploy when the SRS deployment conditions are satisfied. For details of the function of each component, see FUNCTION OF COMPONENTS. Diagnostic trouble code 54 is recorded when an open is detected in the squib circuit.

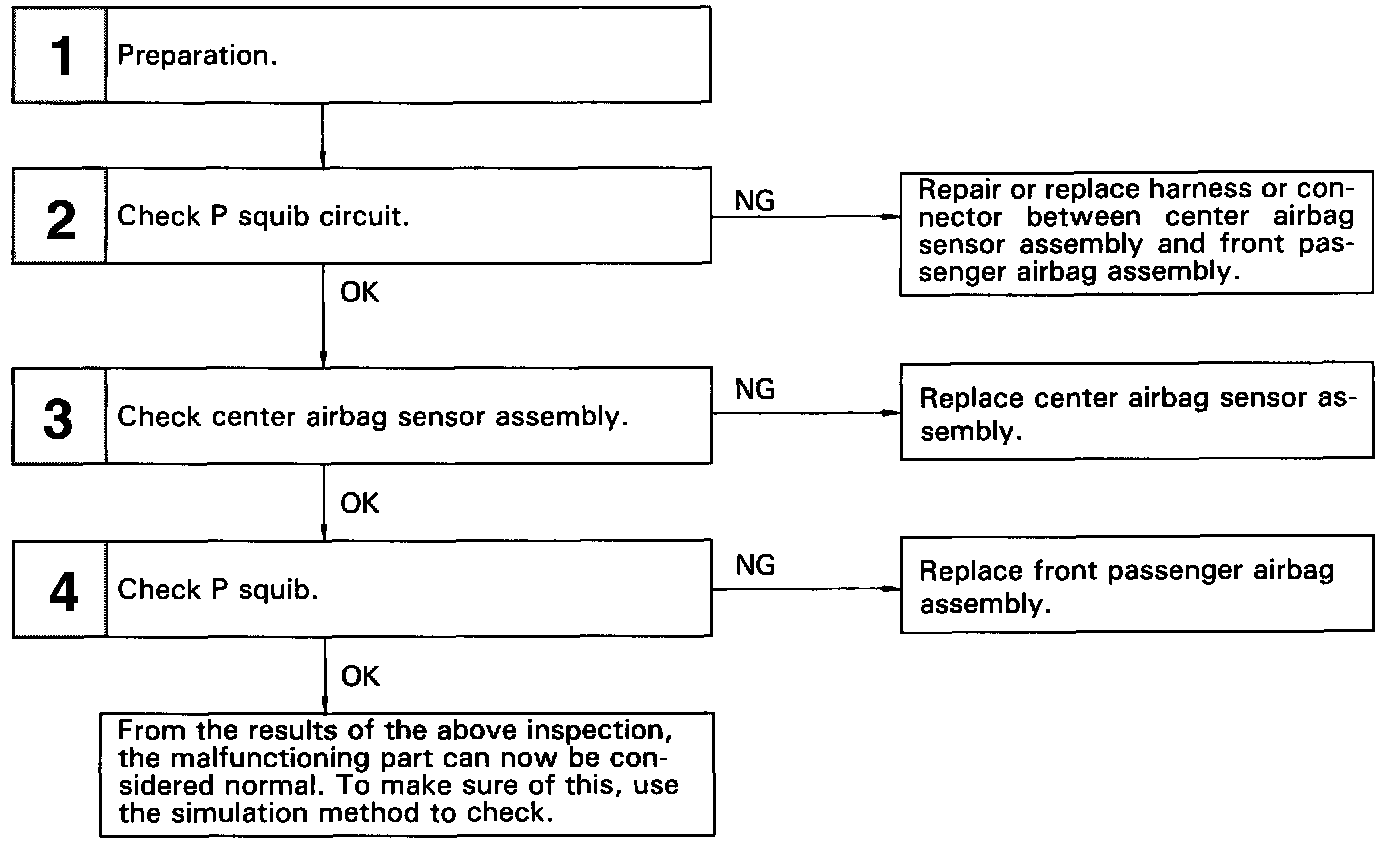

DIAGNOSTIC CHART

Step 1:

Step 2:

Step 3:

Step 4:

INSPECTION PROCEDURES
