DTC 14

DTC 14 Open in D Squib Circuit





CIRCUIT DESCRIPTION
The D squib circuit consists of the center airbag sensor assembly, spiral cable and the steering wheel pad (squib). It causes the SRS to deploy when the SRS deployment conditions are satisfied. For details of the function of each component, see FUNCTION OF COMPONENTS. Diagnostic trouble code 14 is recorded when an open is detected in the squib circuit.

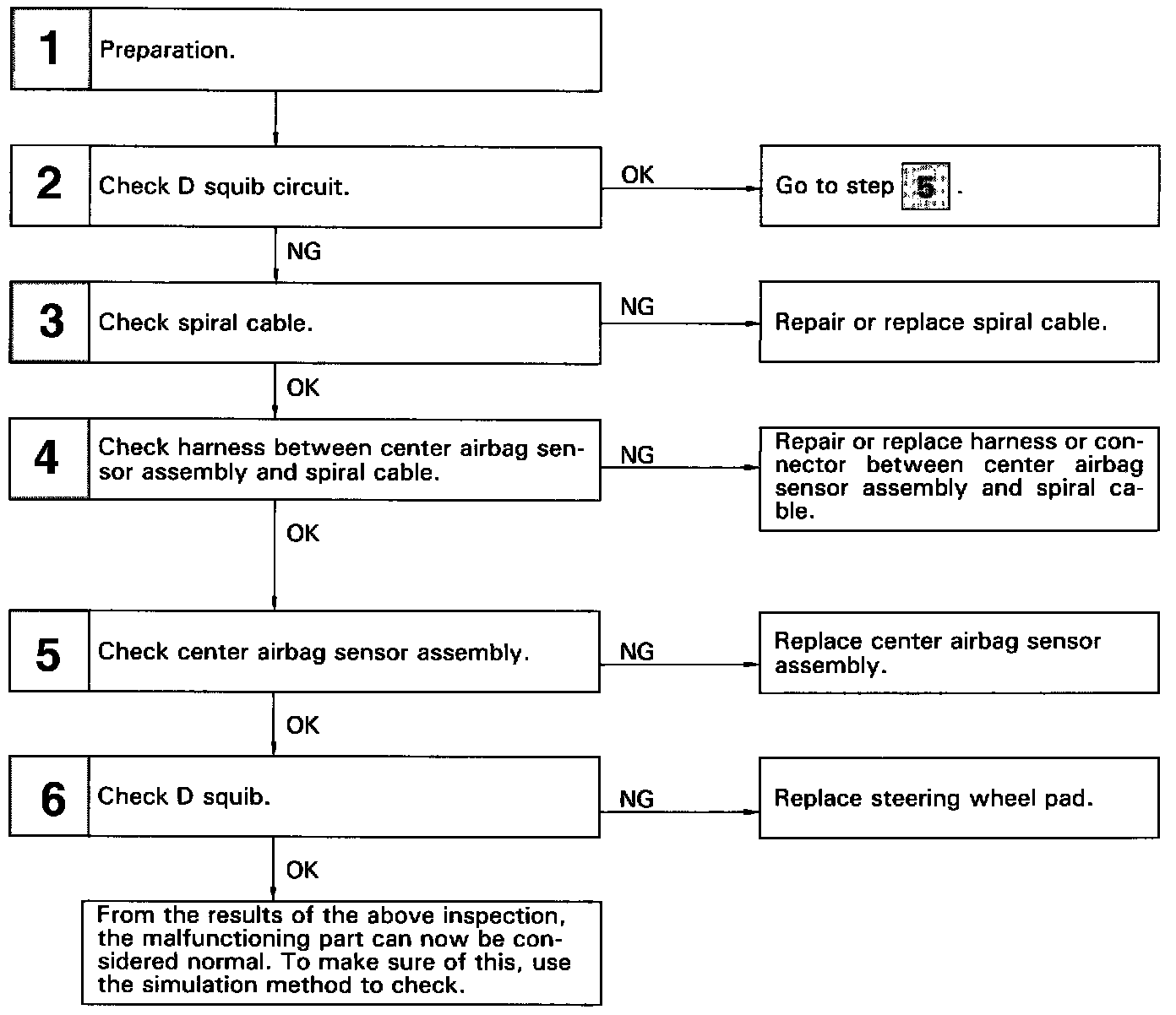

DIAGNOSTIC CHART

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

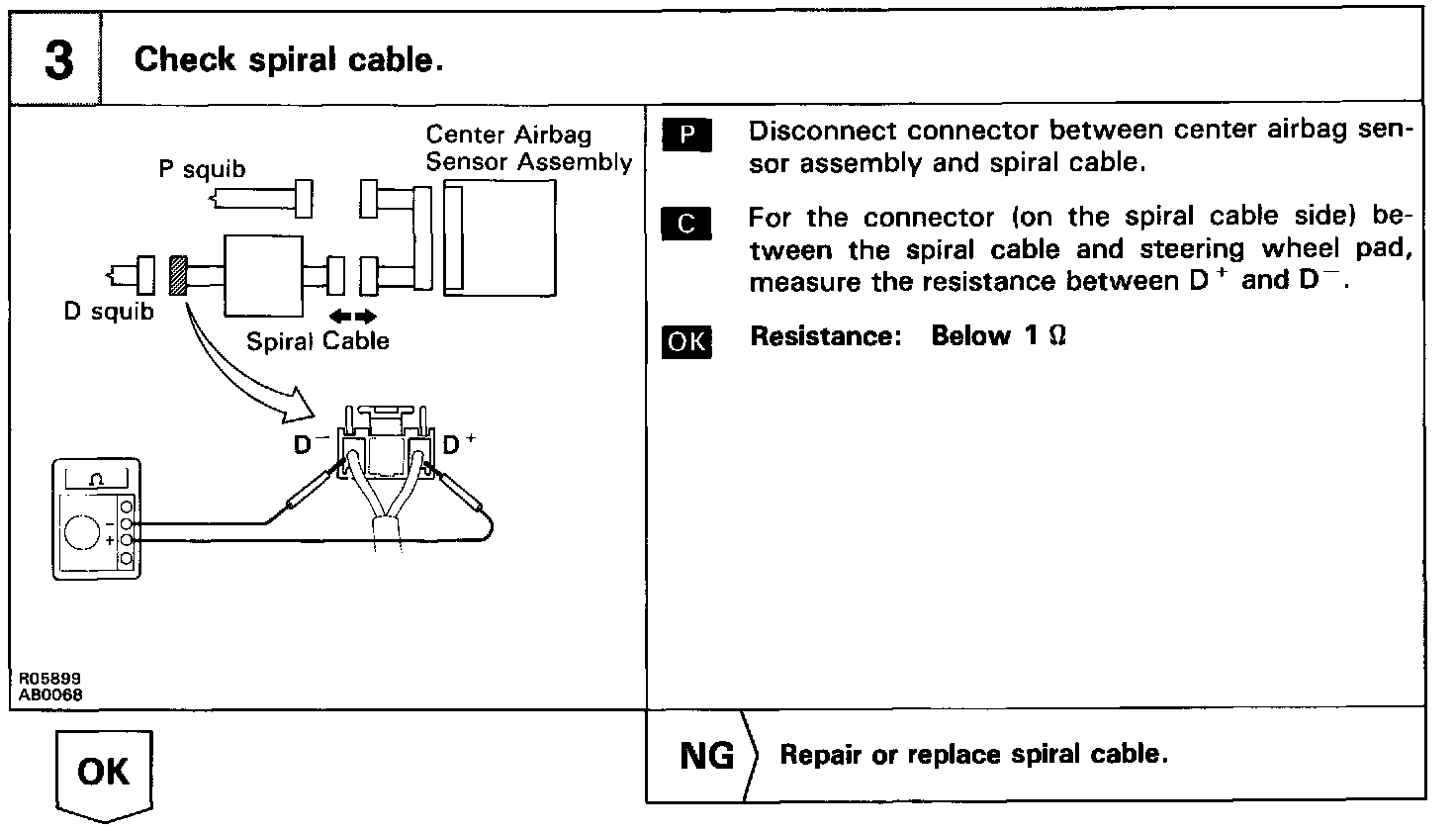

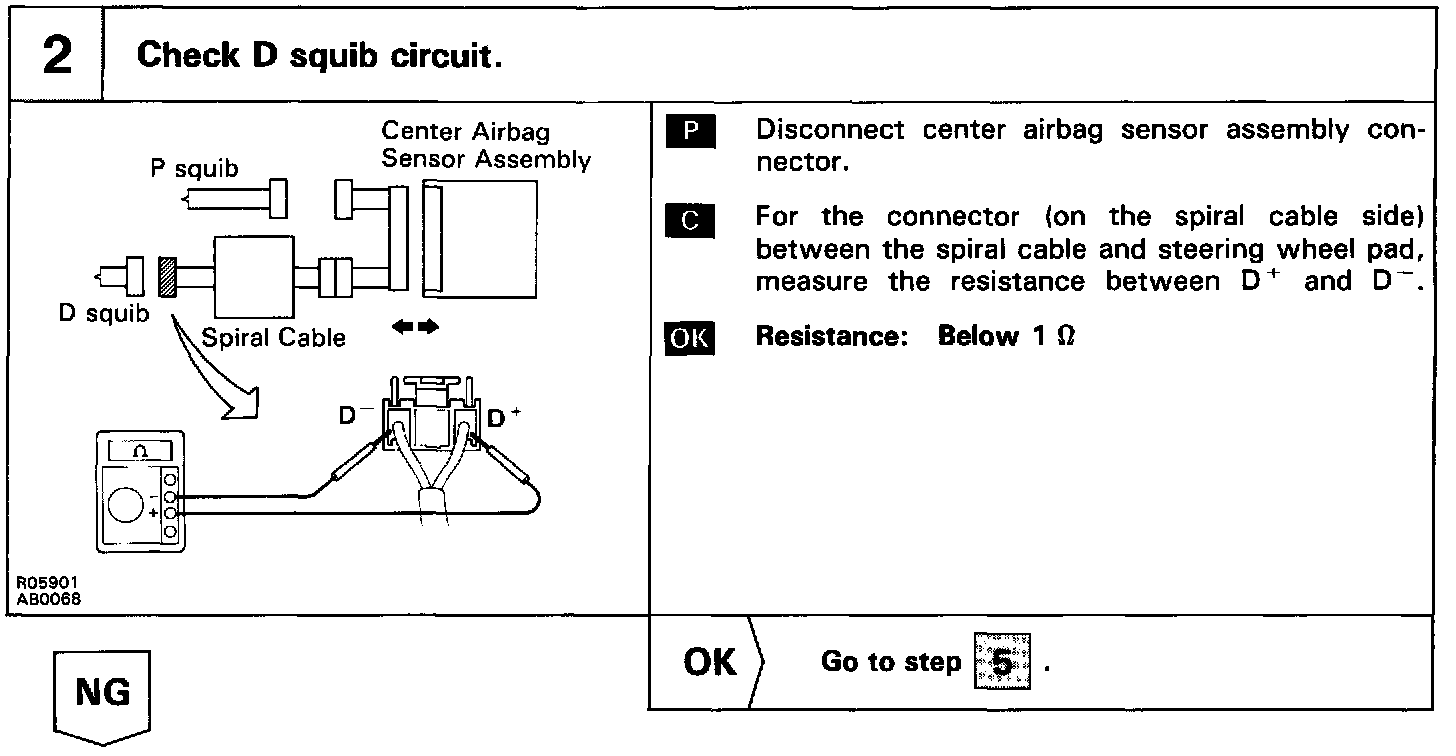

INSPECTION PROCEDURES
