DTC 13

DTC 13 Short In D Squib (Between D + and D- Wire Harness)





CIRCUIT DESCRIPTION

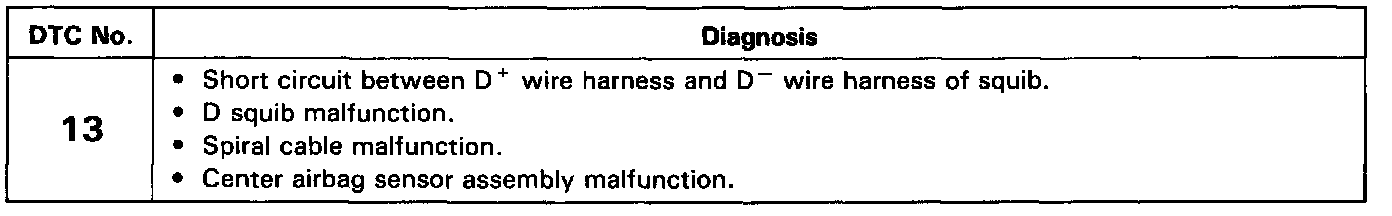

The D squib circuit consists of the center airbag sensor assembly, spiral cable and the steering wheel pad (squib). It causes the SRS to deploy when the SRS deployment conditions are satisfied. For details of the function of each component, see FUNCTION OF COMPONENTS. Diagnostic trouble code 13 is recorded when a short is detected in the D+ wire harness and D- wire harness of the squib circuit.








DIAGNOSTIC CHART

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

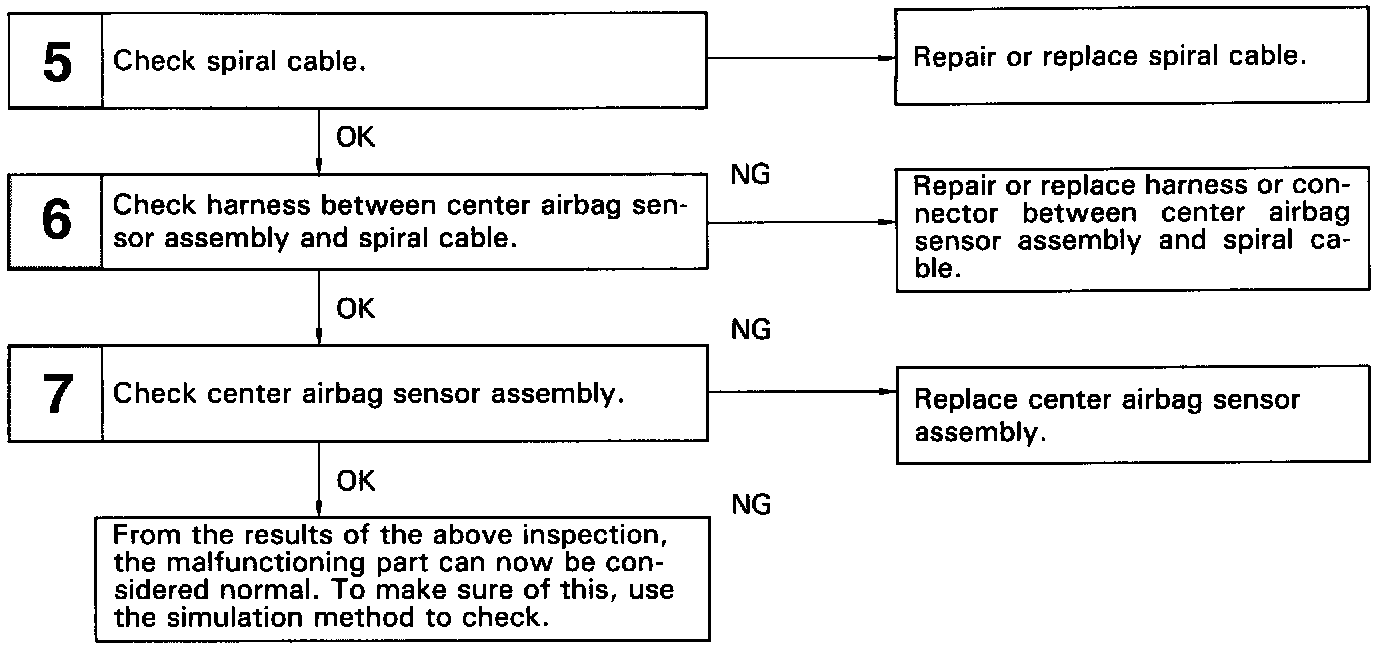

Step 6:

Step 7:

INSPECTION PROCEDURES
