Suspension Control ( Automatic - Electronic Level ): Diagnostic Trouble Codes

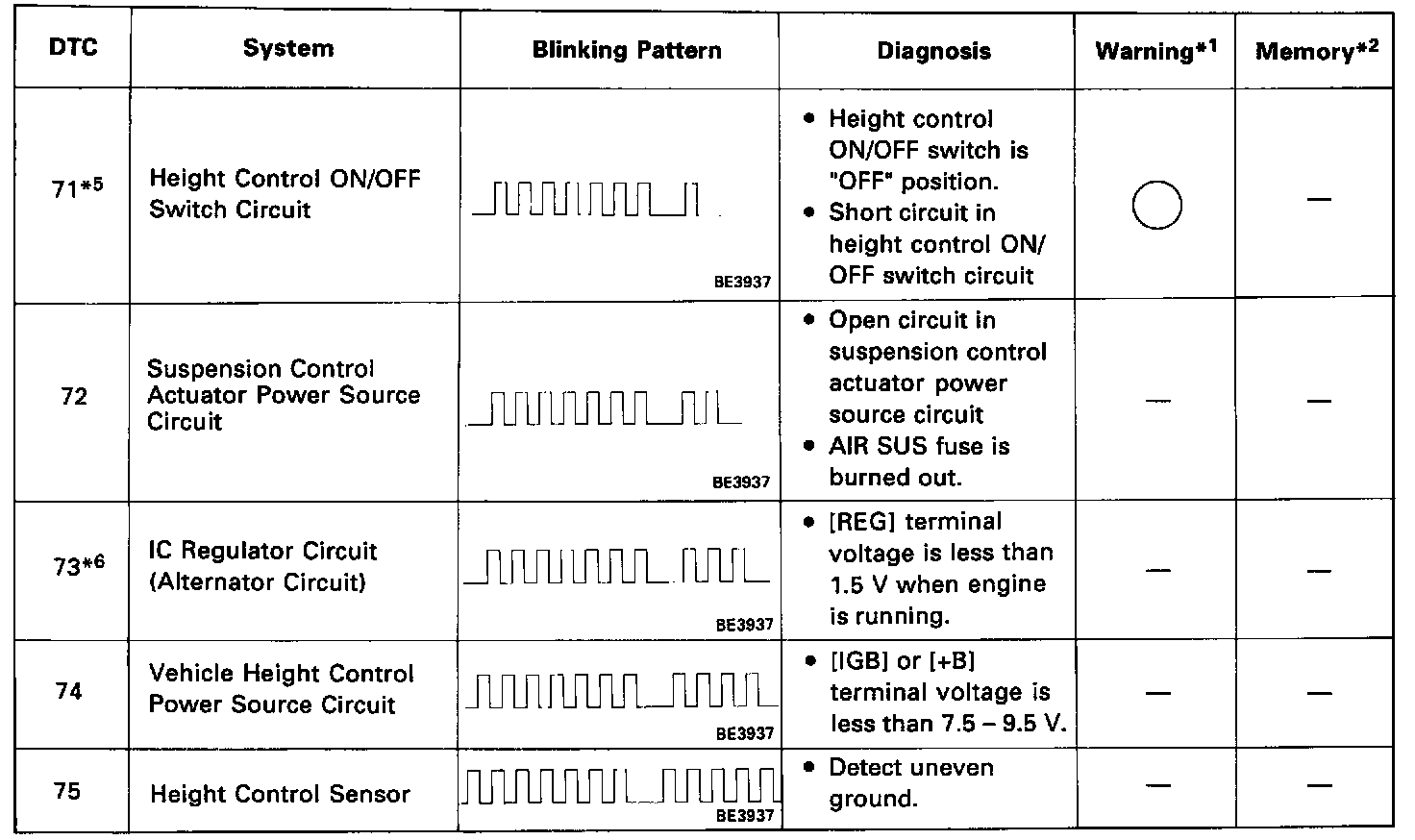

DIAGNOSTIC TROUBLE CODES








*1: For codes in the Warning column with a 0 mark, the height control indicator "NORM" light blinks at 1 second intervals. For codes with the "-" mark, it does not blink.

*2: Codes with the 0 mark in the Memory column are stored in memory even when the ignition switch is off.

*3: Since the relief pressure of the compressed air is 10 kgf/cm2, if vehicle height control is attempted on a steeply sloping road, or when the vehicle is overloaded. code "51" may be output and vehicle height control may be suspended. (This is not abnormal.) However, in this case, approximately 70 minutes after the ignition switch is turned on, vehicle height control is resumed.

*4: If vehicle height control is operated while removing wheels or while jacking up the vehicle, code "52" may be output, but this is not abnormal. When code "52" is output, vehicle height control is not carried out. However, control is resumed if the ignition switched is turned off, then on again.

*5: When the height control ON/OFF switch is in the "off" position, diagnostic trouble code "71" is output.

*6: When the engine is not running, diagnostic trouble code "73" is output.
