FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
1994
>>
GS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
A/T Technical Data
>>
Gear Ratio/Clutch Band
Gear Ratio/Clutch Band

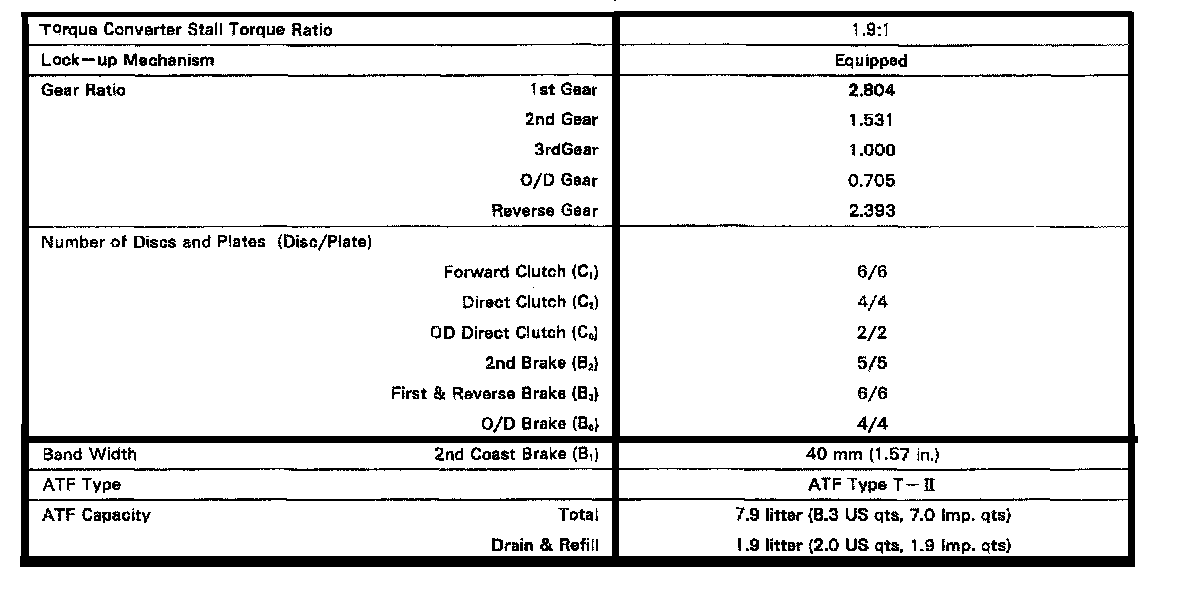

A340E 4-spd A/T, Gear Ratio/Band Width:

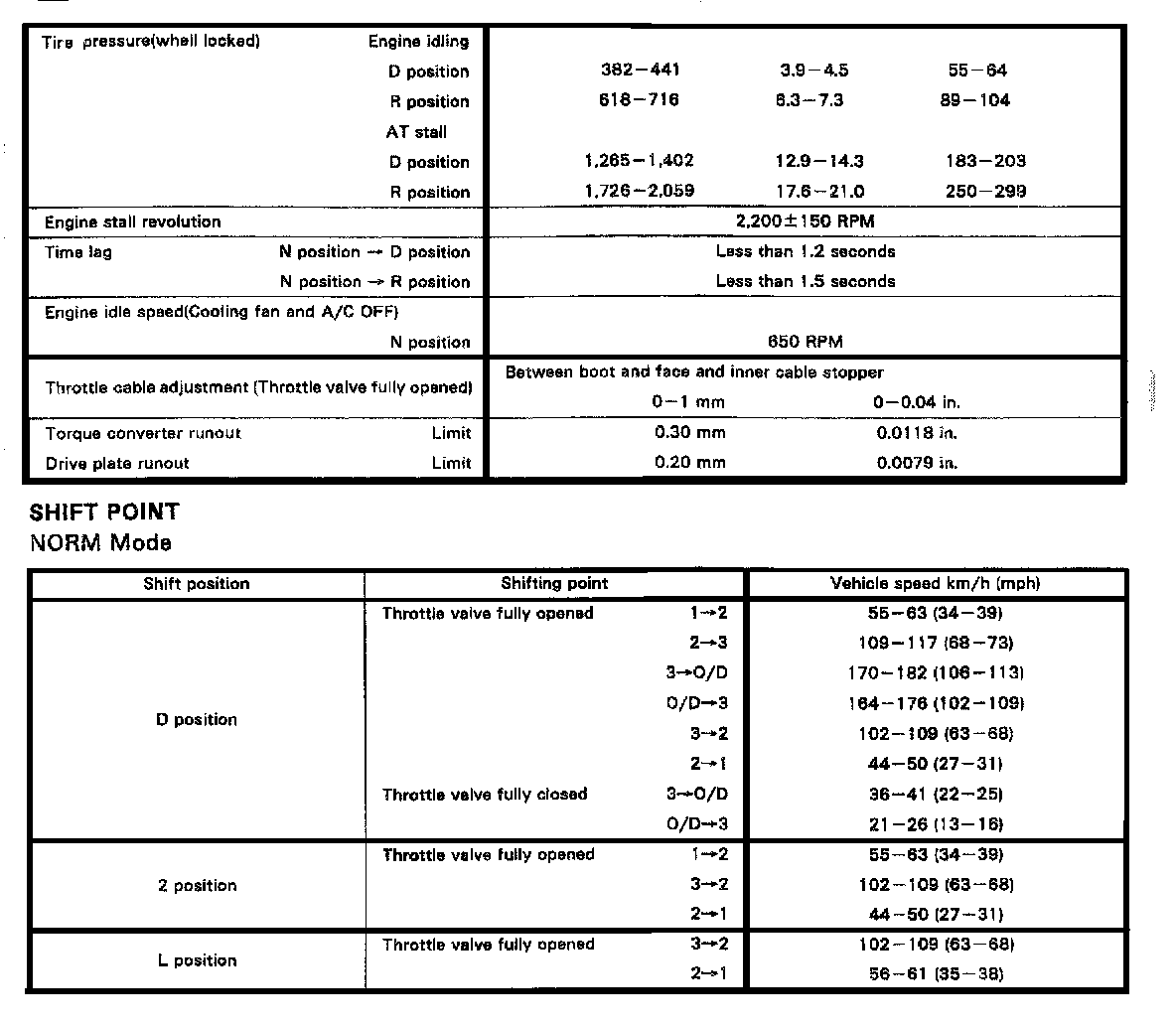

A340E 4-spd A/T, Line Pressure/Shift Point:
