Fuel Pump Control Unit: Description and Operation

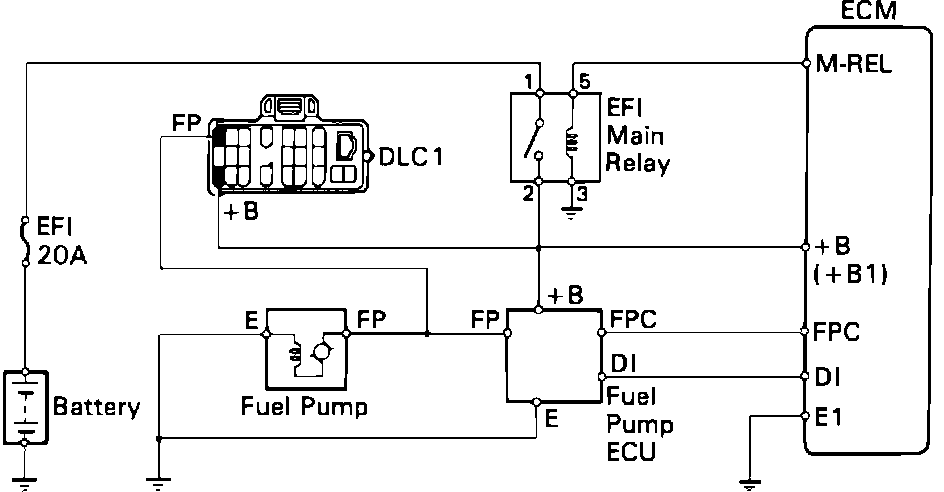

Fuel Pump ECU:

PURPOSE
The Fuel Pump Control Unit, located in the left rear of the luggage compartment, controls fuel pump output.

OPERATION
During idling and light engine load, the fuel pump demand is low, so it receives a lower voltage (about 9 volts) from the Fuel Pump Control Unit. During starting conditions, high speed and load conditions the Fuel Pump Control Unit delivers a full 12 volt signal to the Fuel Pump, which causes an increase in output. This signal is switched by the Engine Control Module.
