Installation

PROCEDURE

1. Install Throttle Body.

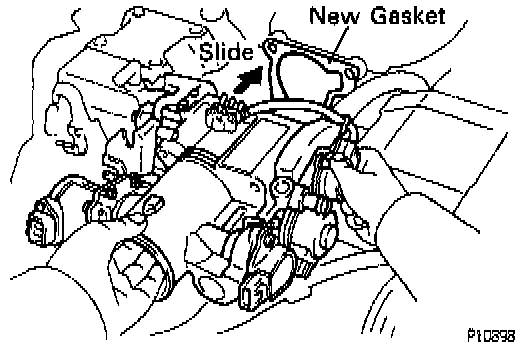

- Install a new gasket to the intake air connector.
- Slide the Throttle Body onto the stud bolts on the intake air connector.

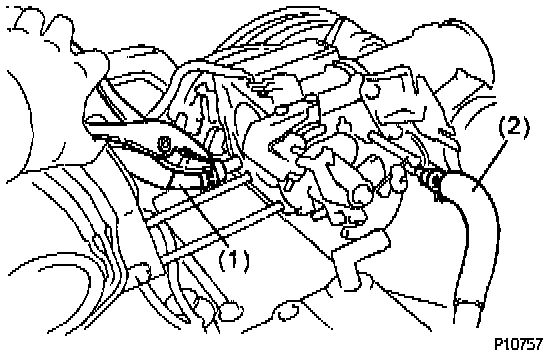

- Connect the following hoses:
Water bypass hose from water outlet (1)
Water bypass hose (from No. 2 water bypass pipe (2)





- Install the Throttle Body with the 2 bolts and 2 nuts.

Torque: 21 Nm (15 ft lb)

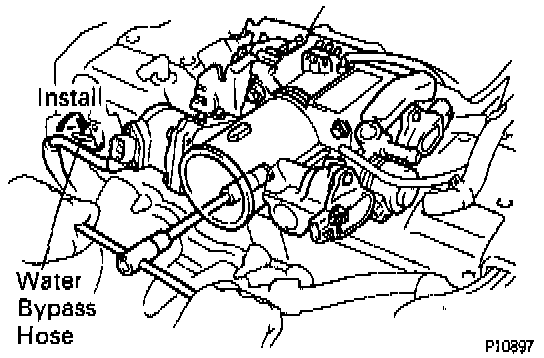

- Install the water bypass hose (the No. 2 water bypass pipe) to the clamp on the engine hanger.

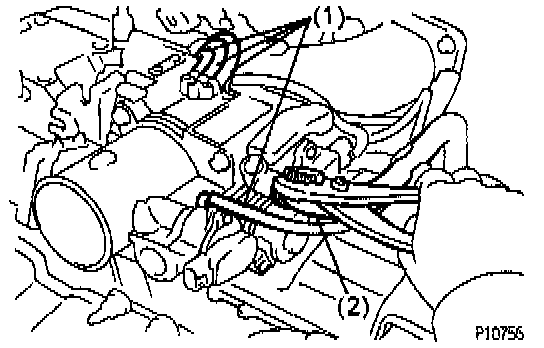

- Connect the following hoses:
4 vacuum hoses (1)
Air hose from intake manifold (California only) (2)

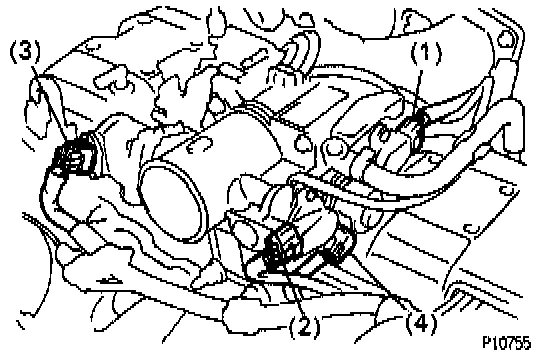

- Connect the following connectors:
Throttle Position Sensor connector (1)
Sub-Throttle Position Sensor connector (w/TRAC) (2)
Sub-Throttle Actuator connector (w/TRAC) (3)
Idle Air Control Valve connector (4)

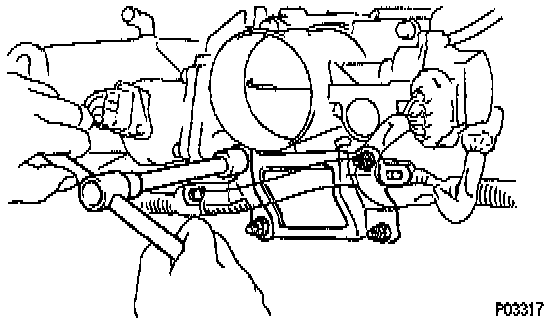

2. Install the Throttle Body bracket with the 4 nuts.

Torque: 21 Nm (15 ft lb)





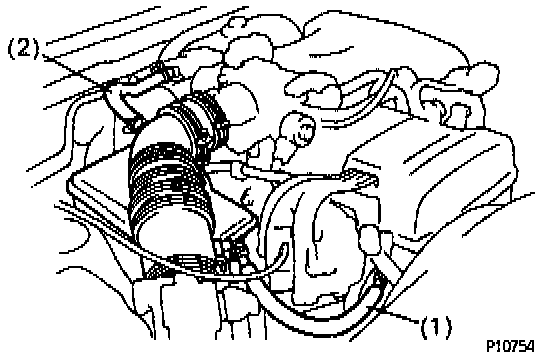

3. Install intake air connector pipe with the 2 hose clamps and connect the following hoses:
PS air hose to air connector pipe (1)
PCV hose to No.2 cylinder head cover (2)

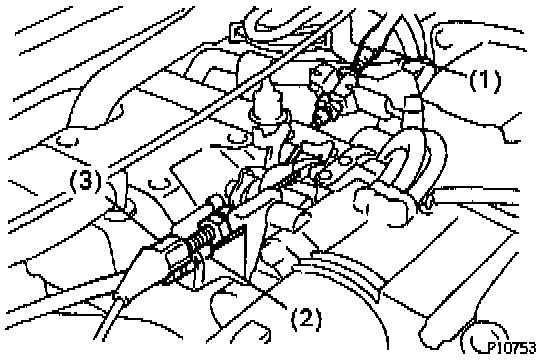

4. Connect the following control cables to Throttle Body.
Accelerator cable (1)
A/T throttle control cable (2)
Cruise control actuator cable (3)
5. Fill with engine coolant.
6. Connect cable to negative terminal of battery.
