Removal

PROCEDURE

CAUTION: After affecting any repair that requires disassembly of fuel related components, inspect carefully for fuel leaks upon completion.

CAUTION: Do not smoke or work near an open flame when working on the fuel pump.

1. Disconnect negative (-) terminal cable from battery.

CAUTION: Work must be started after 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

2. Remove luggage compartment floor mat.

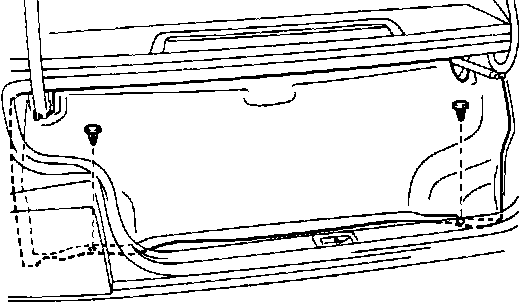

Compartment Cover:

3. Remove luggage compartment trim front cover.
- Remove 2 clips and the cover.

Fuel Pump Connector:

4. Disconnect fuel pump connector.

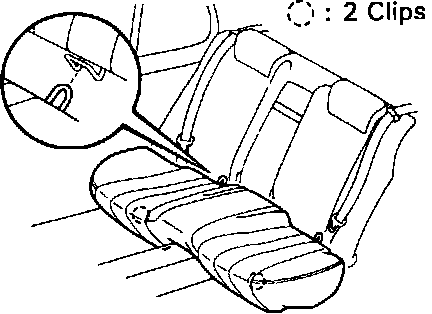

Rear Seat Cushion:

5. Remove rear seat cushion. Pull up the front portion of the rear seat cushion.

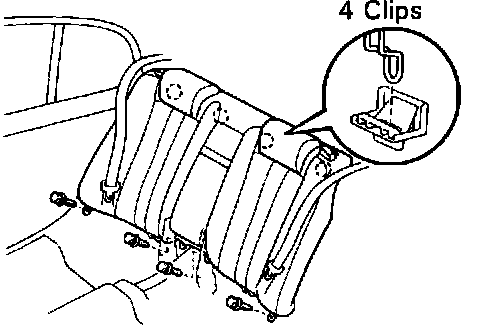

Rear Seatback:

6. Remove rear seatback.
- Disconnect the seat belt from the belt guide.
- Remove 4 bolts.
- Pull up the seatback to remove it.

7. Remove room partition trim.

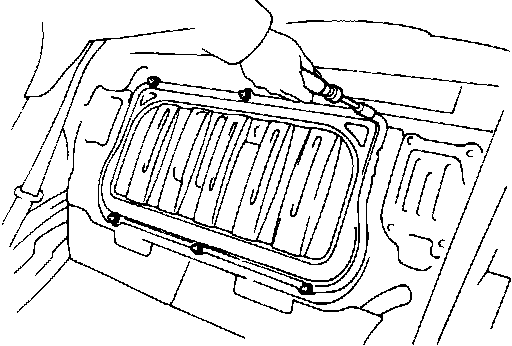

Partition Cover:

8. Remove room partition cover.
- Remove the 6 nuts.

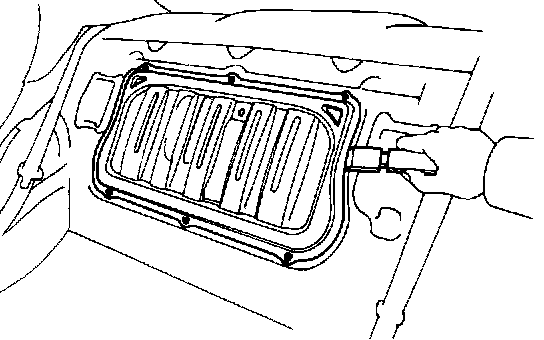

Partition Cover Removal:

- Using a scraper, pry out the partition cover.
9. Remove Fuel Pump.
- Disconnect the wire clip from the Fuel Tank.

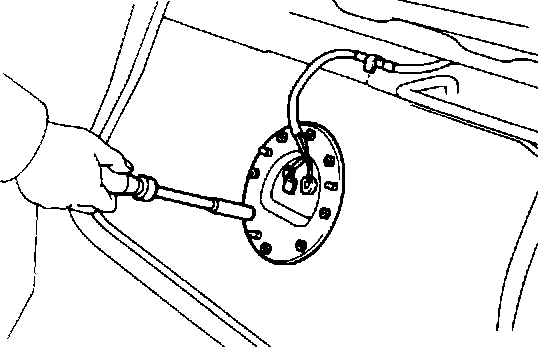

Fuel Pump Set Plate:

- Remove the 8 bolts, and disconnect the Fuel Pump set plate from the Fuel Tank.

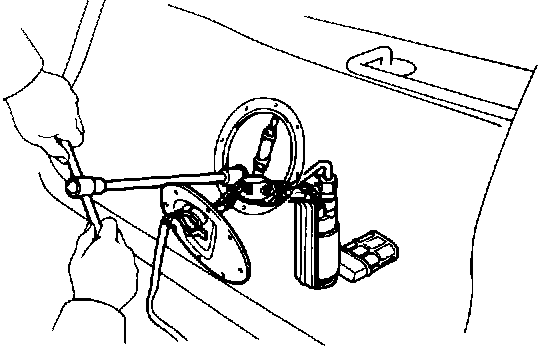

Pump Bracket Removal:

- Remove the 3 nuts, and disconnect the Fuel Pump bracket from the Fuel Tank.
- Disconnect the Fuel Pump hose from the Fuel Pump bracket, and remove the Fuel Pump, bracket and set plate assembly.
- Remove the gasket from the pump set plate.
