EGR Valve: Service and Repair

PROCEDURE

Removal

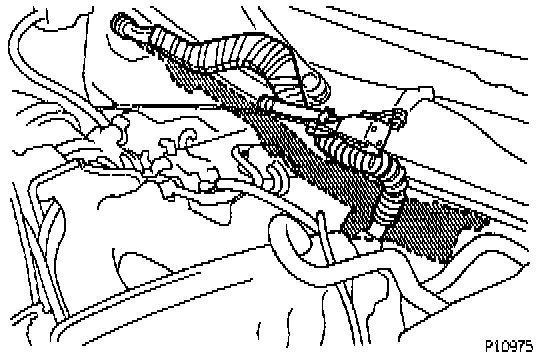

1. Disconnect engine wire and heater water valve from cowl panel.

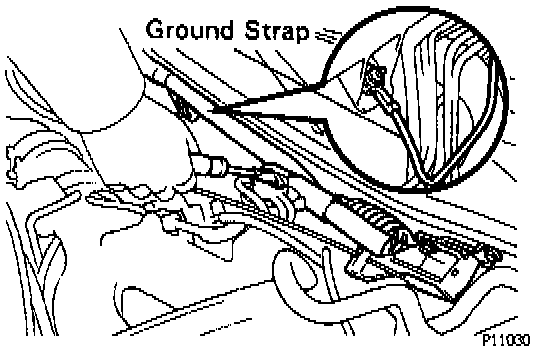

- Remove the two nuts and disconnect the engine wire protector and ground strap.
- Remove the two bolts and disconnect the heater water valve.

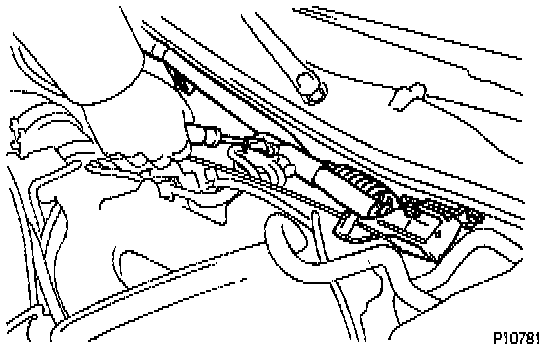

- Pull out the engine wire protector and heater water hose from the cowl panel.

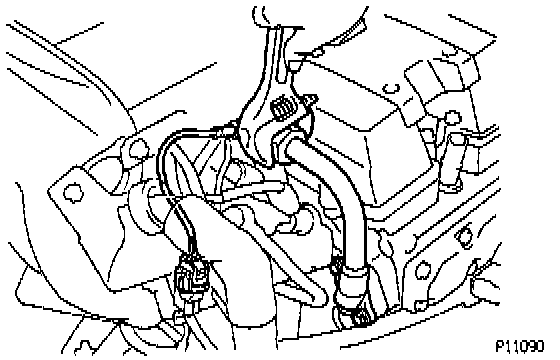

2. Remove the Exhaust Gas Recirculation Pipe.

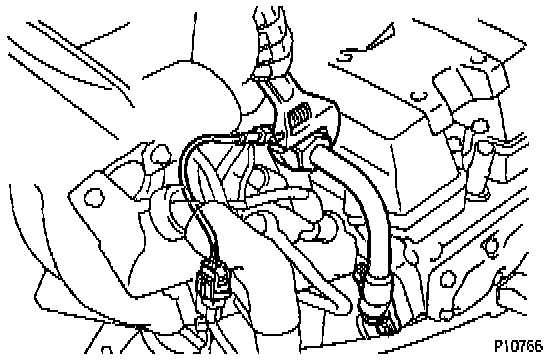

- Loosen Exhaust Gas Recirculation union nut.
- Remove Exhaust Gas Recirculation pipe mounting bolts.
- Remove pipe and gaskets.
3. Remove the Exhaust Gas Recirculation Temperature Sensor (California models only).
4. Remove Exhaust Gas Recirculation Valve.

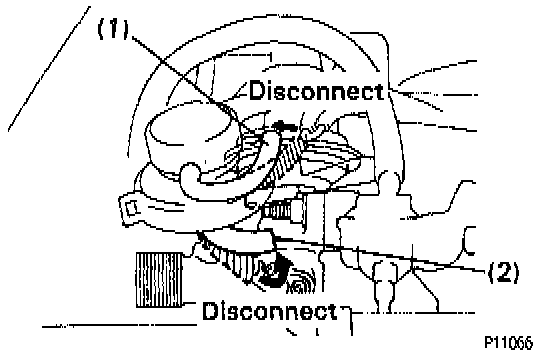

- Disconnect vacuum hose from Valve.
- Remove pressure hose.

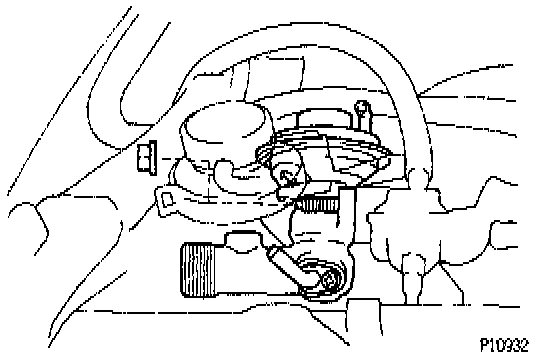

- Remove Exhaust Gas Recirculation Valve mounting nuts.
- Remove Valve and gaskets.

Installation
1. Reinstall the Exhaust Gas Recirculation Valve.





- Place a new gasket on the intake air connector.

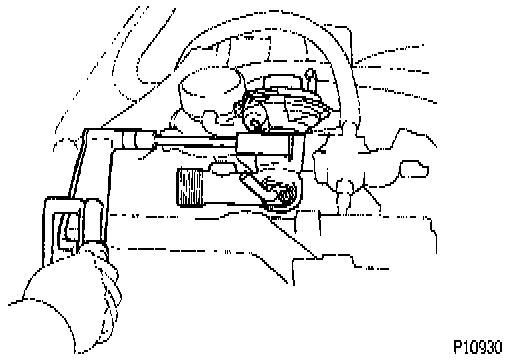

- Install the Exhaust Gas Recirculation Valve wiyh two nuts.

Torque: 18 Nm (13 ft lb)

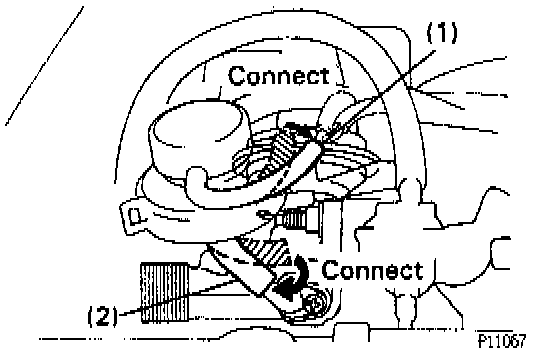

- Reconnect vacuum hose and pressure hose to Valve.
2. Reinstall the Exhaust Gas Recirculation Temperature Sensor (California models only).

Torque: 20 Nm (14 ft lb)

3. Reinstall the Exhaust Gas Recirculation Pipe.





- Temporarily install the union nut of the Exhaust Gas Recirculation Pipe.
- Install a new gasket and the Exhaust Gas Recirculation Pipe with the two bolts.

Torque: 21 Nm (15 ft lb)

- Tighten the union nut.

Torque: 64 Nm (47 ft lb)





4. Reinstall the engine wire and heater water valve to cowl panel.
