Inspection Using Oscilloscope

PROCEDURE

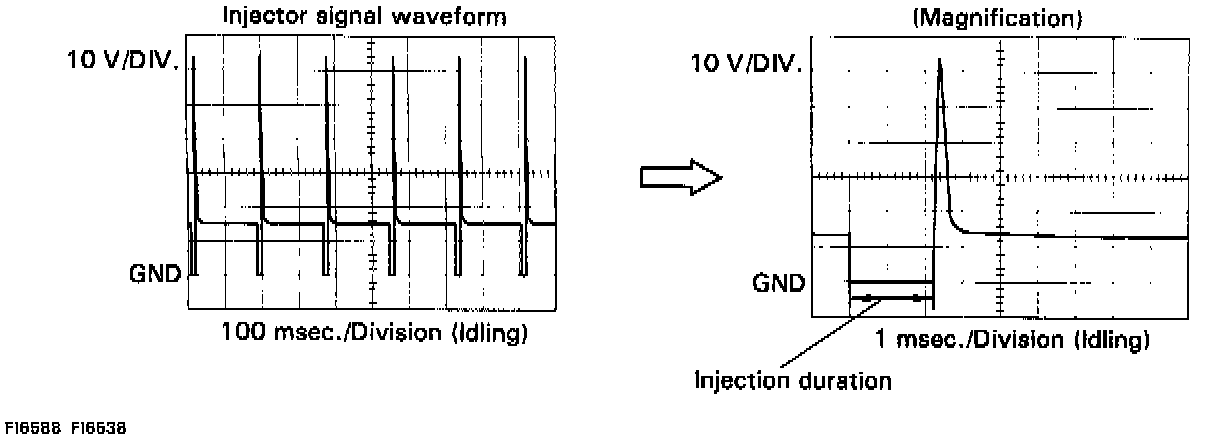

With the engine idling measure between terminals #10 - 60 and E01 of Engine Control Module. The correct waveform appears as shown in the illustration.
