Pinout Values and Diagnostic Parameters

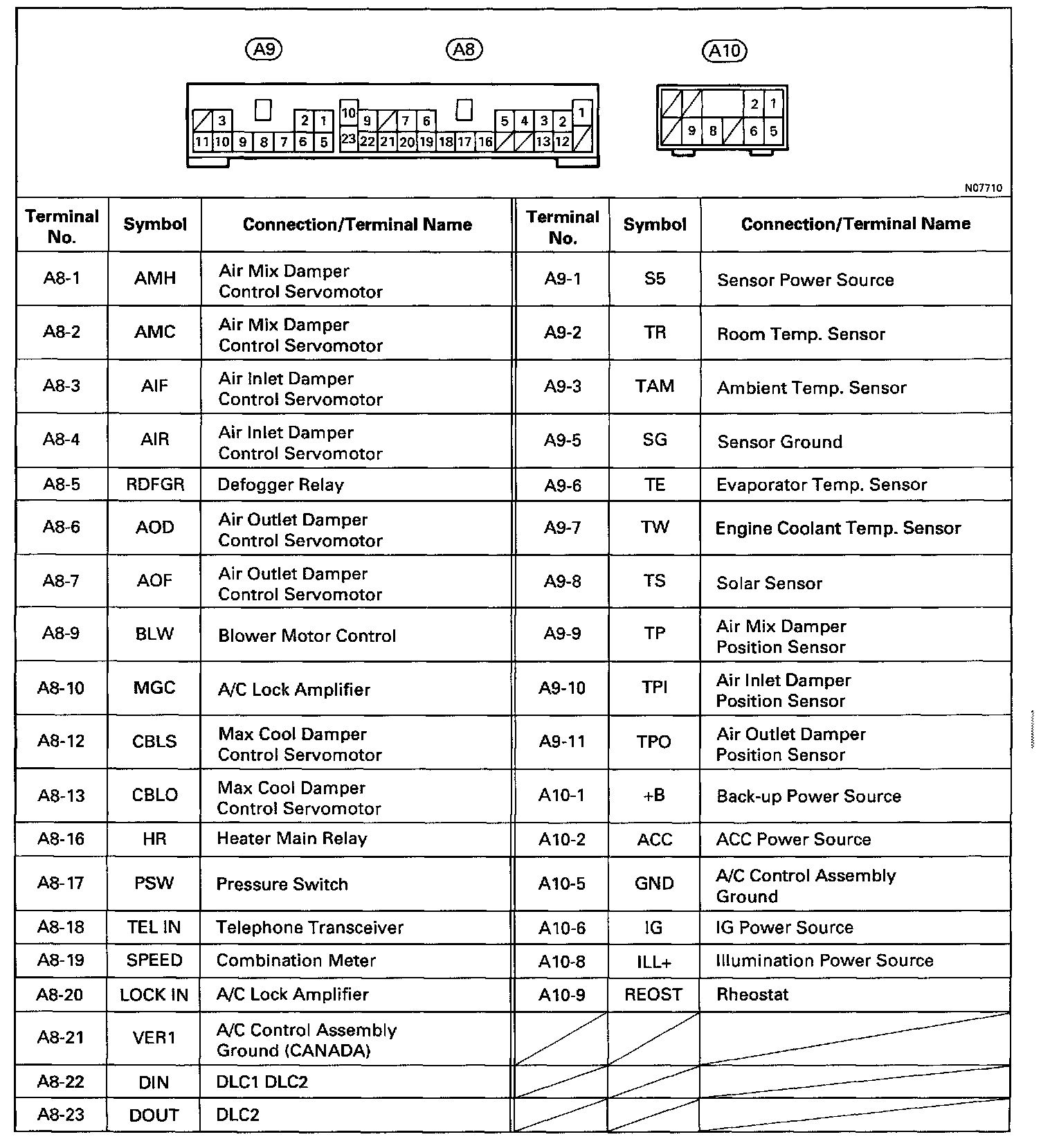

A/C CONTROL ASSEMBLY TERMINALS

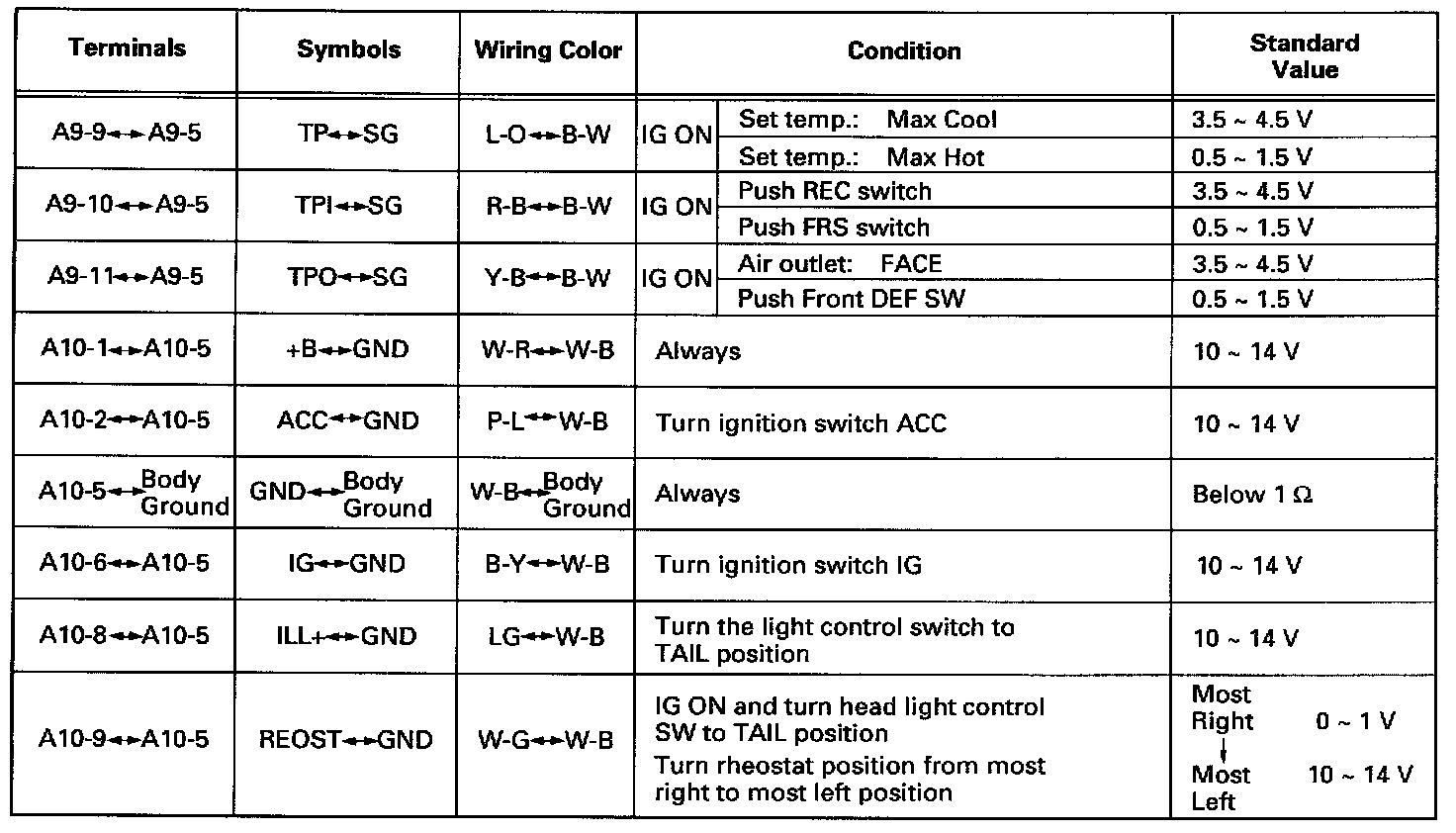

A/C CONTROL ASSEMBLY TERMINAL STANDARD VALUE
