Actuator Check

Sensor Check Mode


Turn the ignition switch on while pressing the air conditioning control AUTO switch and R/F SW simultaneously.


ACTUATOR CHECK

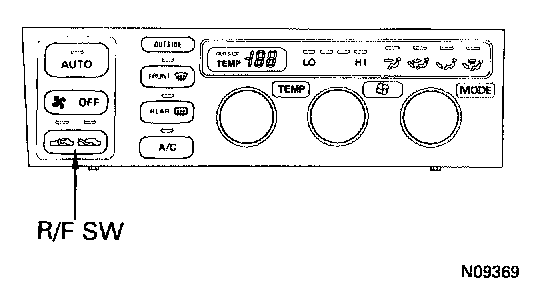

1. After entering the sensor check mode, press the R/F switch.





2. Since each damper, motor and relay automatically operates at 1 second intervals beginning in order from 20 in the temperature display, check the temperature and air flow visually and by hand.

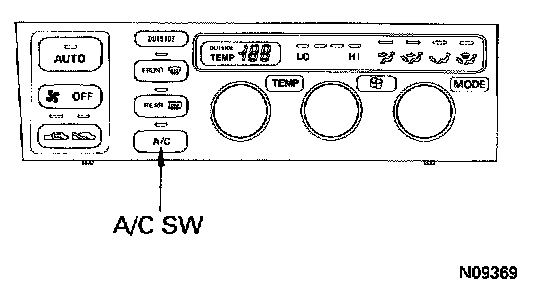

If a slower display is desired, press the A/C switch and change it to step operation. Each time the NC switch is pressed, the display changes by 1 step.

HINT:
- The buzzer sounds when the display trouble code changes.
- Code are displayed in order from the smaller to the larger numbers.
- To cancel the check mode, press the Off switch.
