ACC Power Source Circuit

ACC POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to the air conditioning control assembly.

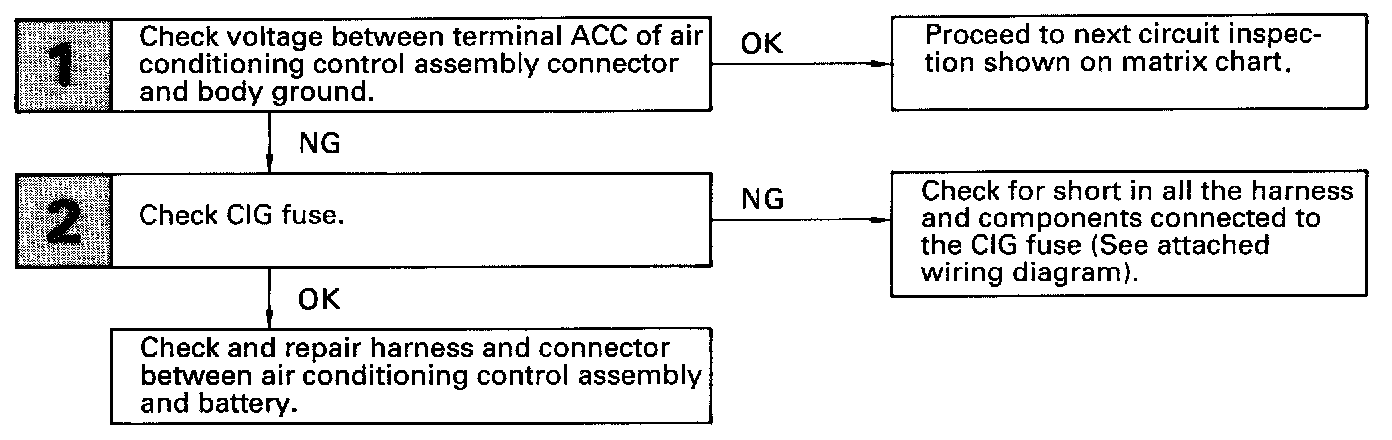

Diagnostic Chart:

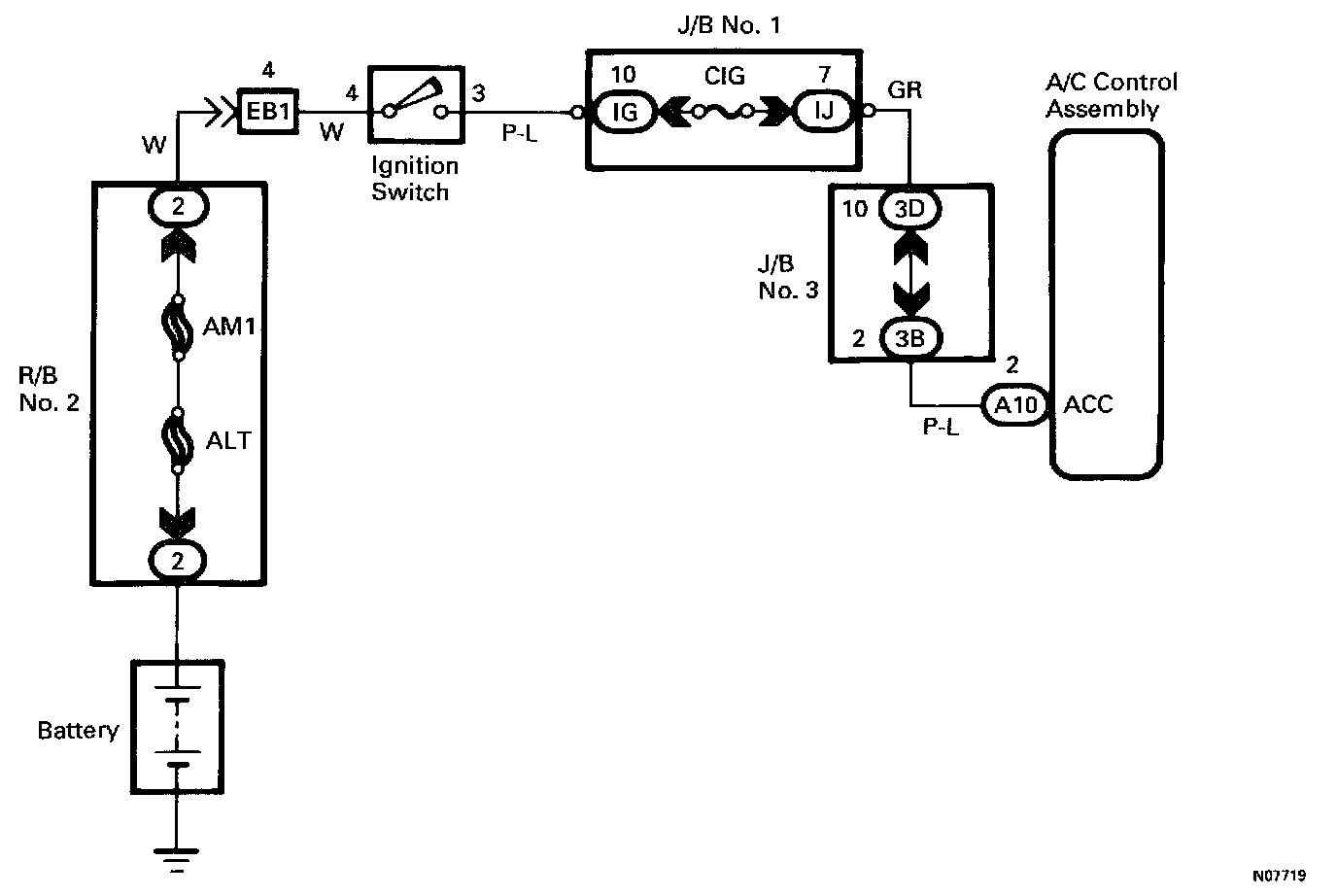

Wiring Diagram:





INSPECTION PROCEDURE

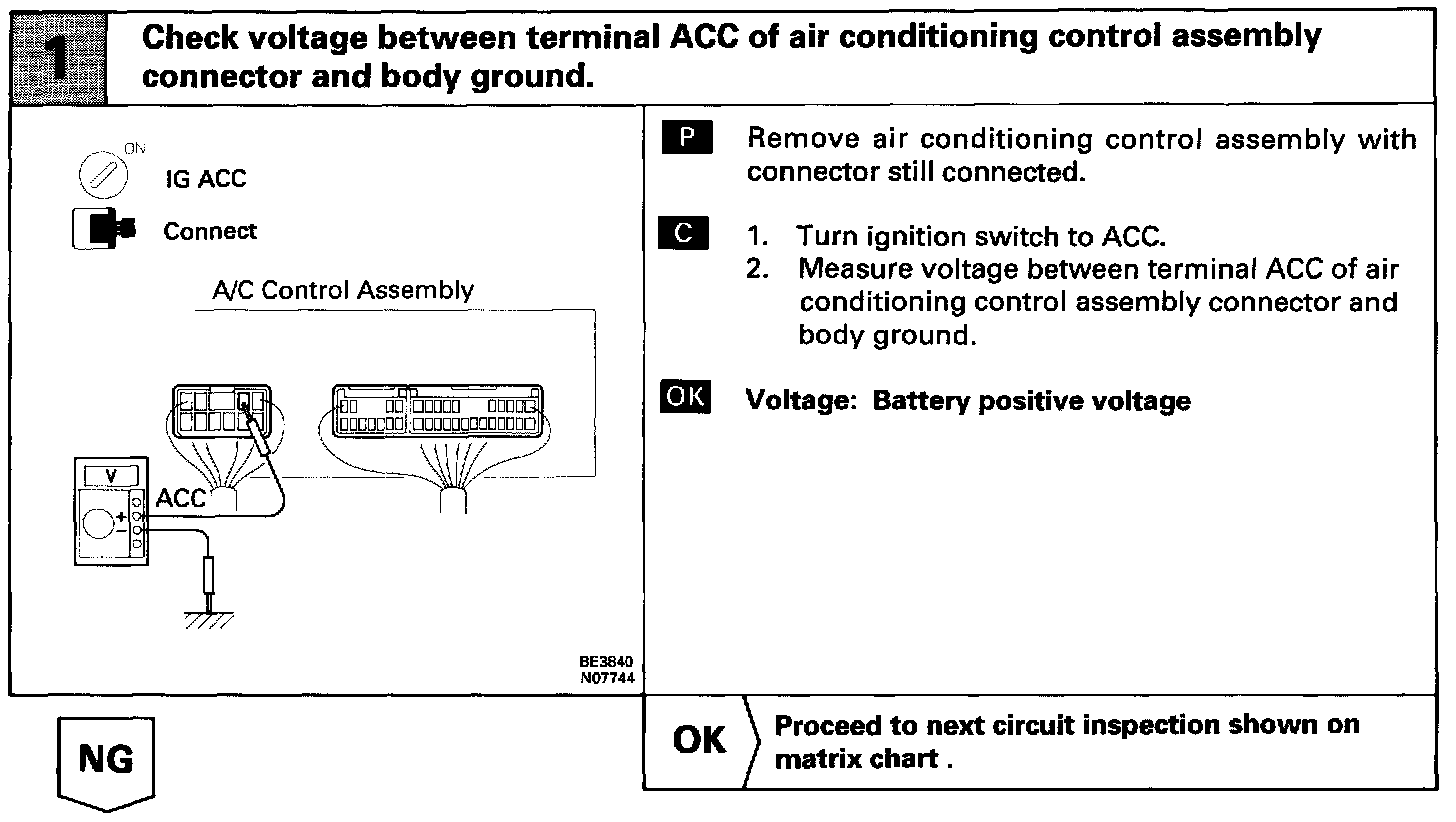

Step 1:

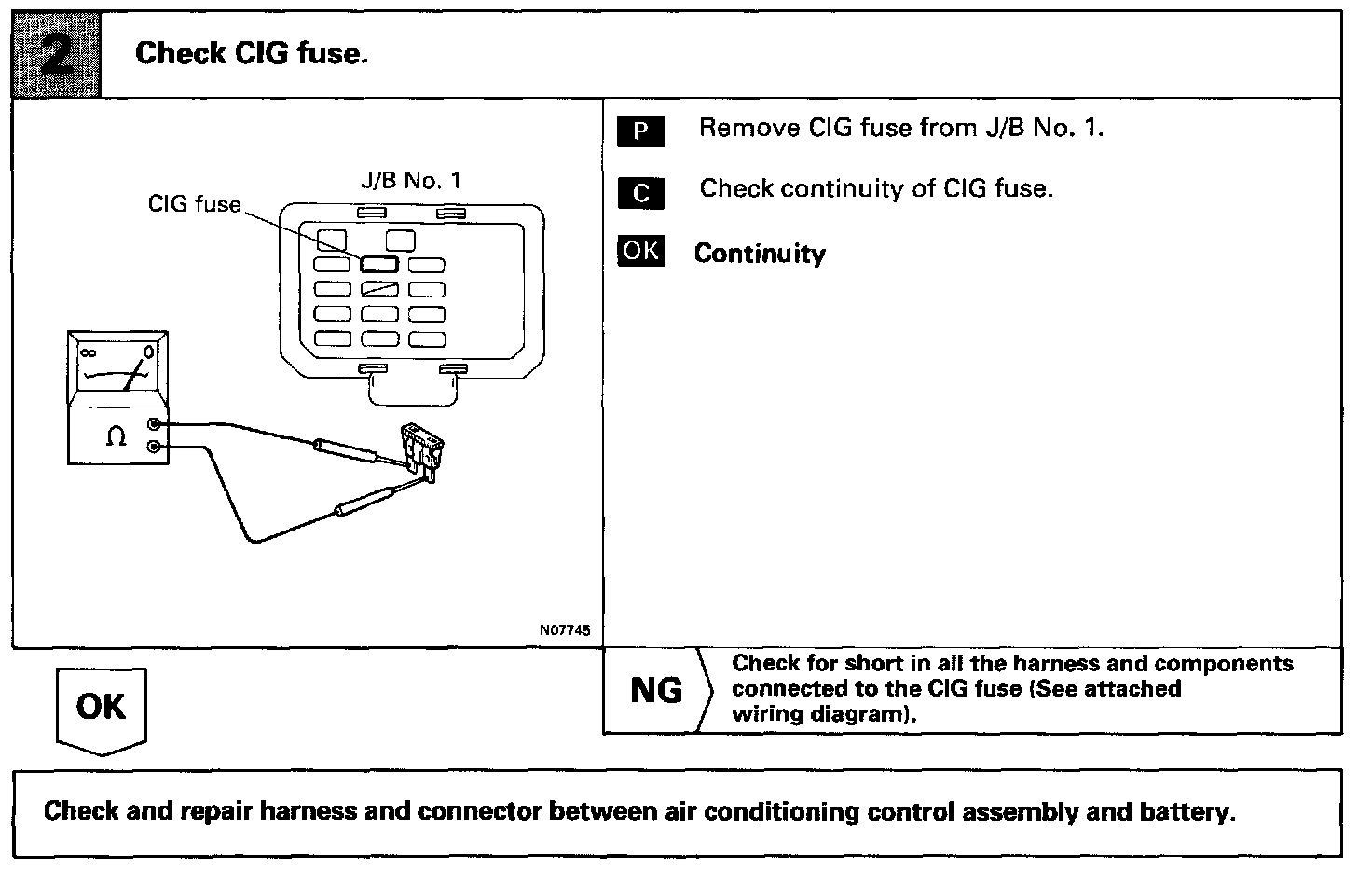

Step 2:
