Instrument Panel

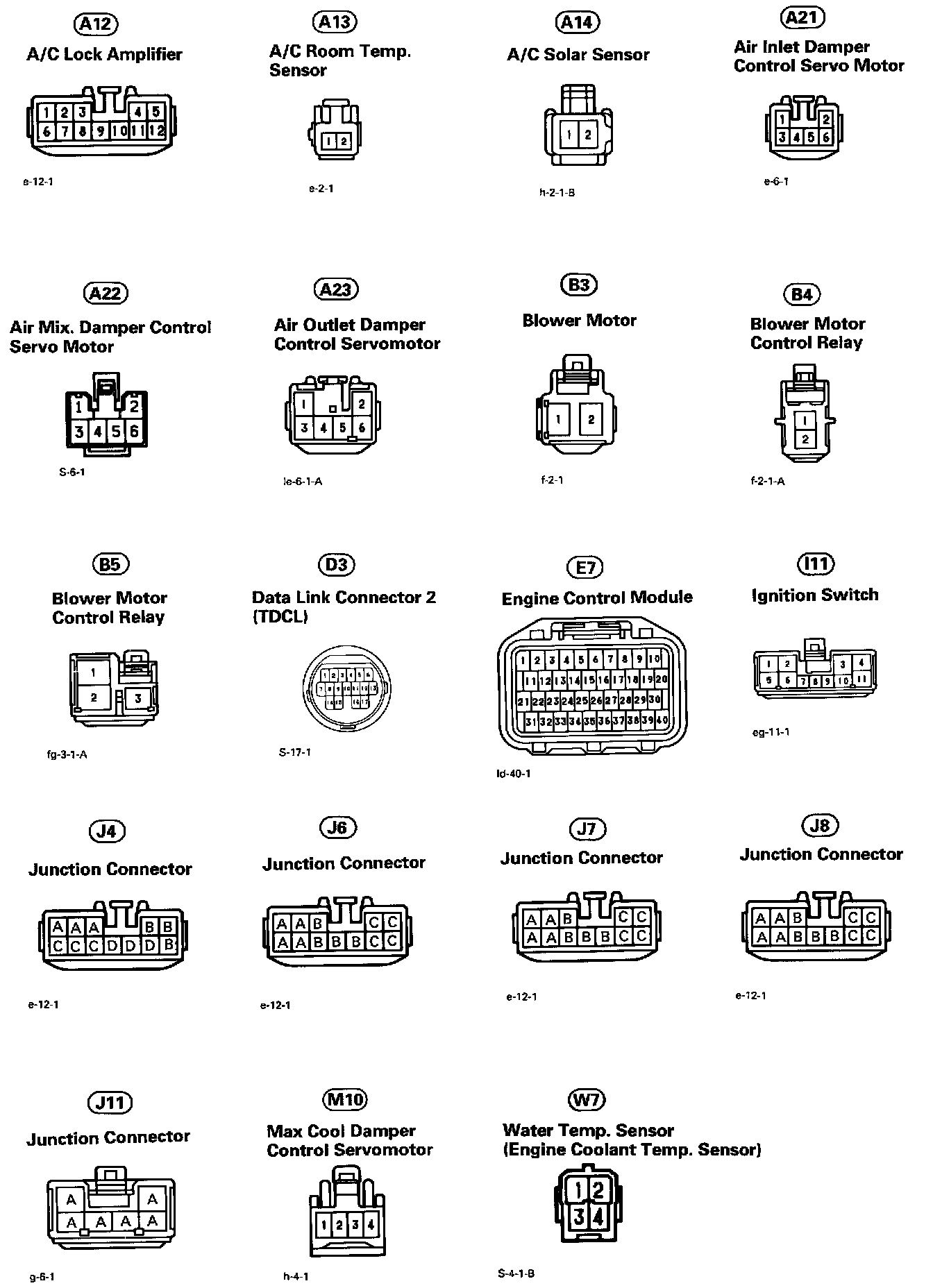

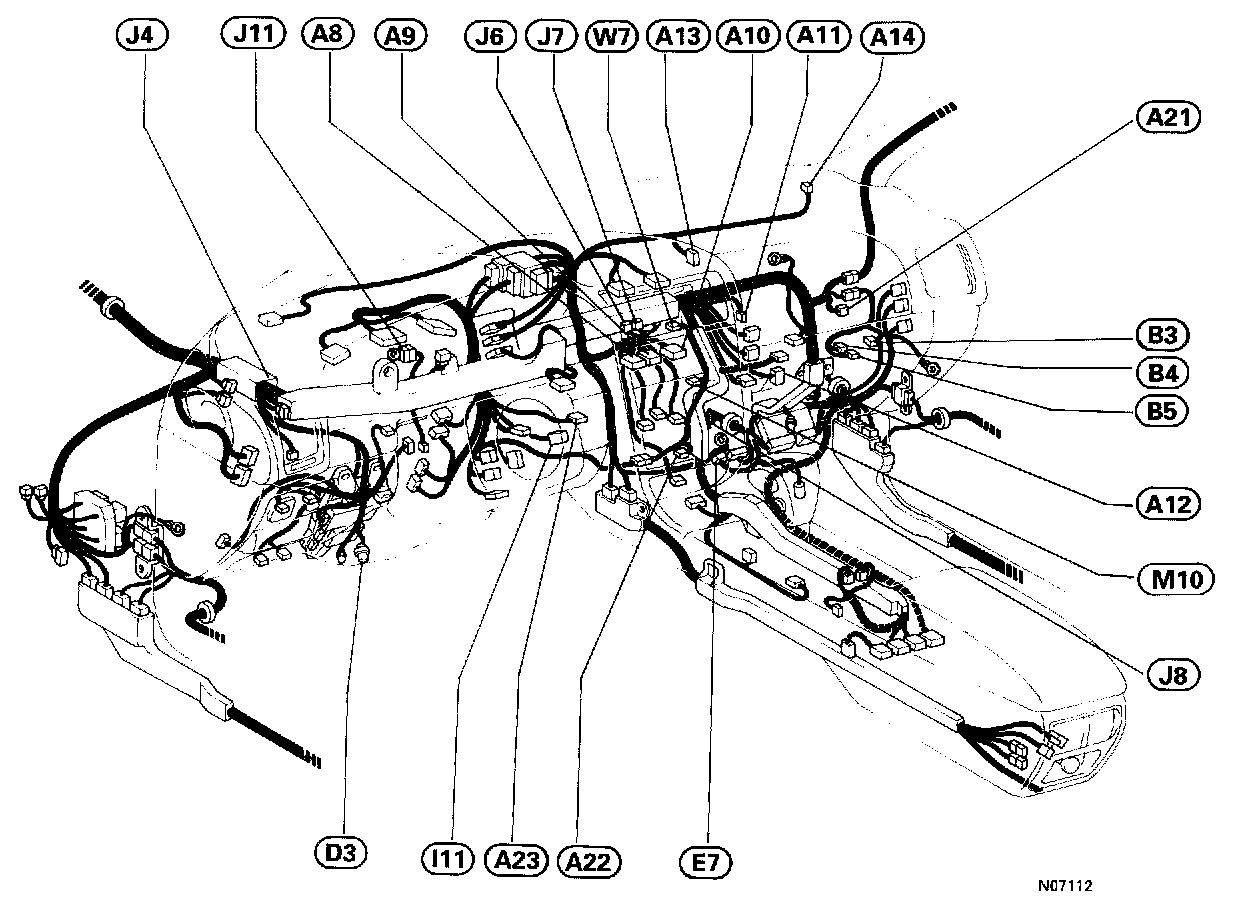

LOCATION OF CONNECTORS IN INSTRUMENT PANEL

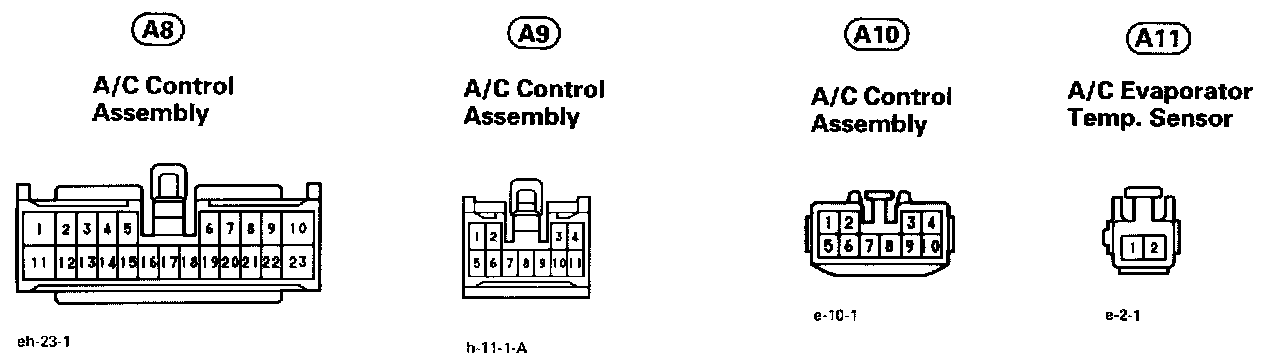

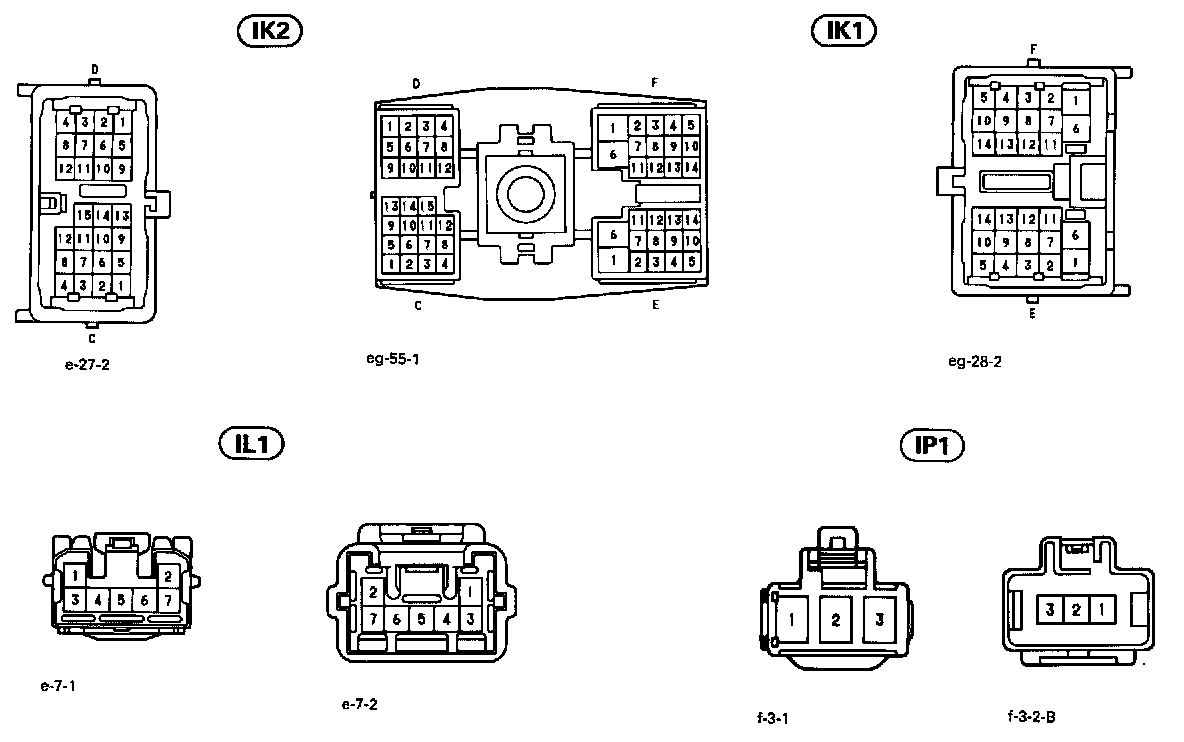

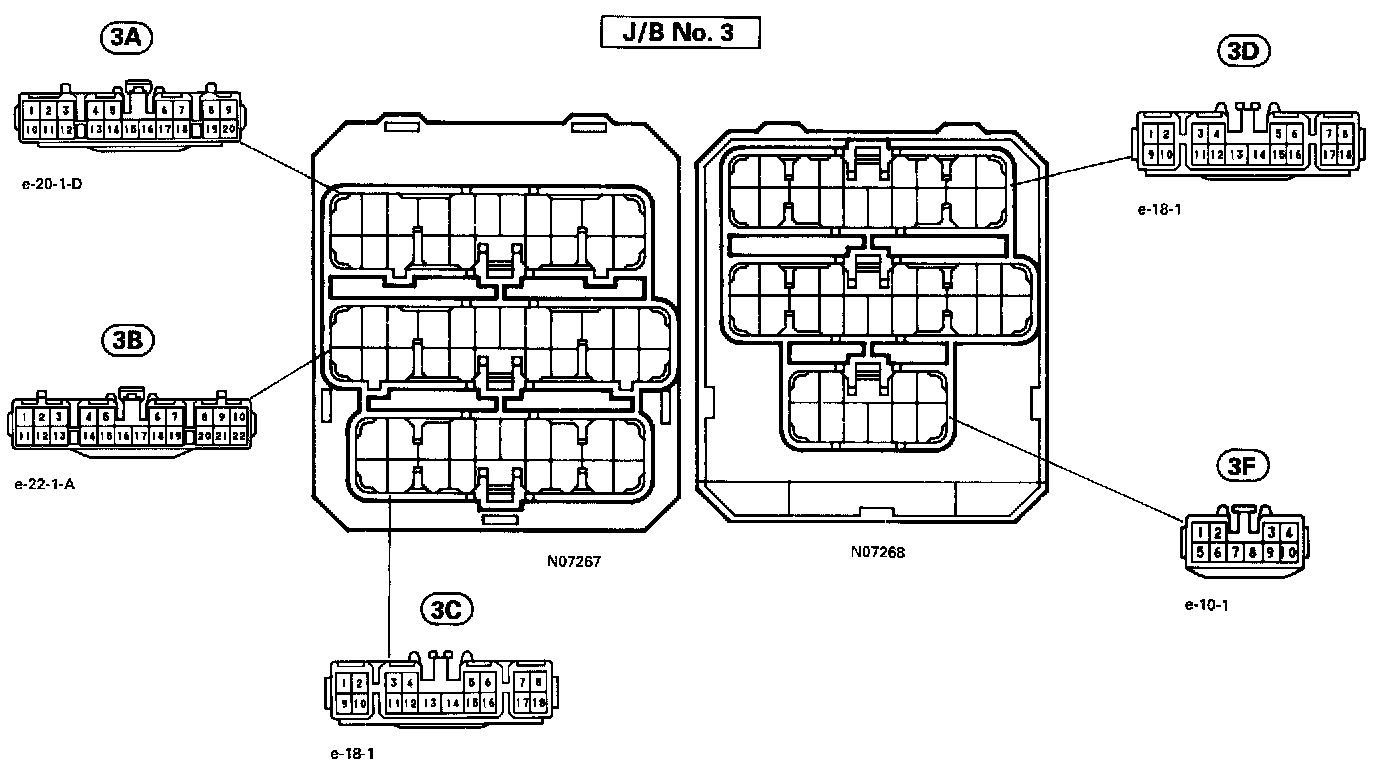

LOCATION OF CONNECTORS IN INSTRUMENT PANEL (CONTINUED)
