Home >> Lexus >> 1994 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp Washer Motor >> Wiring Diagrams

Wiring Diagrams

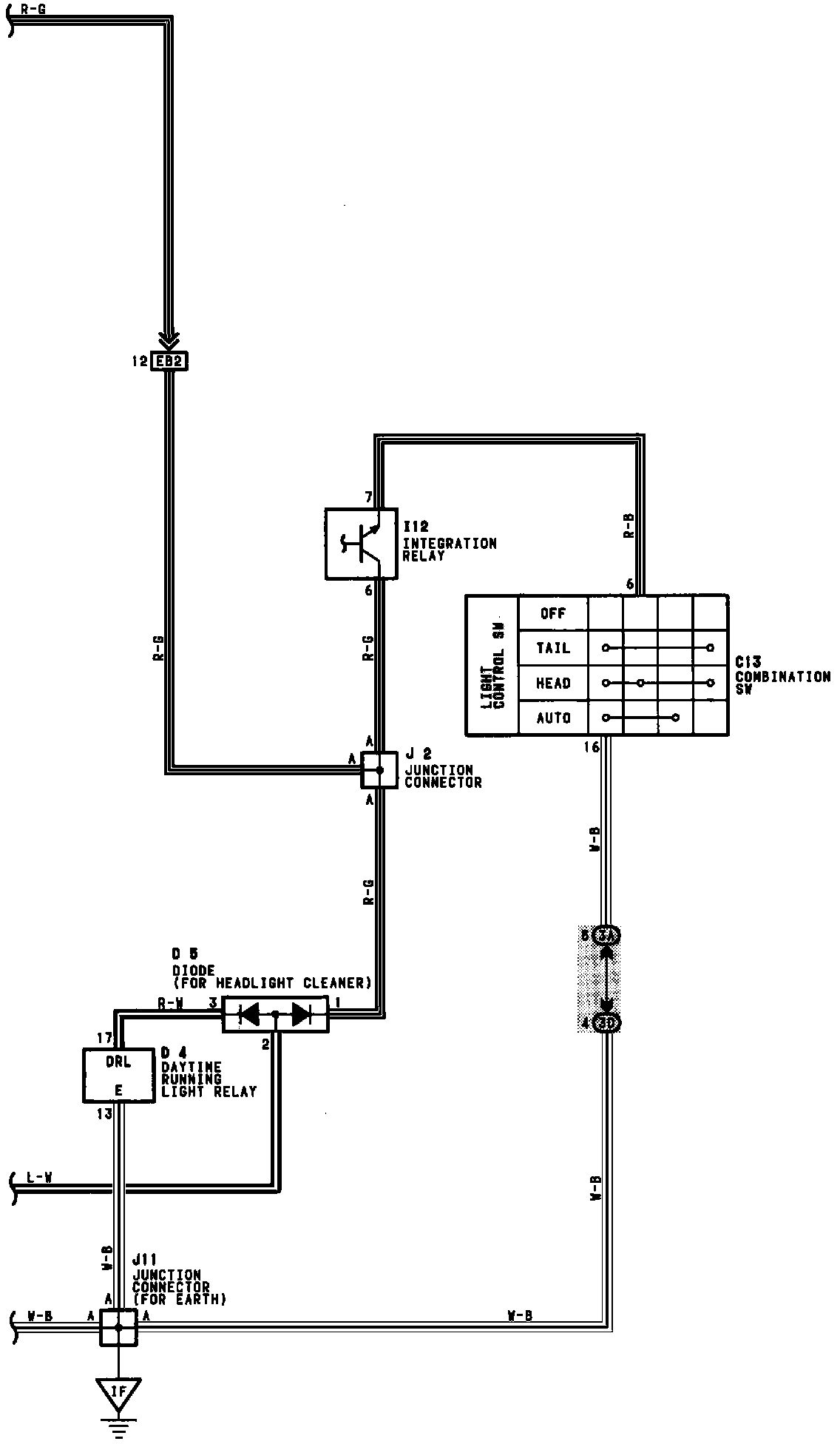

Headlight Cleaner (For Canada) (Part 1 OF 2):

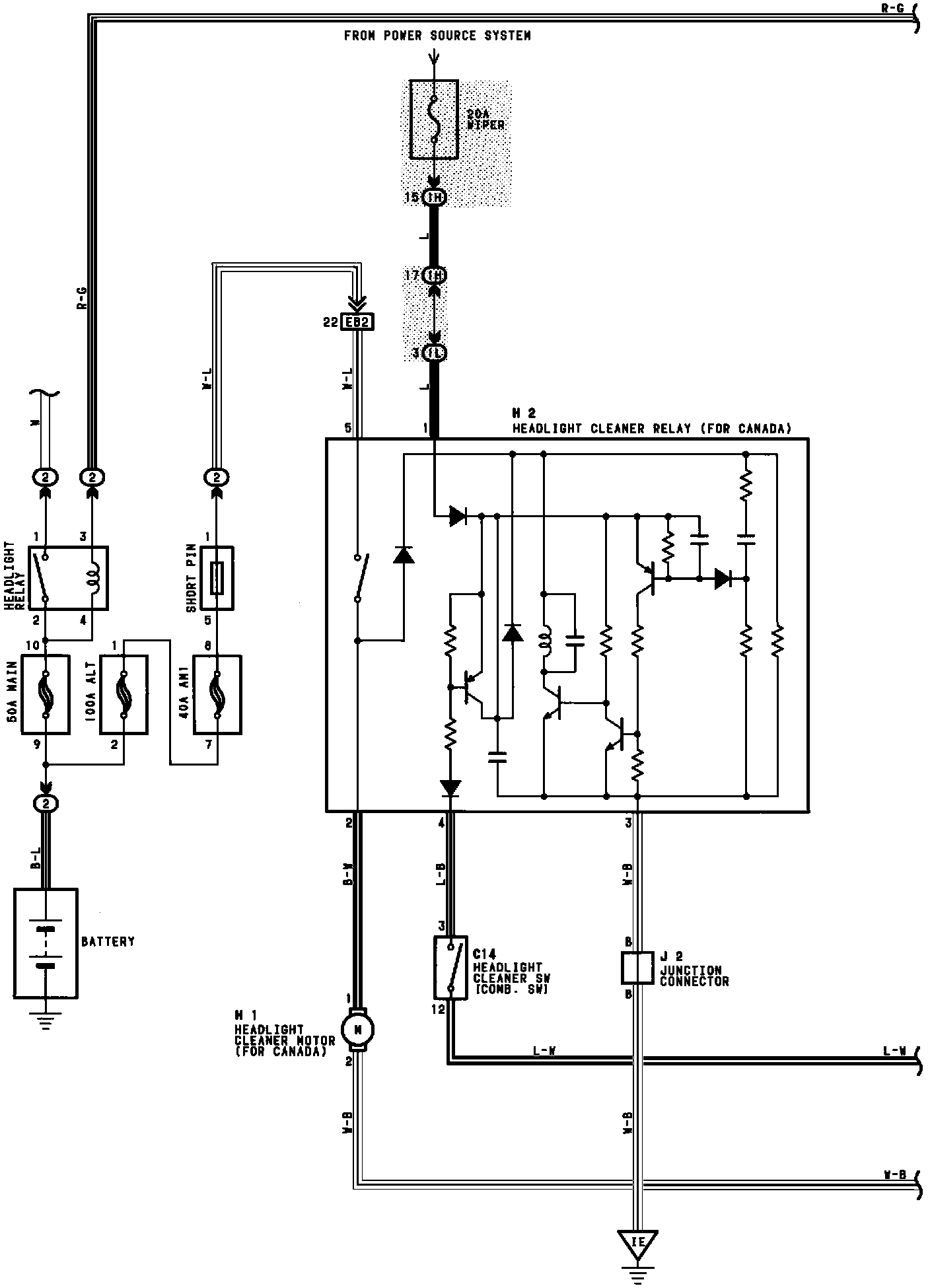

Headlight Cleaner (For Canada) (Part 2 OF 2):
