Home >> Lexus >> 1994 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> A - Z Connectors >> E - Connectors >> E7 >> Engine Control

Engine Control

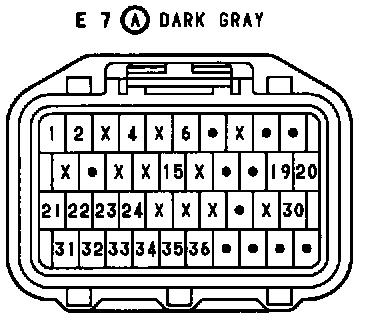

E 7-A Dark Gray (California):

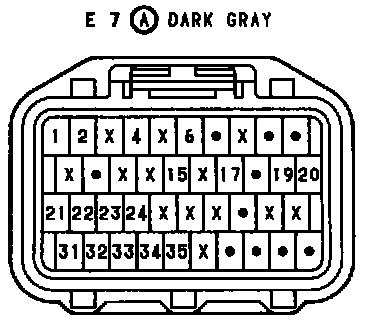

E 7-A Dark Gray (Ex.California):
