Air Mix Damper Position Sensor Circuit

DTC 41 AIR MIX DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

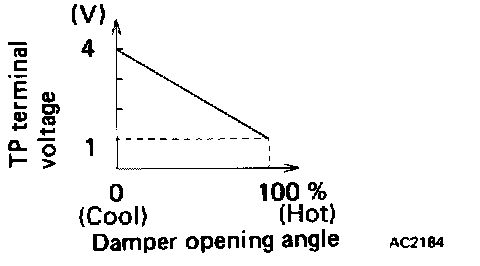

This sensor detects the position of the air mix damper and sends the appropriate signals to the air conditioning control assembly. The position sensor is built into the air mix damper control servomotor assembly.

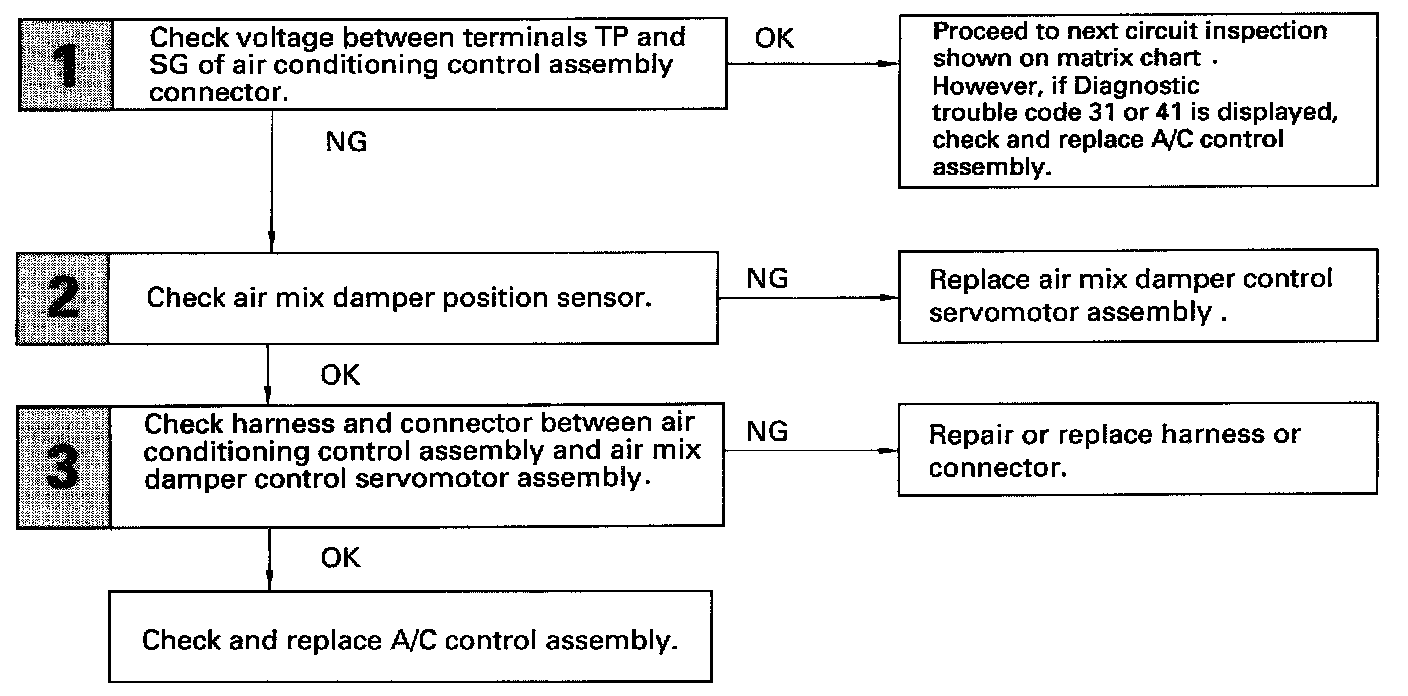

Diagnostic Chart:

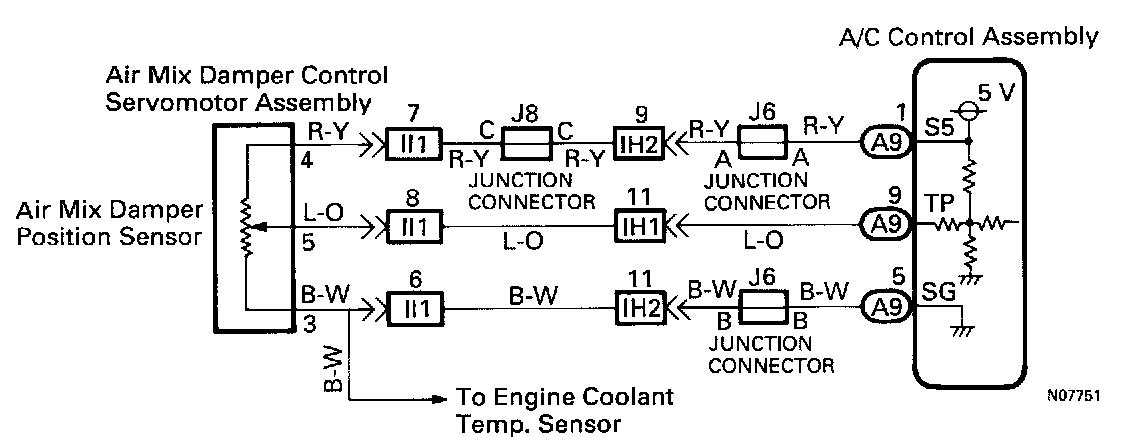

Wiring Diagram:

INSPECTION PROCEDURE

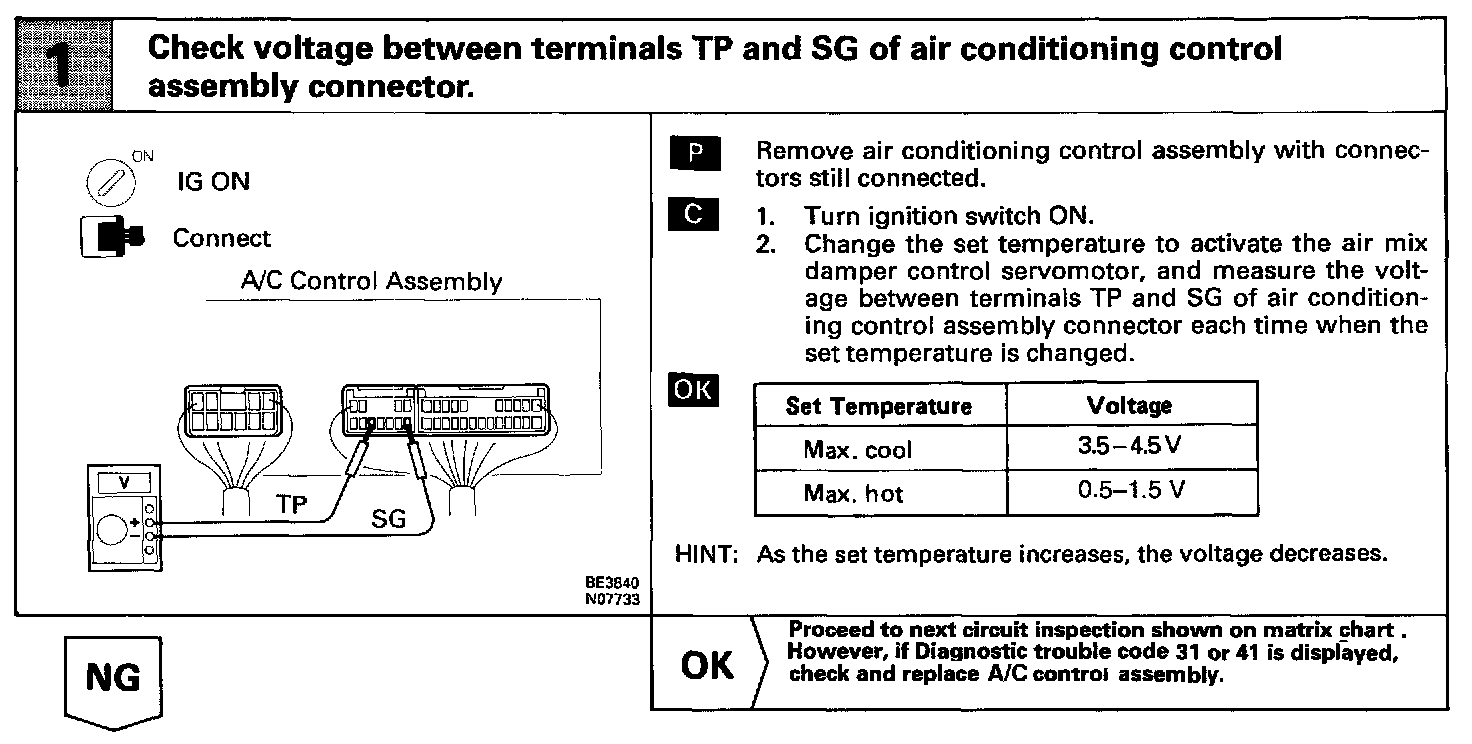

Step 1:

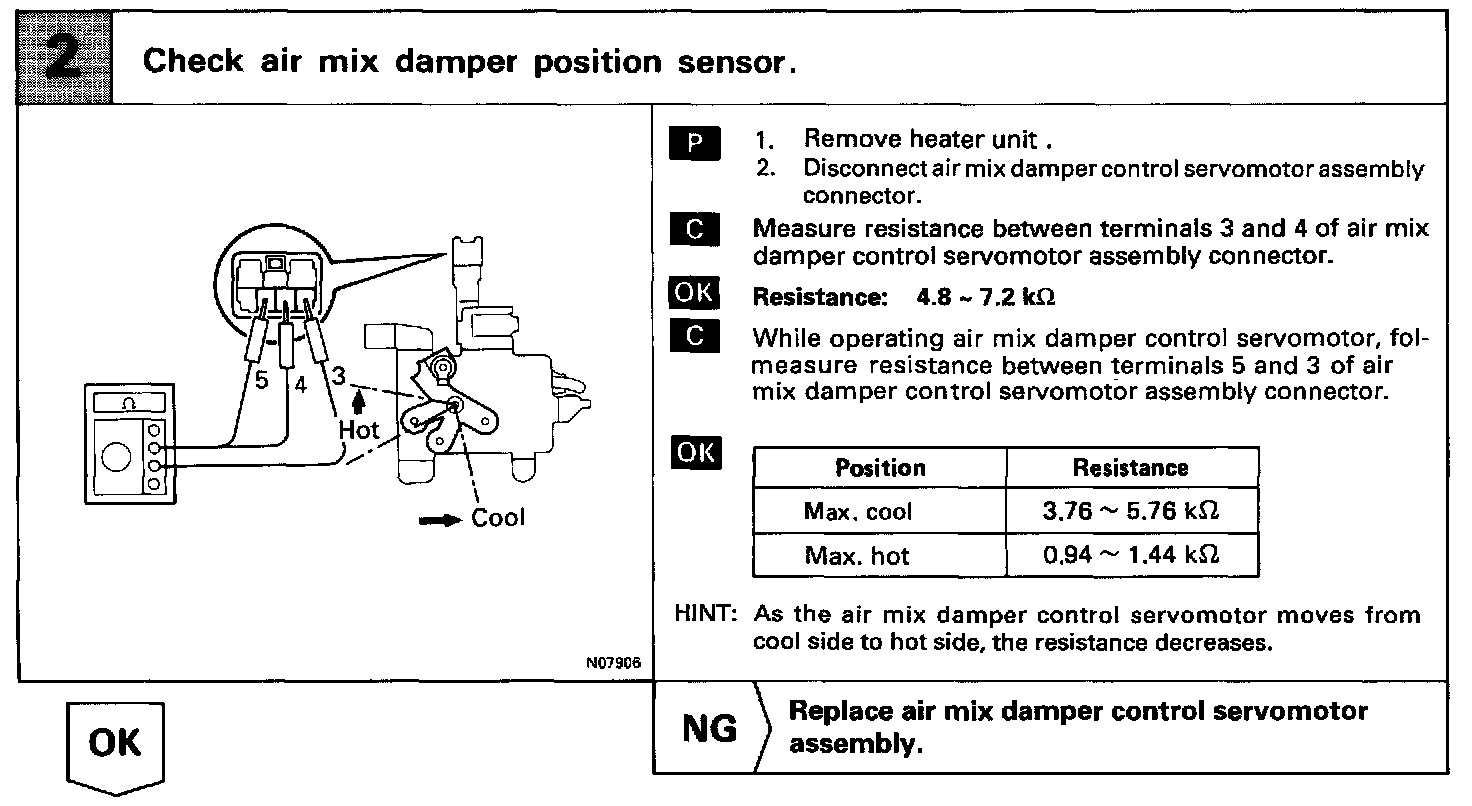

Step 2:

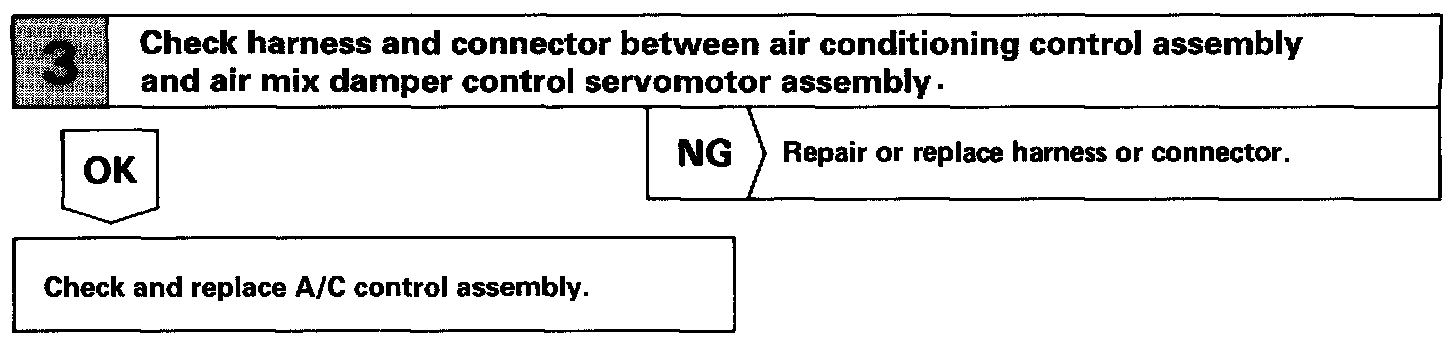

Step 3:
