Air Mix Control Servomotor Circuit

DTC 41 AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

The air mix damper control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

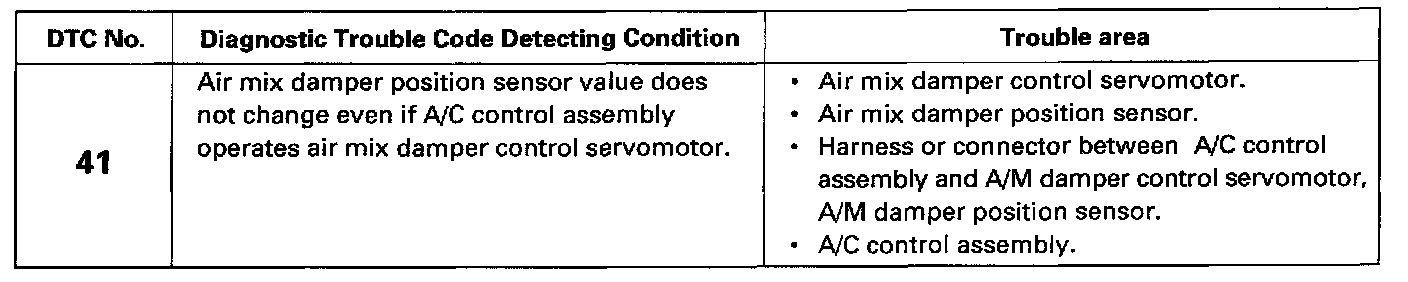

Diagnostic Chart:

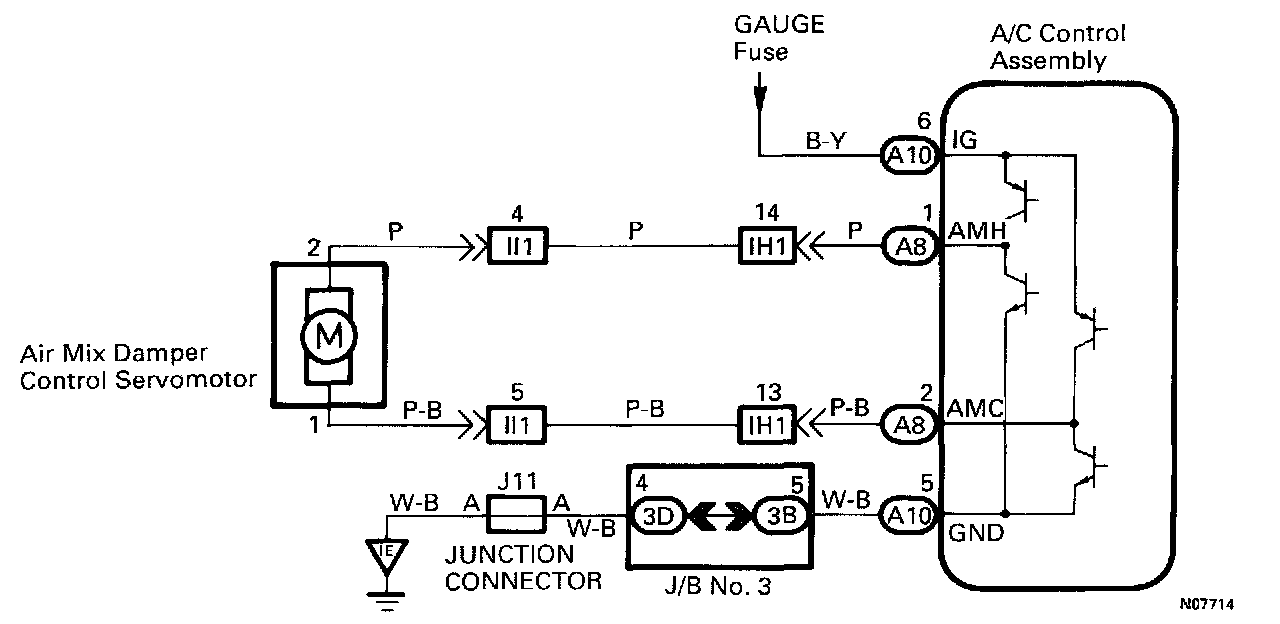

Wiring Diagram:

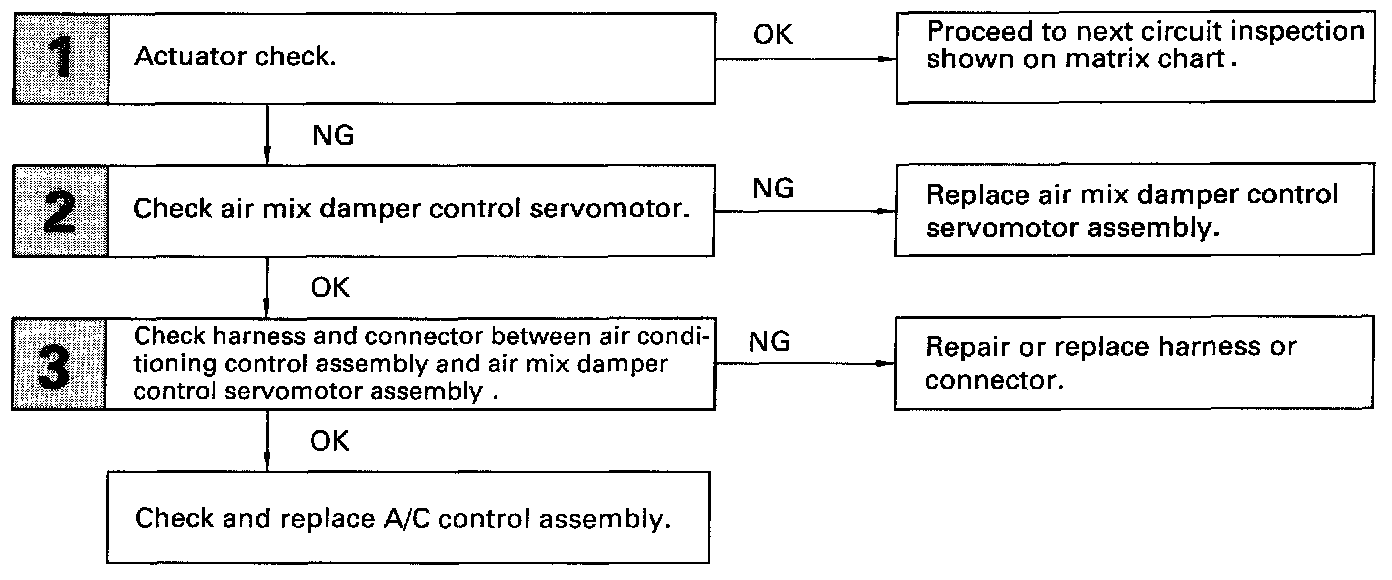

INSPECTION PROCEDURE

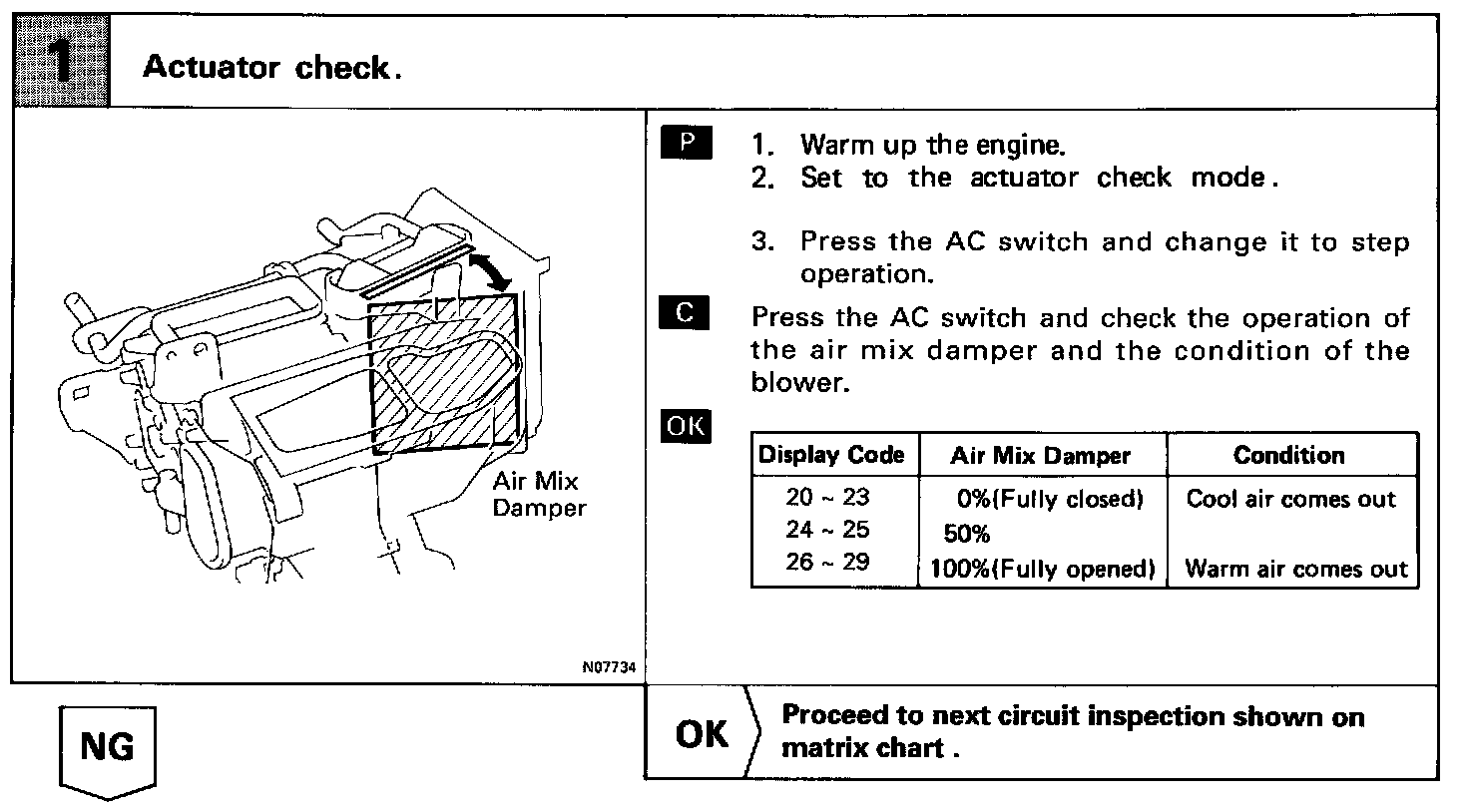

Step 1:

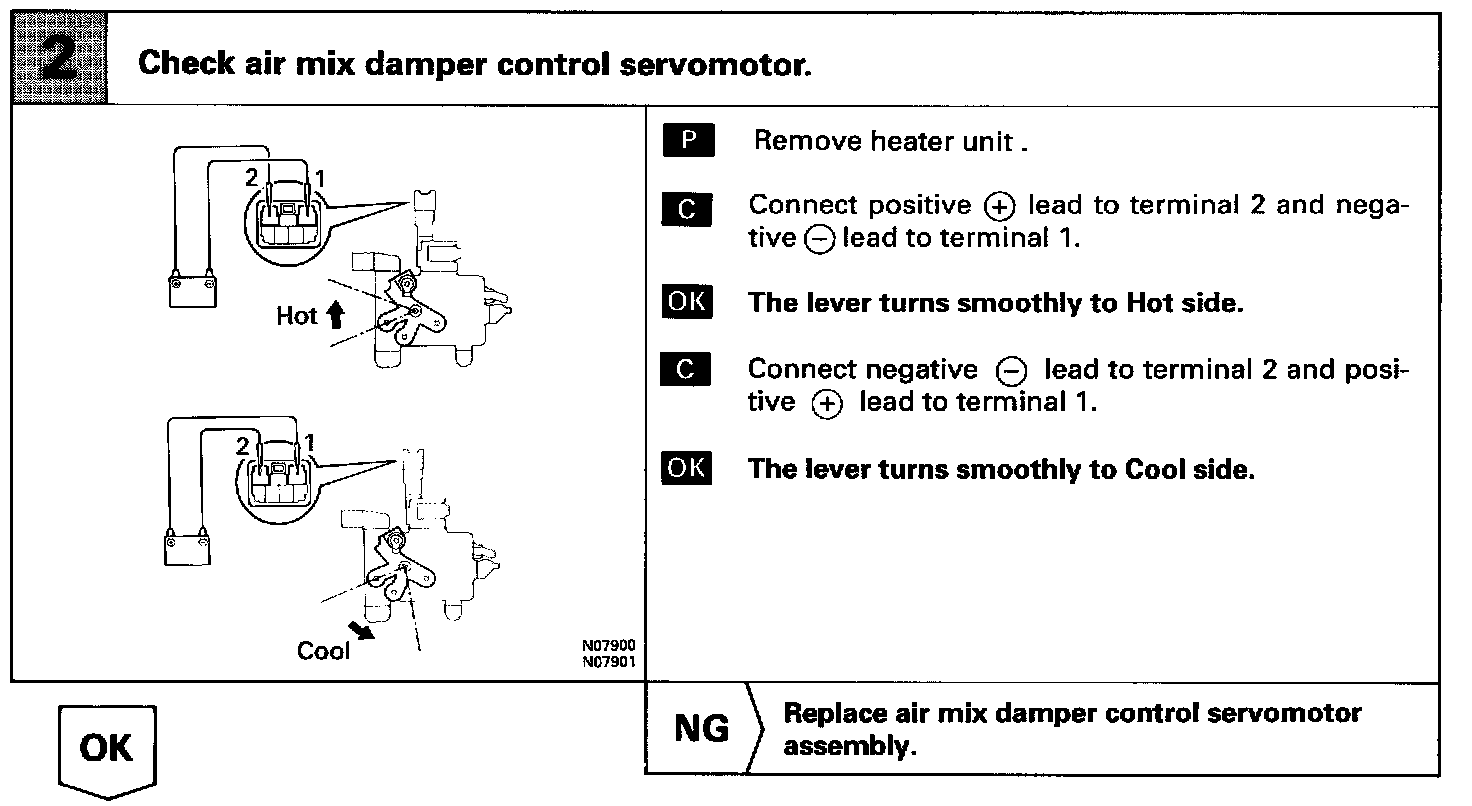

Step 2:

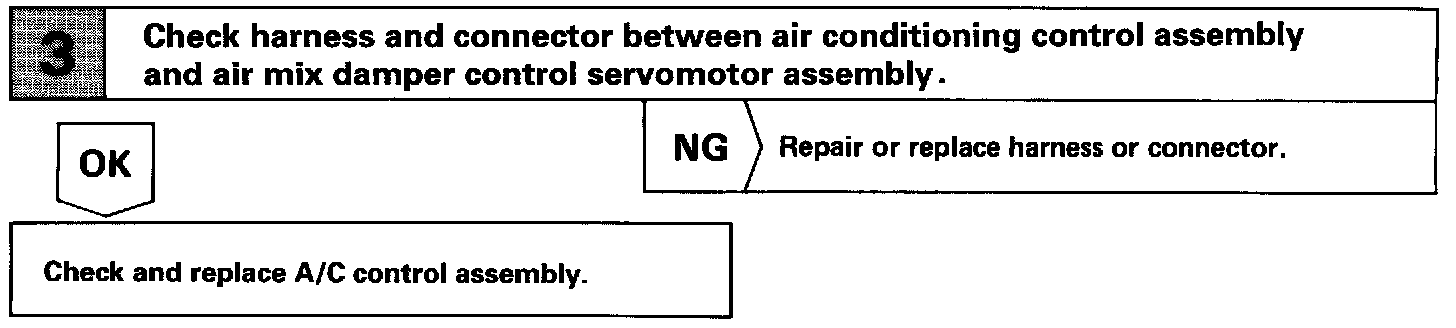

Step 3:
