DTC 22

DTC 22 COMPRESSOR LOCK SENSOR CIRCUIT

CIRCUIT DESCRIPTION

This sensor sends 4 pulses per engine revolution to the air conditioning control assembly. If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the air conditioning control assembly turns the compressor off. And, the indicator flashes at about 1 second intervals.

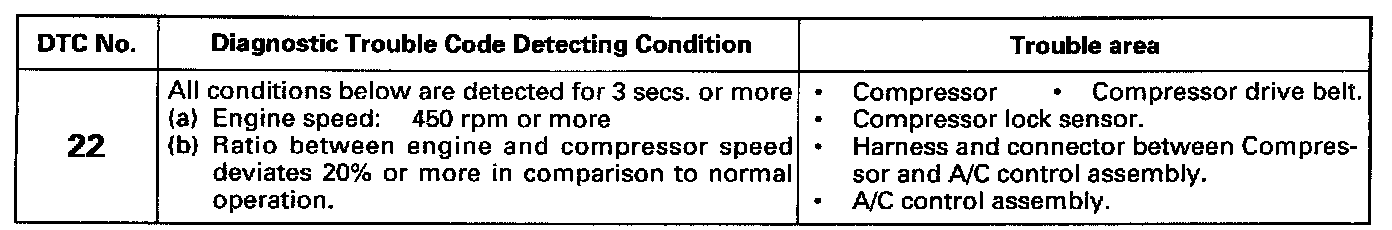

Diagnostic Chart:

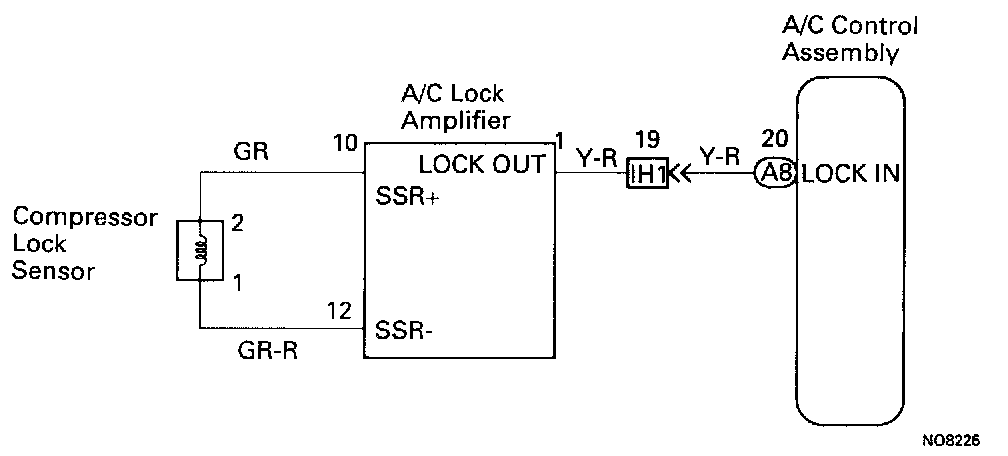

Wiring Diagram:

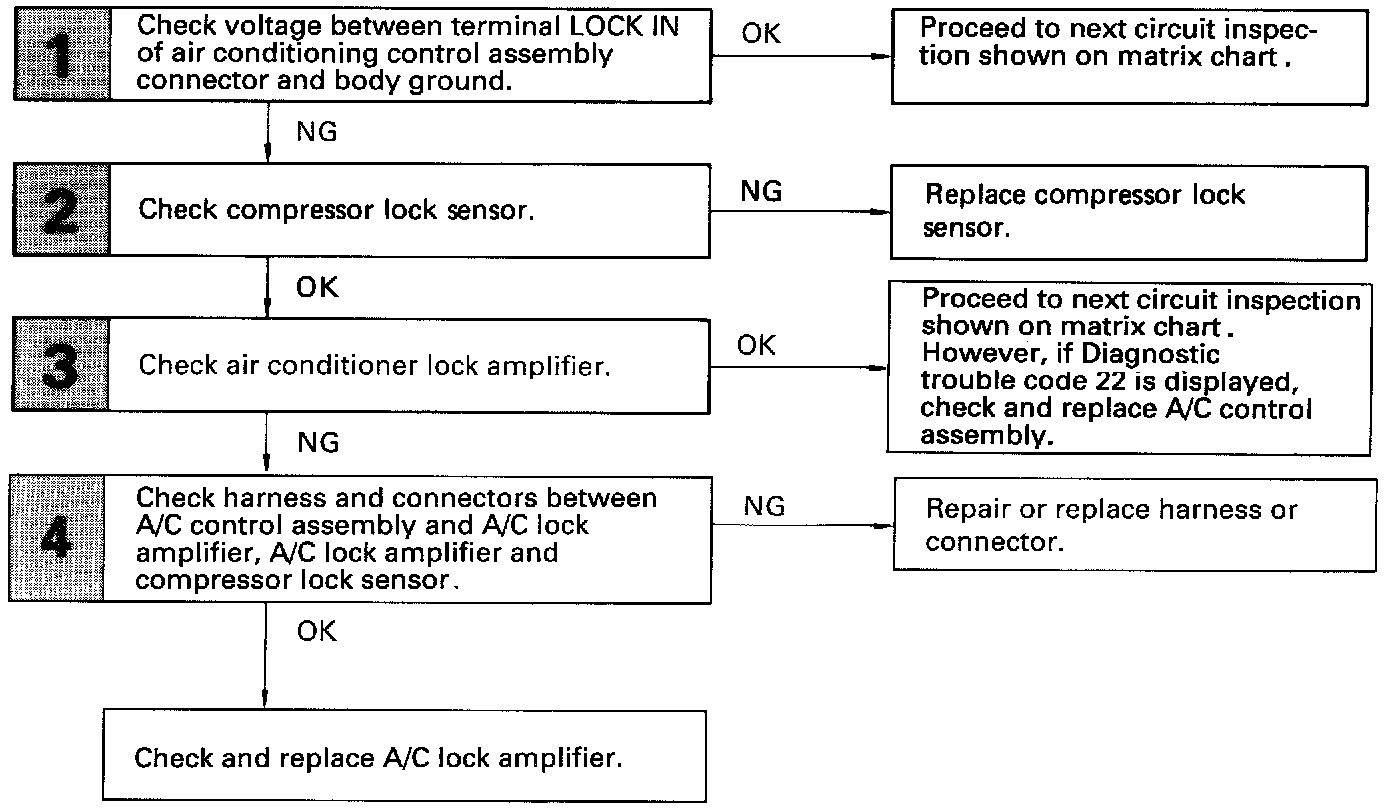

INSPECTION PROCEDURE

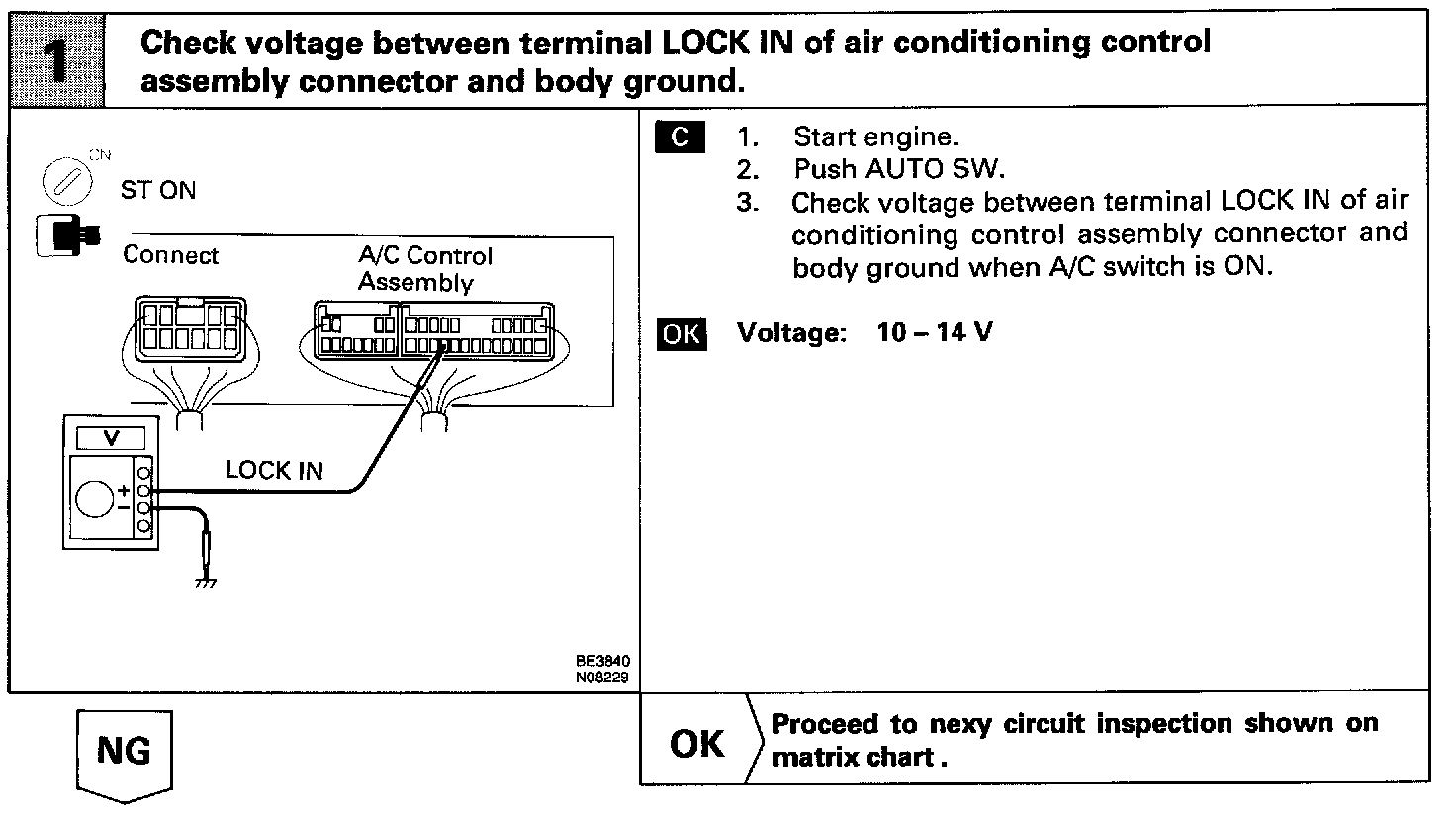

Step 1:

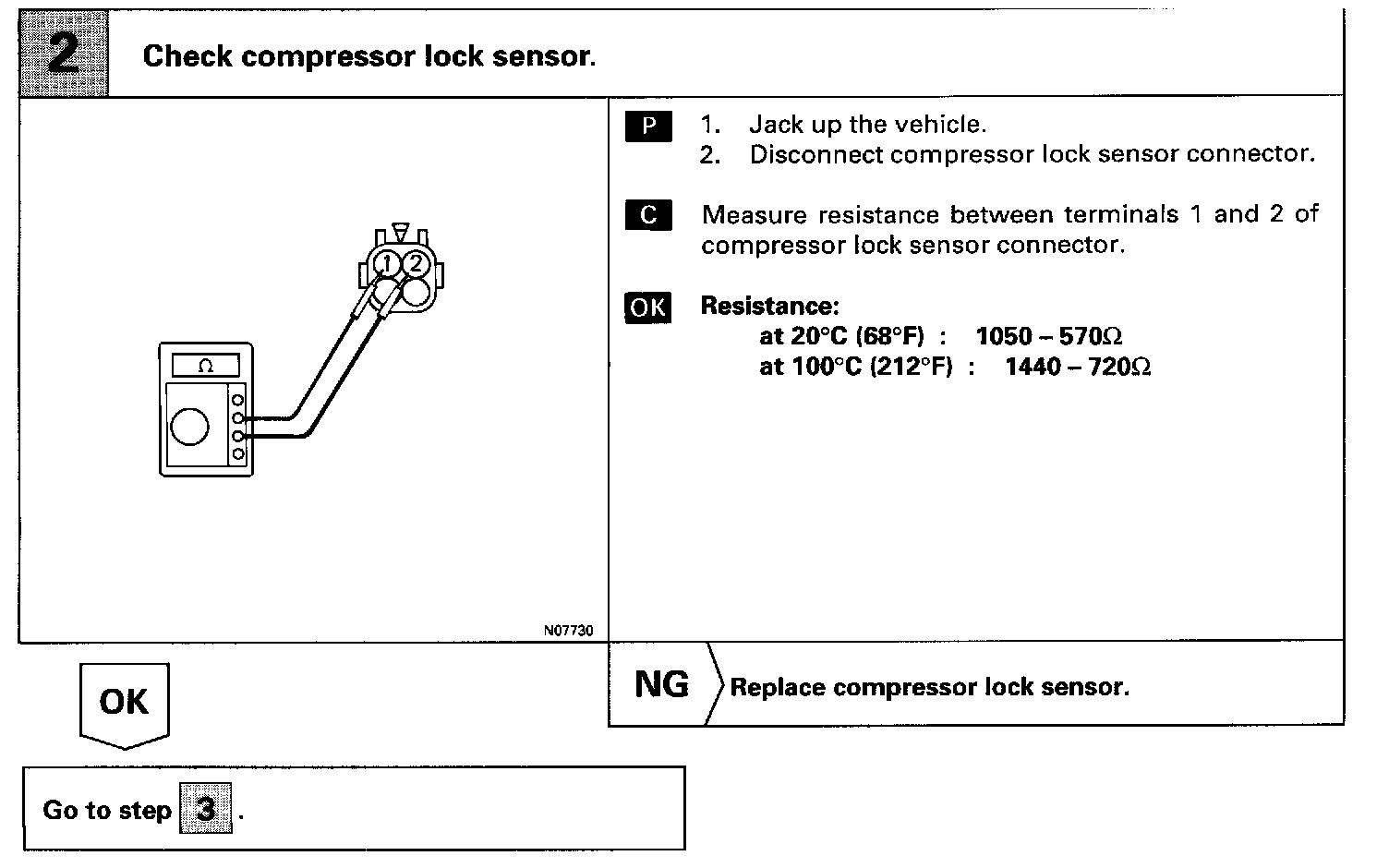

Step 2:

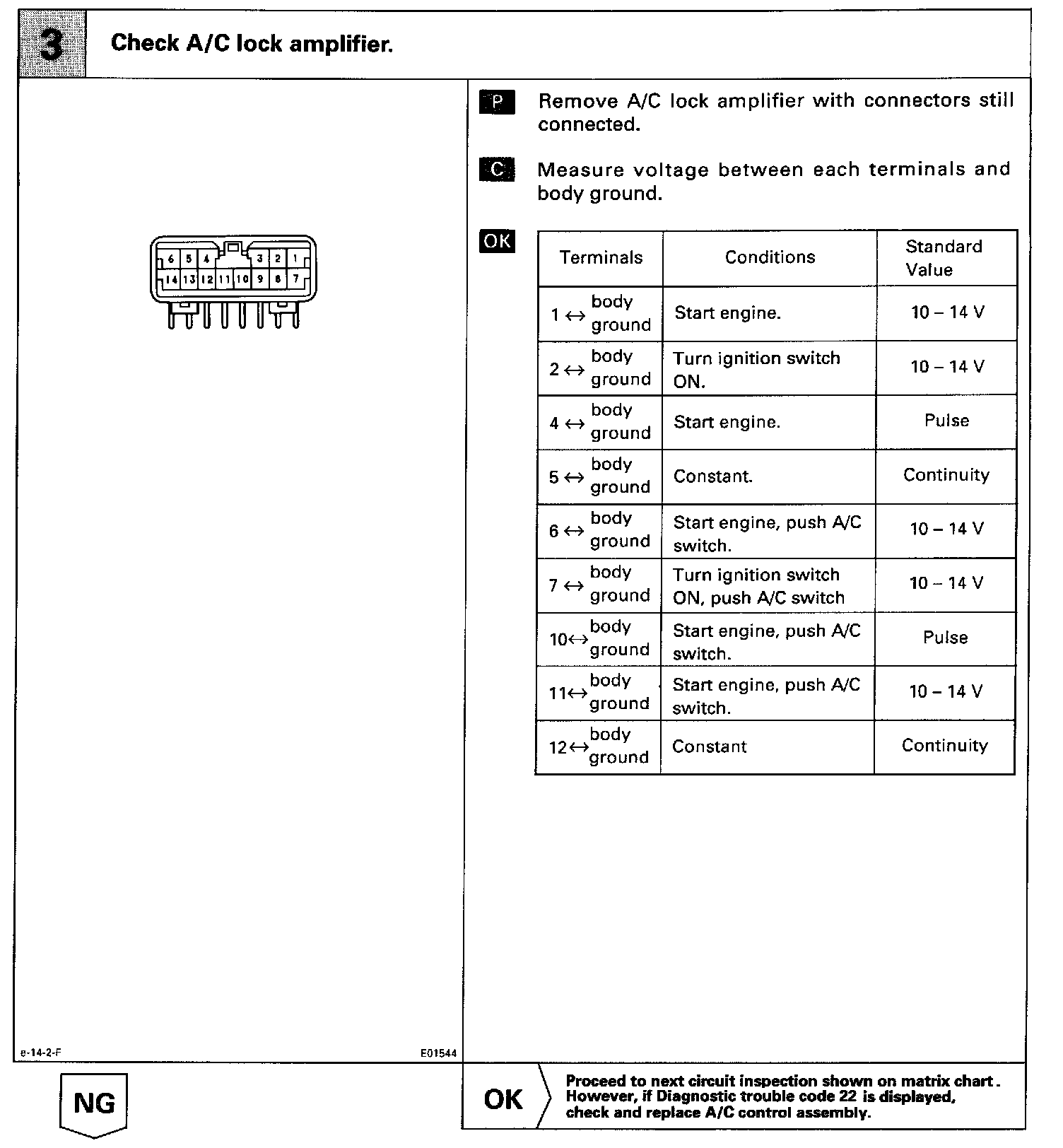

Step 3:

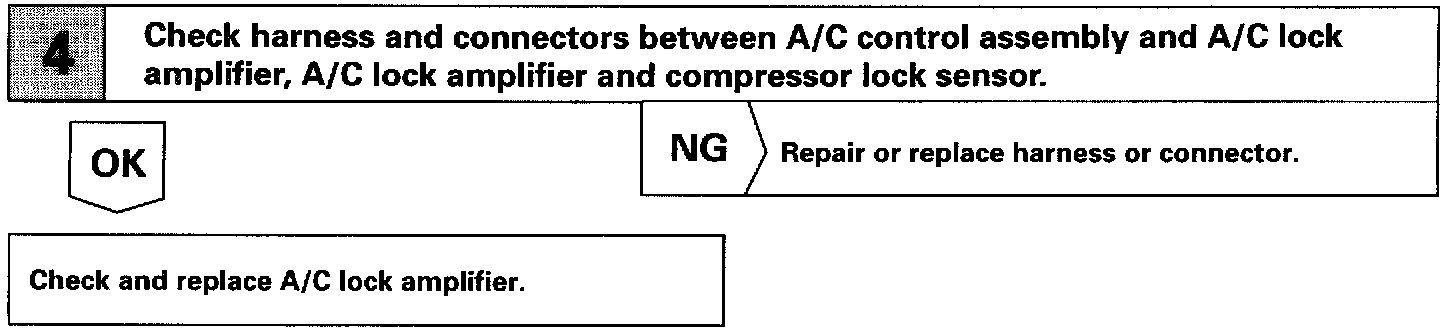

Step 4:
