DTC 13

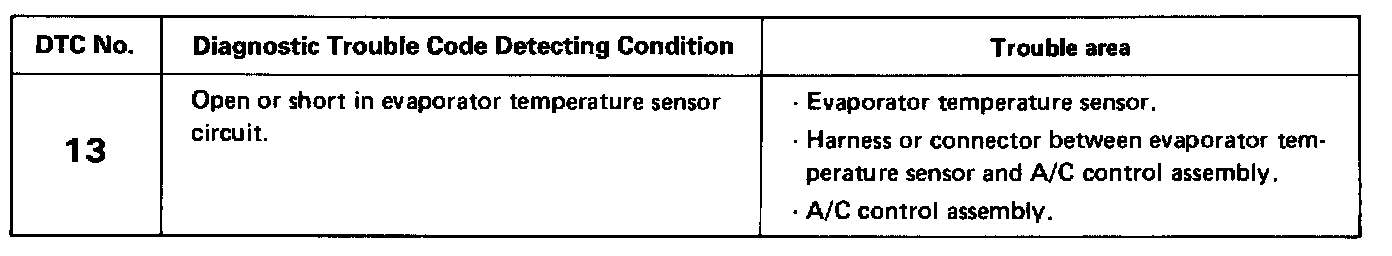

DTC 13 EVAPORATOR TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the air conditioning control assembly.

Diagnostic Chart:

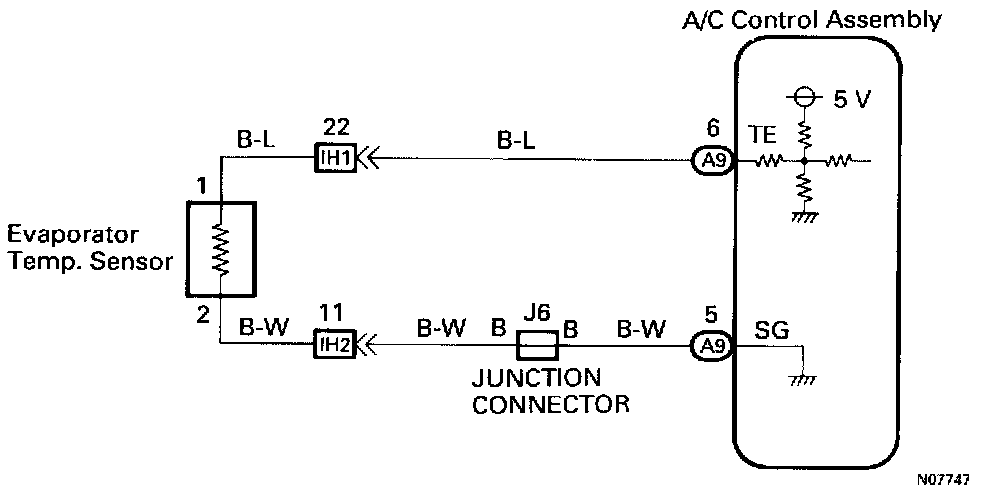

Wiring Diagram:

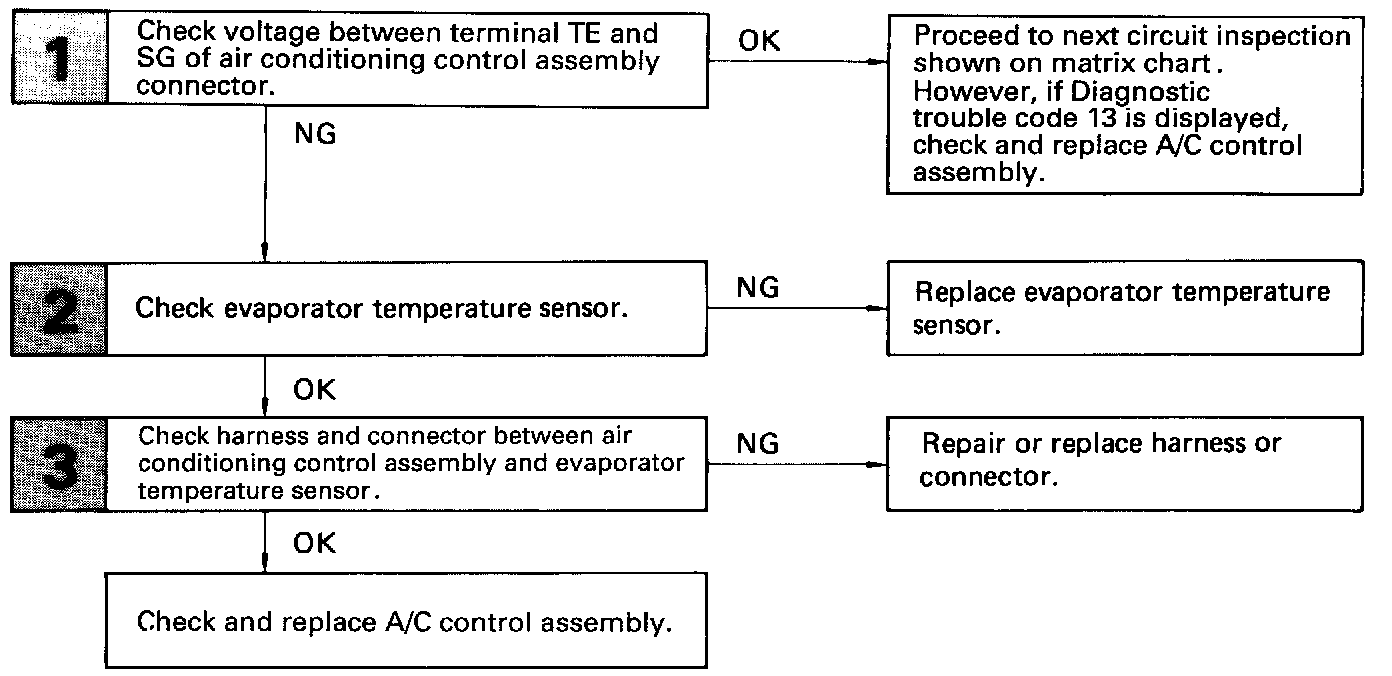

INSPECTION PROCEDURE

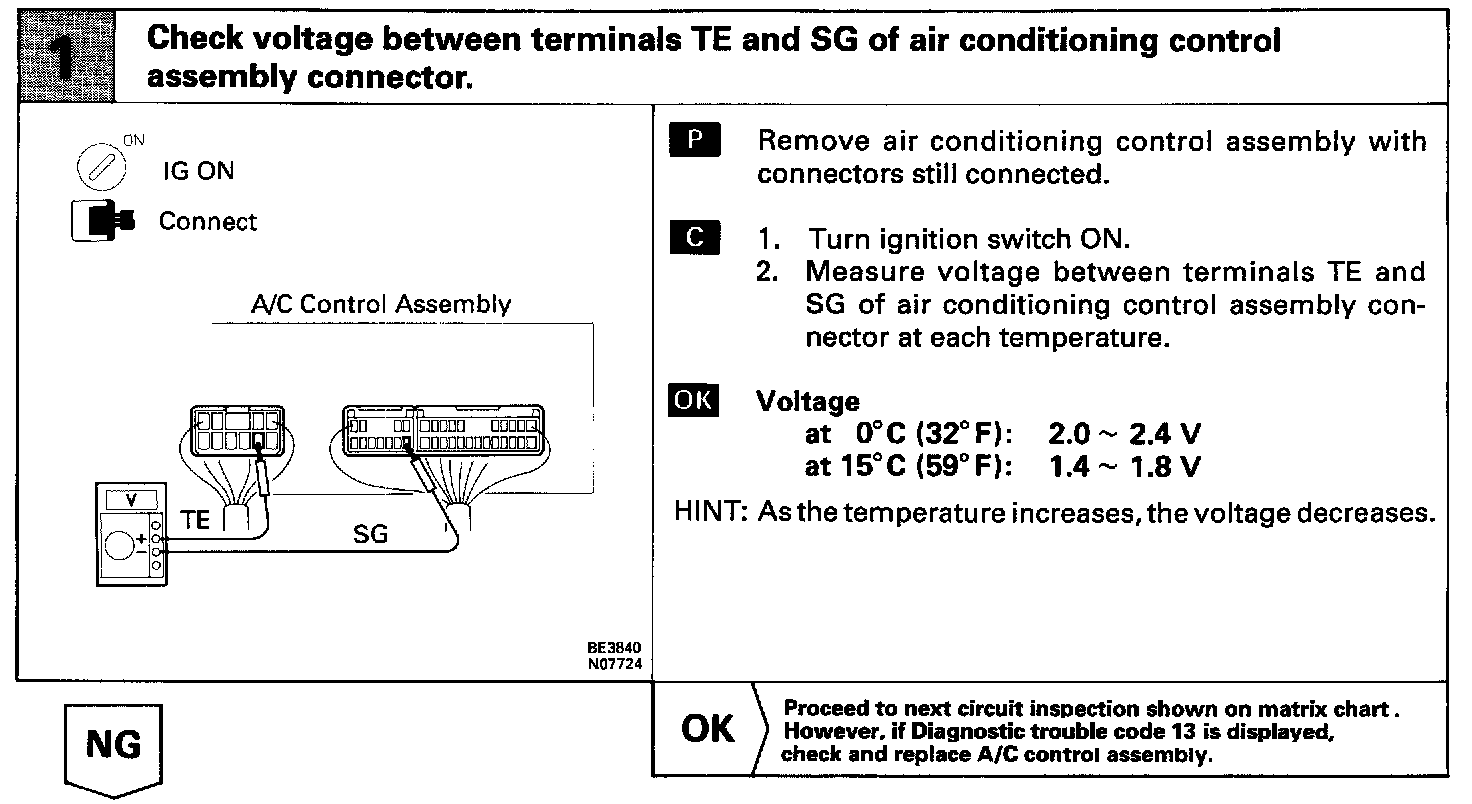

Step 1:

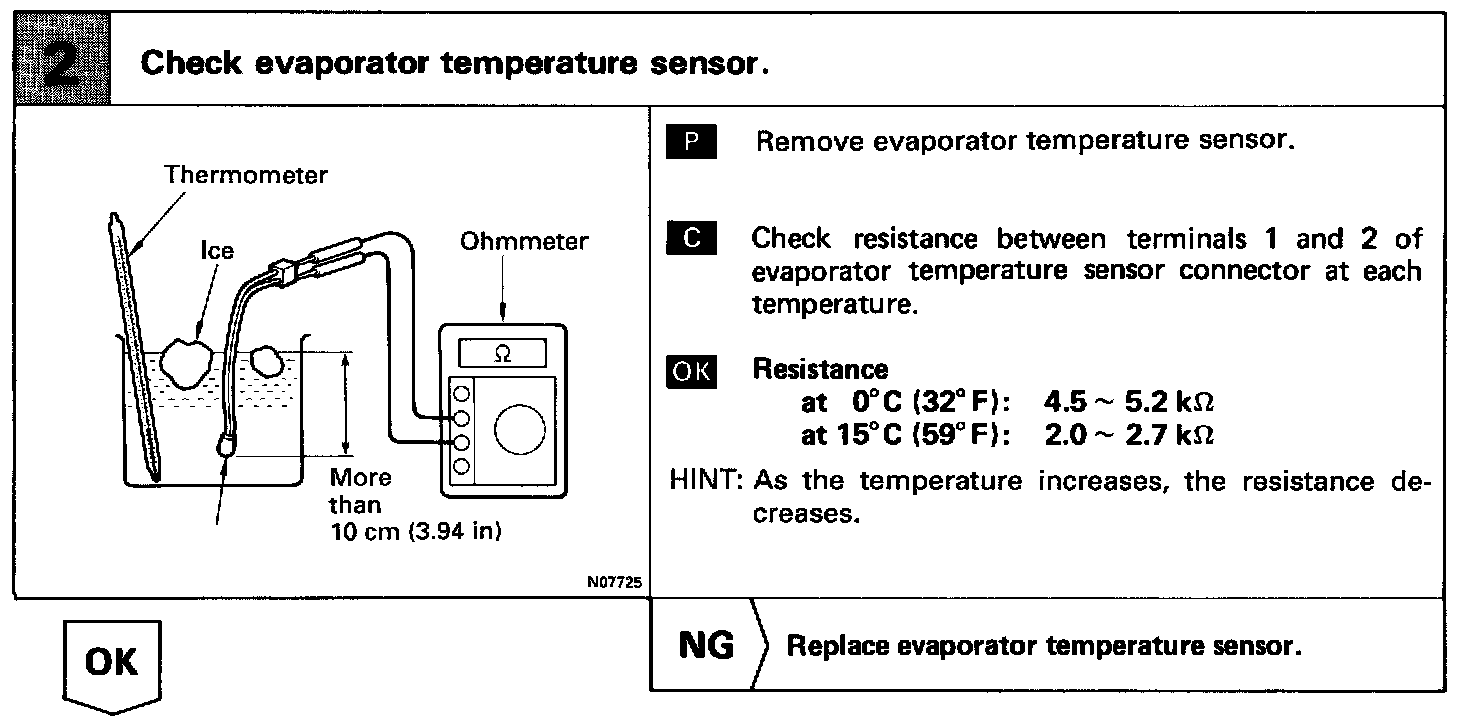

Step 2:

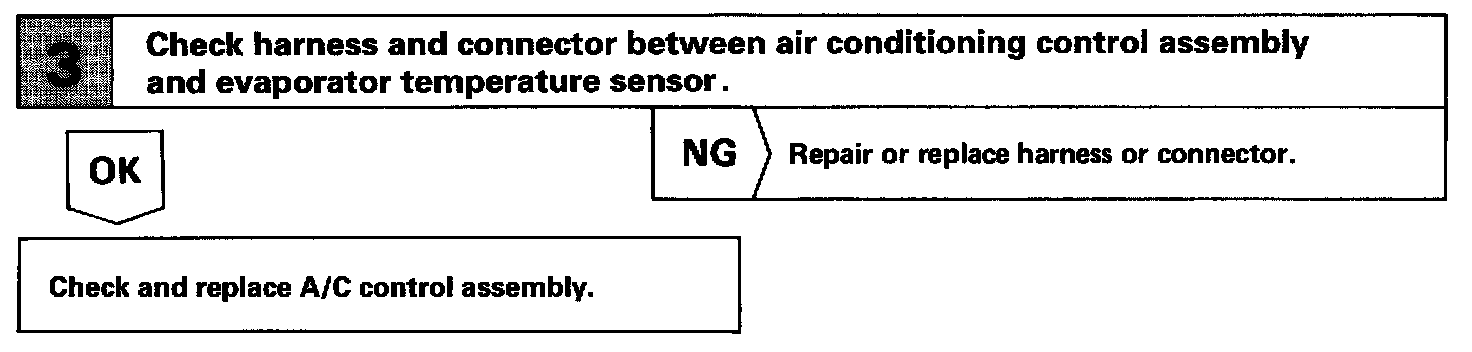

Step 3:
