Fuel Pump: Locations

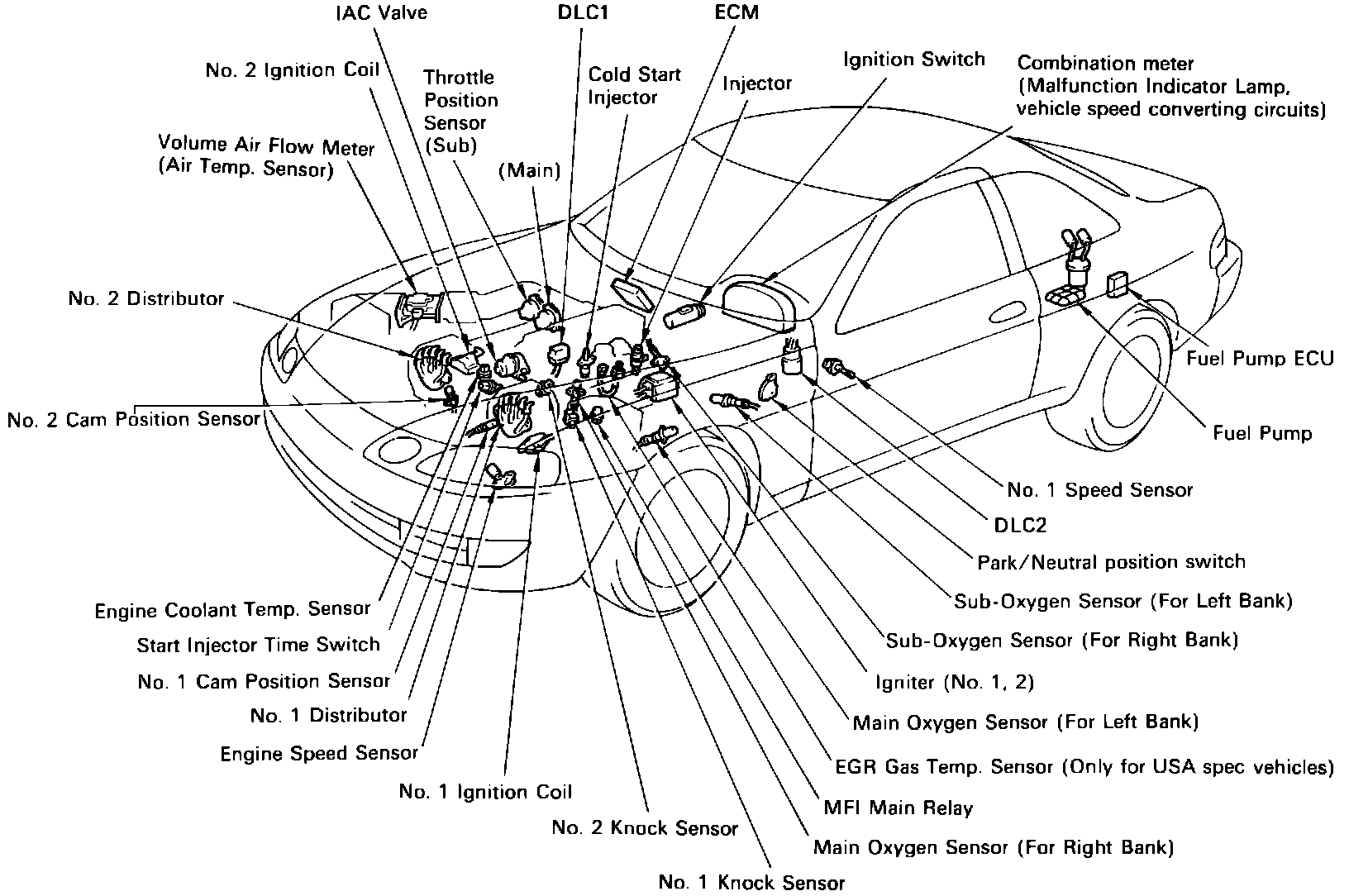

Component Locations:

Cold Start Injector
Mounted to the bottom of the intake air chamber.

Fuel Injectors
Located around the outer edge of the intake manifold, near the cylinder head mating surface.

Fuel Pressure Regulator
Mounted to the fuel rail on the upper right corner of the intake manifold.

Fuel Pressure Up Vacuum Switching Valve (VSV)
The VSV is mounted near the left side fuel rail.

Fuel Pump
Mounted inside the fuel tank.

Fuel Pump ECU
Located behind the quarter trim panel in the left side of the passenger compartment.

Pulsation Damper
Mounted to the left rear of the fuel rail.

Start Injector Time Switch
Threaded into the water jacket under the right side ignition coil.
