Component Test

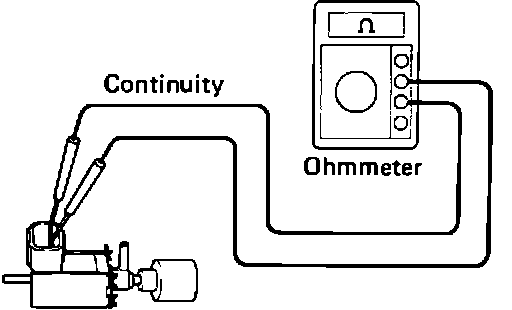

VSV Testing - Checking Continuity:

- Connect ohmmeter across VSV terminals.

Resistance 33 - 50 ohms

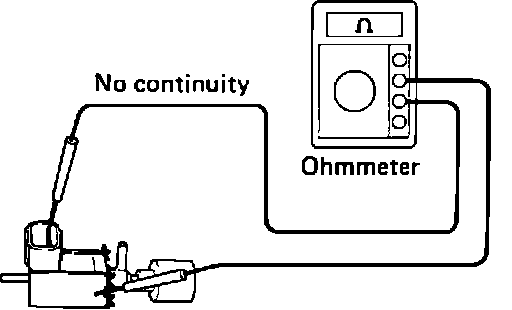

VSV Testing - Checking For Short:

- Check that there is no continuity between either terminal and VSV case.

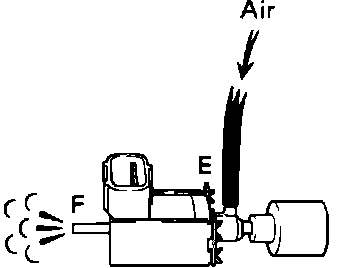

VSV Testing - Checking Operation:

- Blow air into port E. Air should flow from port F.

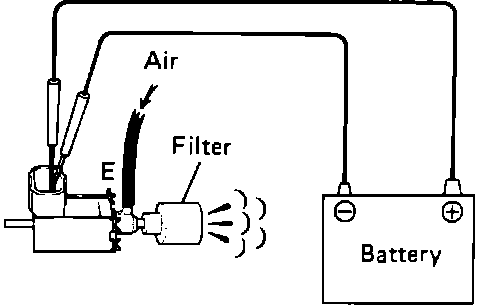

VSV Testing - Checking Operation:

- Apply battery voltage across solenoid terminals.
- Blow air into port E. Air should not flow from port F.
- If any step failed to produce desired results, replace VSV.
