Normal Mode

Malfunction Indicator Light:

MALFUNCTION INDICATOR LAMP CHECK

1. The malfunction indicator lamp will come on when the ignition switch is turned ON and the engine is not running.

HINT: If the malfunction indicator lamp does not light up, troubleshoot the combination meter.

2. When the engine is started, the malfunction indicator lamp should go off.

If the light remains on, the diagnosis system has detected a malfunction or abnormality in the system.

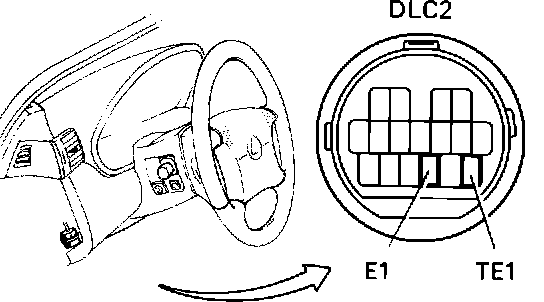

Jumper Installation DLC2:

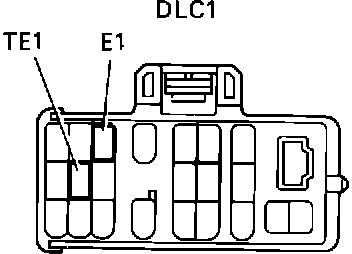

Jumper Installation DLC1:

DIAGNOSTIC TROUBLE CODE CHECK

1. Turn ignition switch on.

2. Using a jumper wire, connect terminals between TE1 and E1 of DLC2 or DLC1.

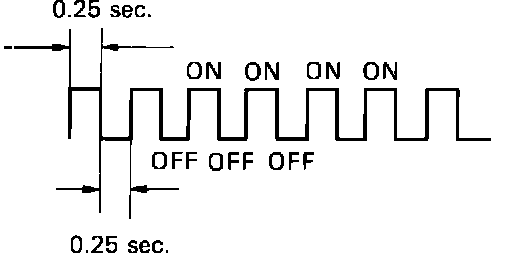

Normal Mode Indication:

3. Read the diagnostic trouble code from malfunction indicator lamp.

HINT: If a diagnostic trouble code is not output, check the TE1 terminal circuit.

Codes 12 And 31:

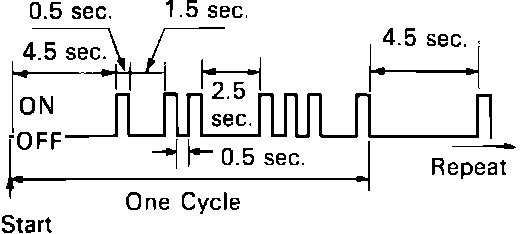

As an example, the blinking patterns for codes; normal, 12 and 31 are as shown on the illustration.

4. Check the details of the malfunction using the diagnostic trouble code chart.

5. After completing the check, disconnect terminals TE1 and E1, and turn off the display.

HINT: In the event of 2 or more malfunction codes, indication will begin from the smaller numbered code and continue in order to the larger.
