Home >> Lexus >> 1993 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> TE1, TE2 Terminal Circuit

TE1, TE2 Terminal Circuit

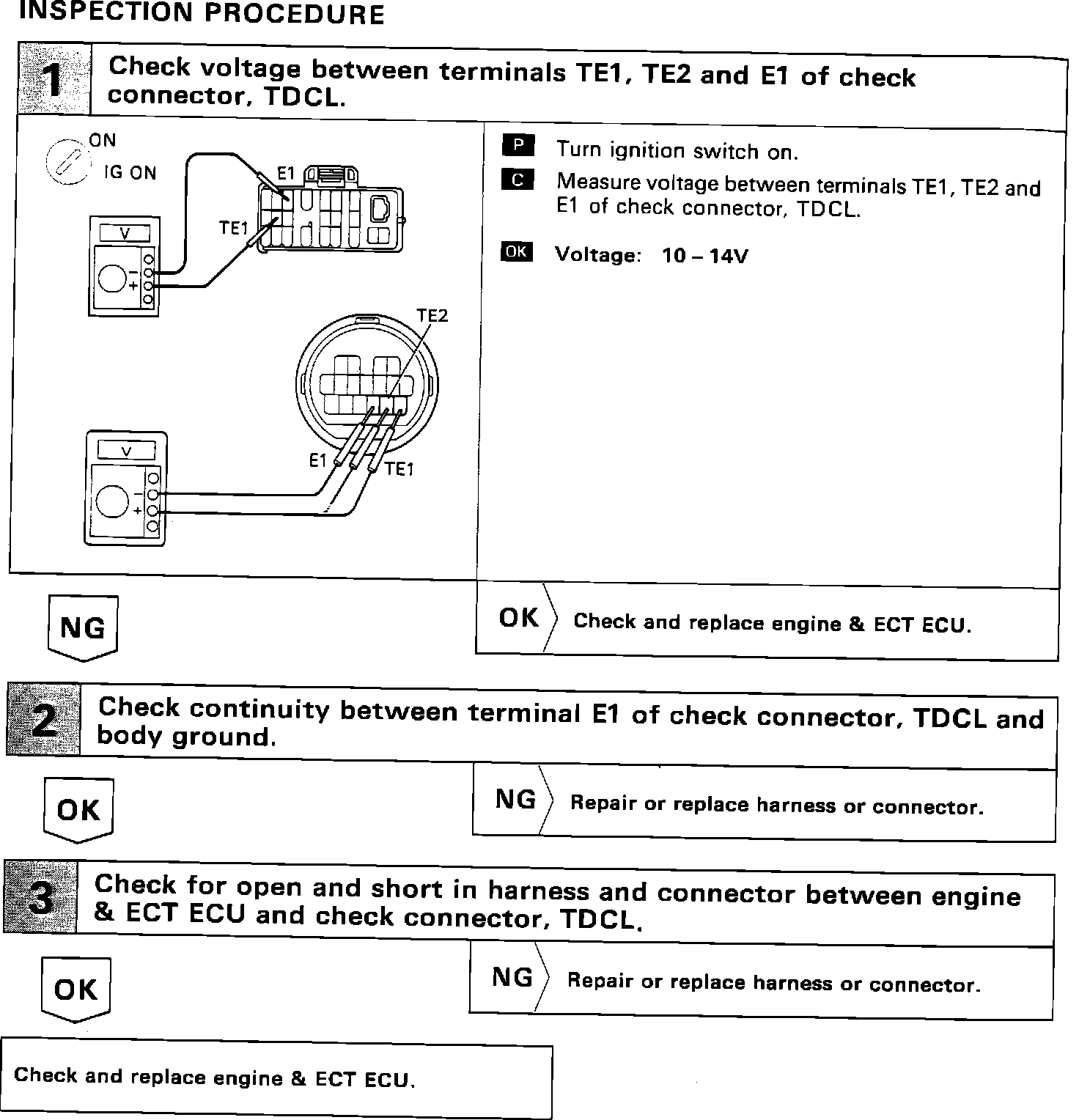

Fig. 42 TE1, TE2 Terminal Circuit Diagnosis (Part 2 Of 2):
