Igniter Circuit

IGNITER CIRCUIT

CIRCUIT DESCRIPTION

The air conditioning control assembly monitors the engine speed through signals sent from the igniter.
The air conditioning control assembly uses these signals and compressor speed signals to detect the compressor lock detection.

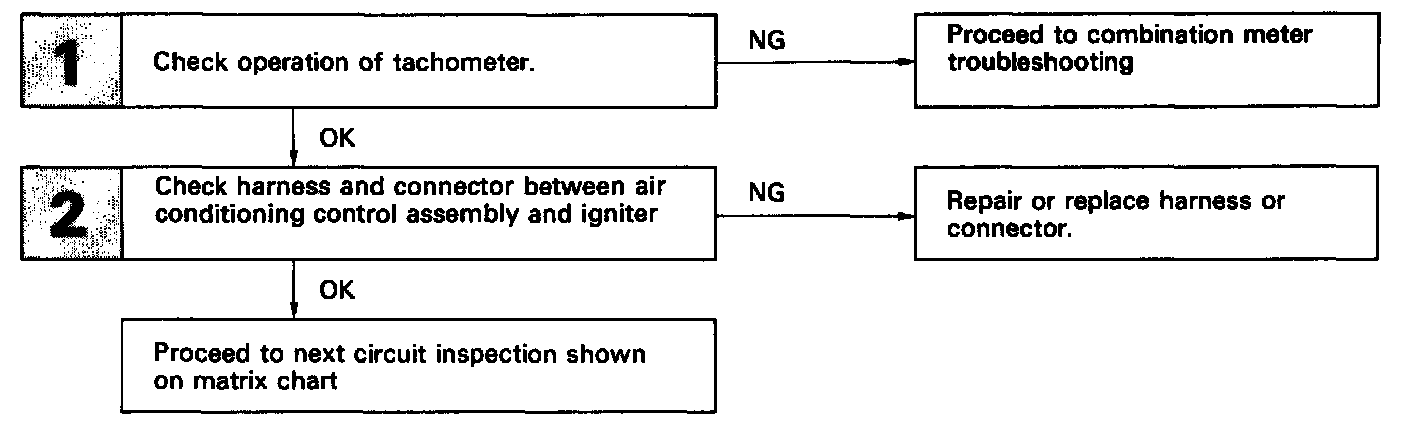

DIAGNOSTIC CHART

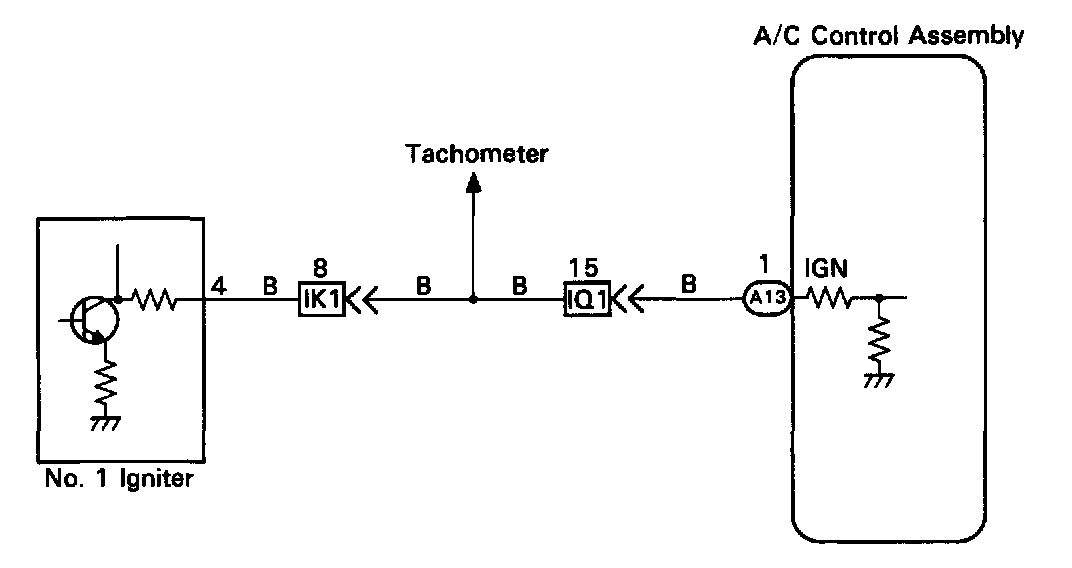

WIRING DIAGRAM

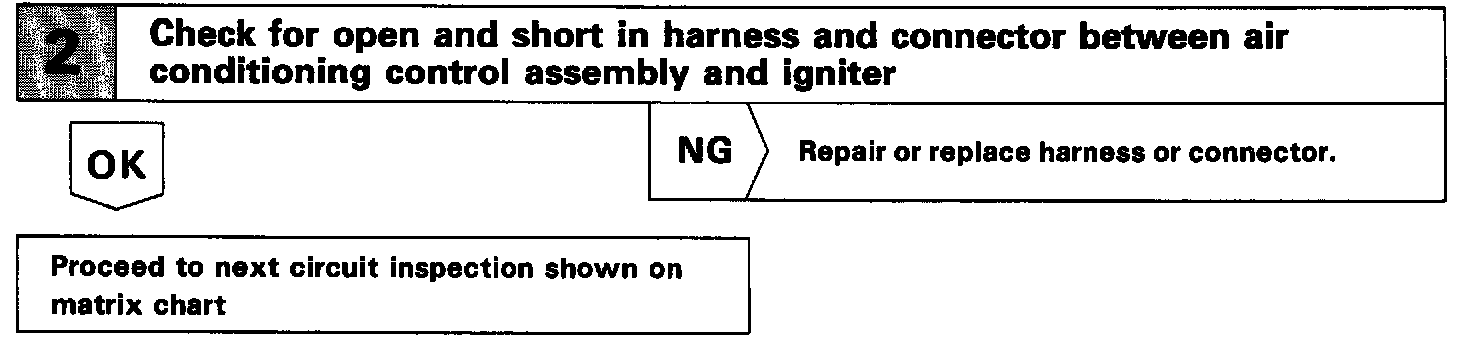

INSPECTION PROCEDURE
