IG Power Source Circuit

IG POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This is the power source for the air conditioning control assembly (contains the A/C control assembly) and servomotor, etc.

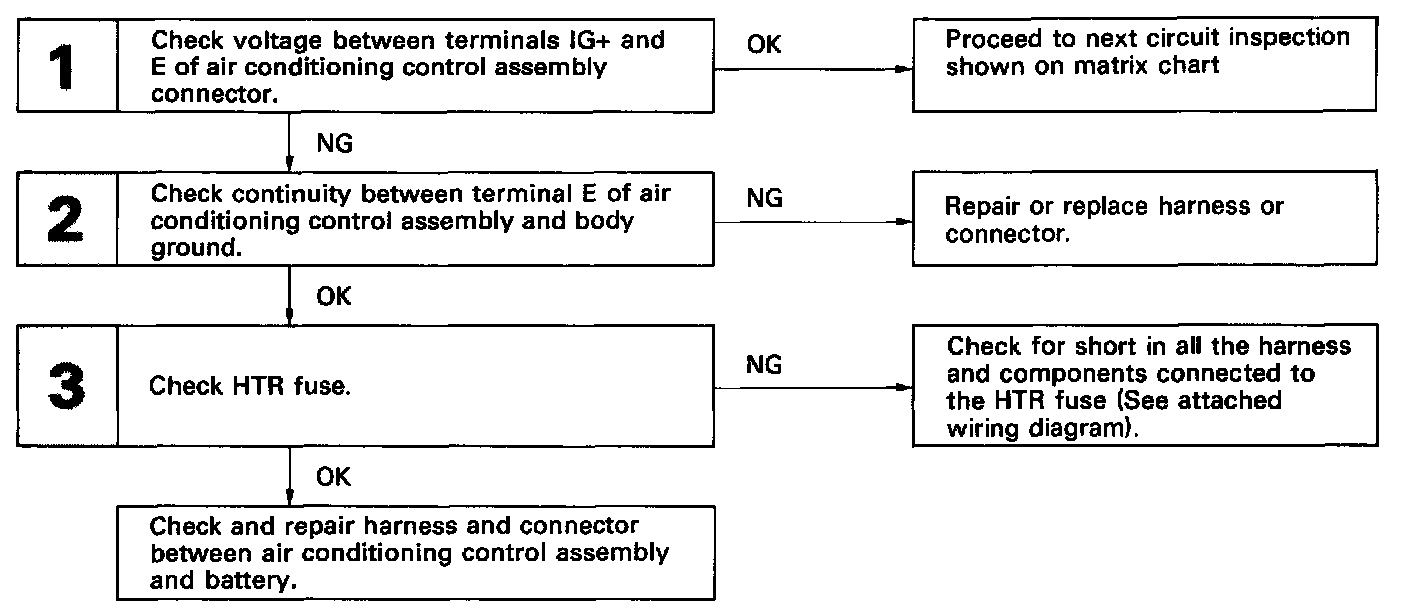

DIAGNOSTIC CHART

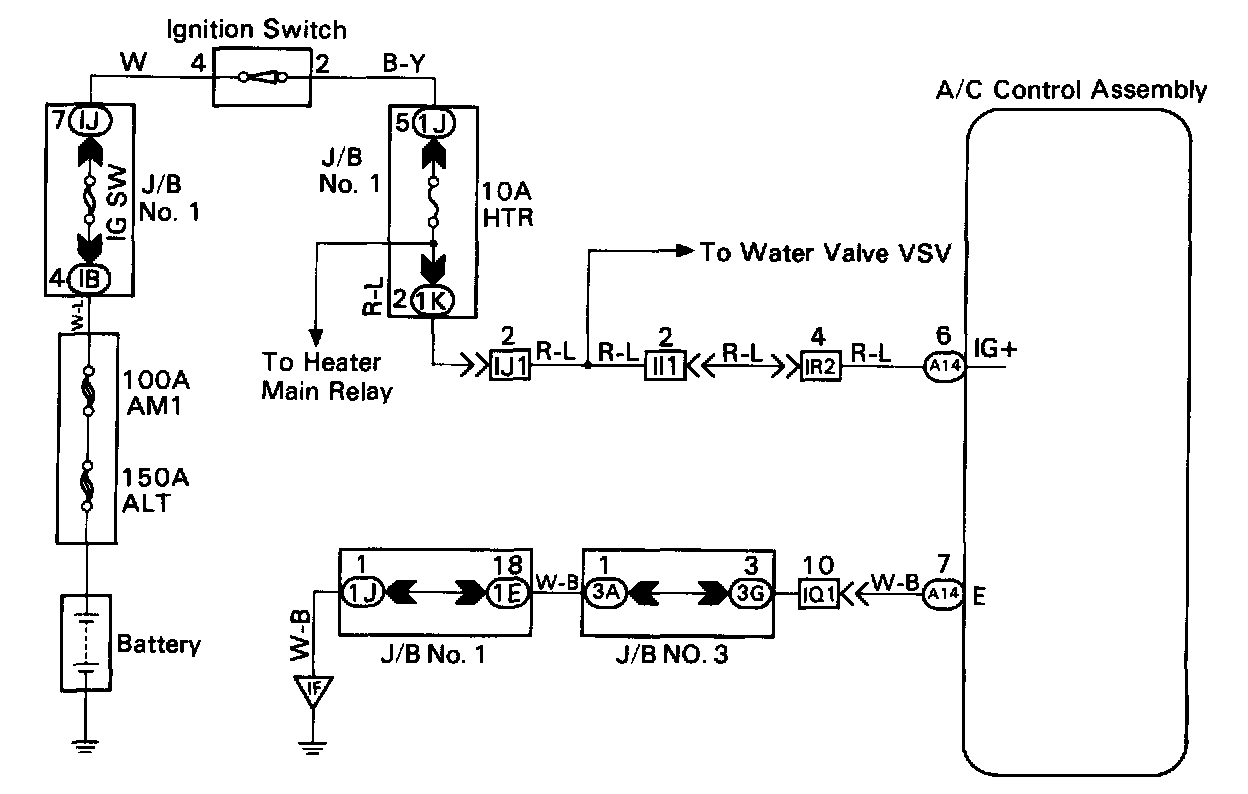

WIRING DIAGRAM

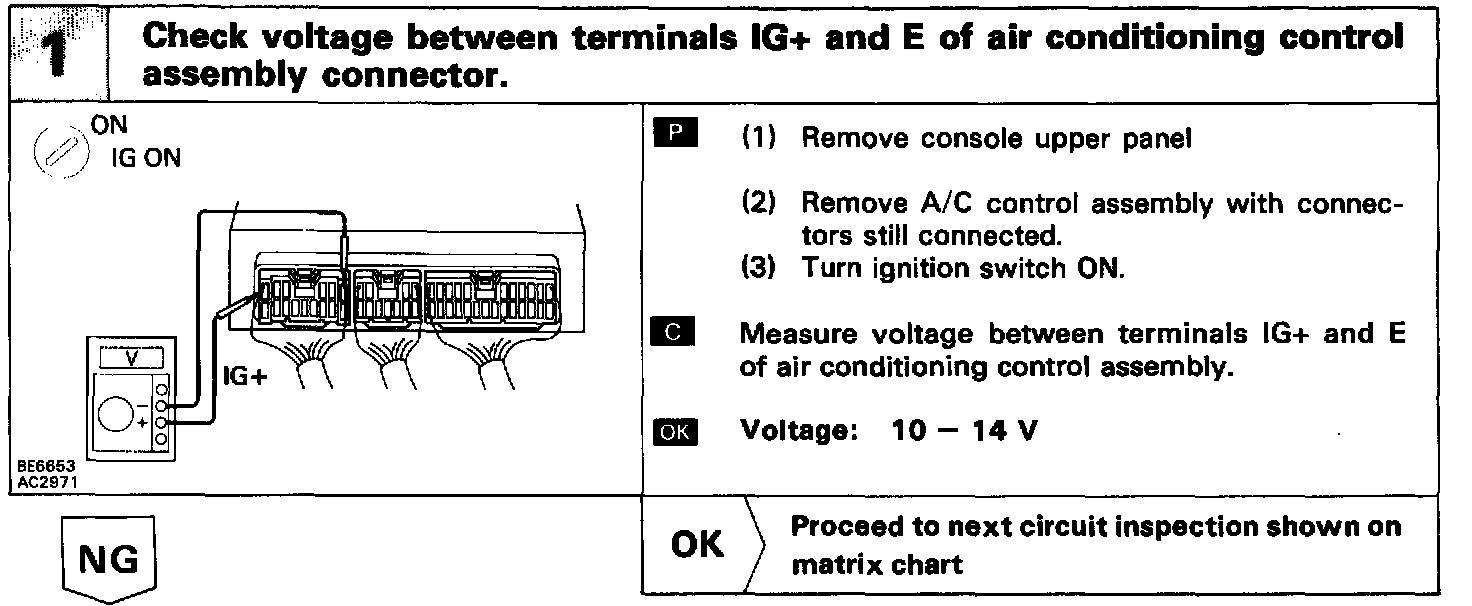

Step 1:

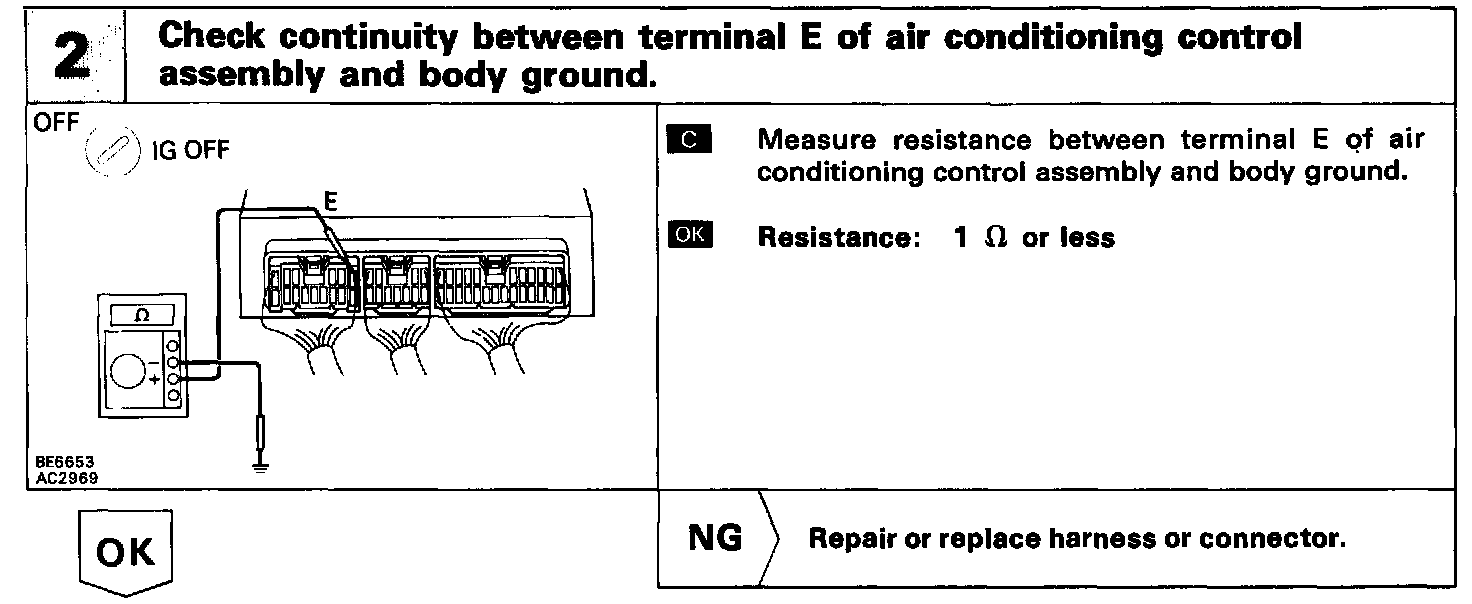

Step 2:

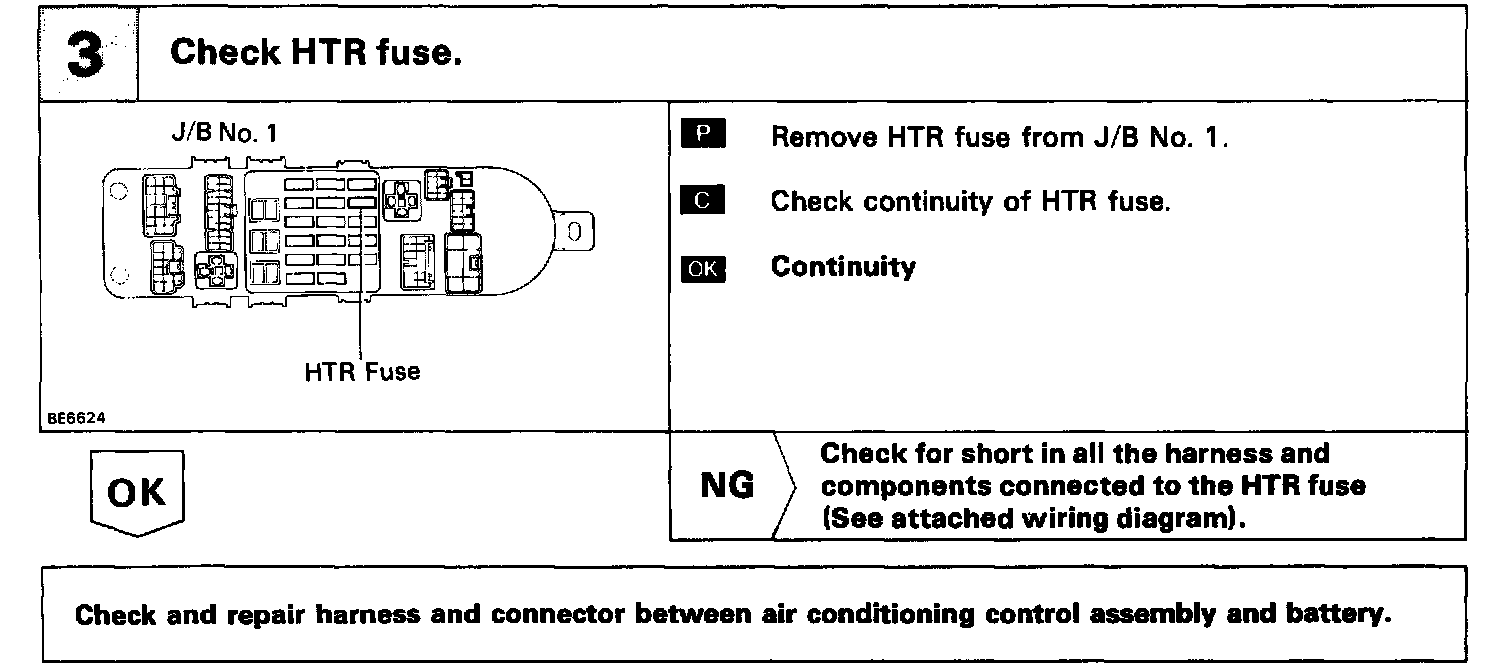

Step 3:

INSPECTION PROCEDURE
